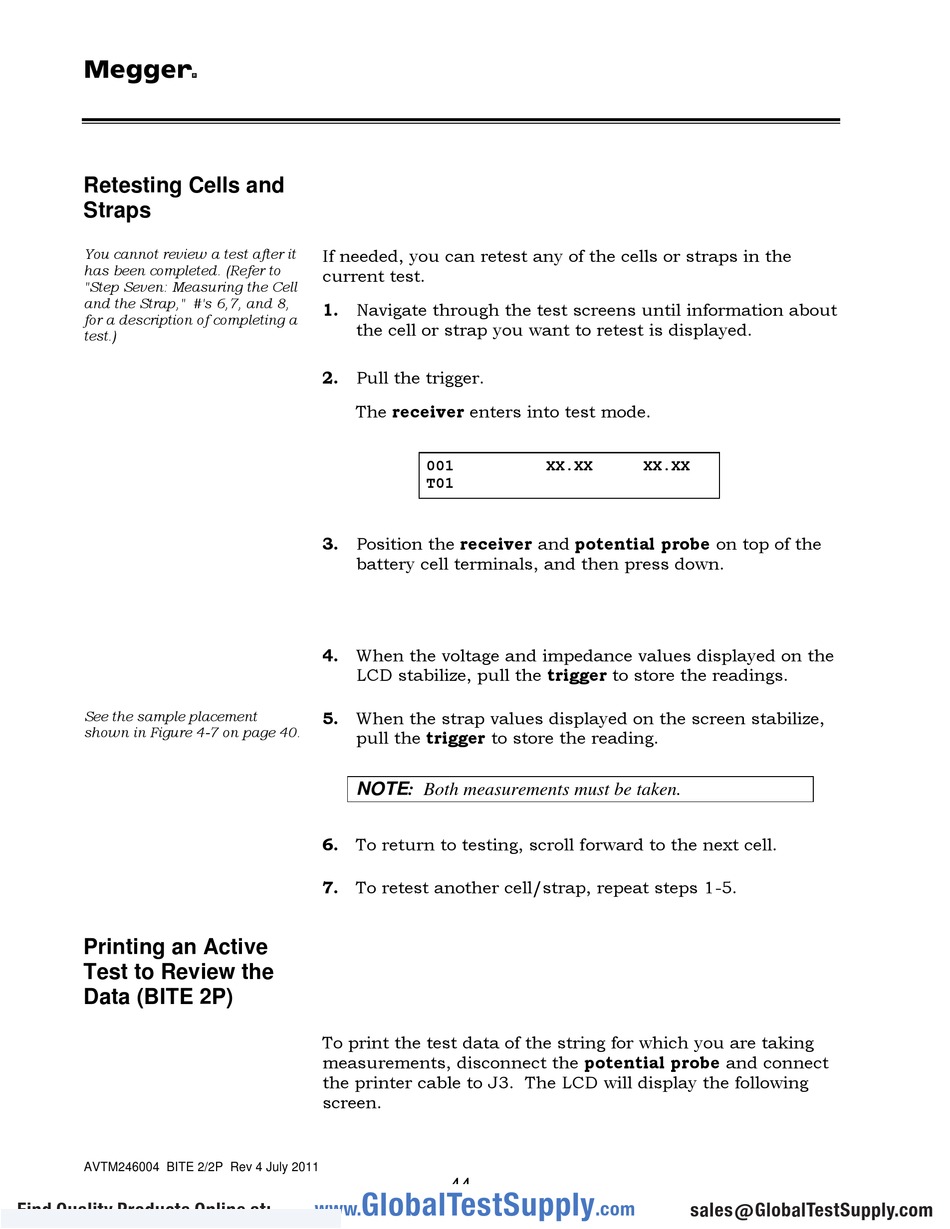

Retesting Cells and
Straps
You cannot review a test after it
has been completed. (Refer to
"Step Seven: Measuring the Cell
and the Strap," #'s 6,7, and 8,
for a description of completing a
test.)
See the sample placement
shown in Figure 4-7 on page 40.
Printing an Active
Test to Review the
Data (BITE 2P)
AVTM246004 BITE 2/2P Rev 4 July 2011
Find Quality Products Online at:
If needed, you can retest any of the cells or straps in the
current test.
1. Navigate through the test screens until information about
the cell or strap you want to retest is displayed.
2. Pull the trigger.
The receiver enters into test mode.
001
T01
3. Position the receiver and potential probe on top of the
battery cell terminals, and then press down.
4. When the voltage and impedance values displayed on the
LCD stabilize, pull the trigger to store the readings.
5. When the strap values displayed on the screen stabilize,
pull the trigger to store the reading.
NOTE: Both measurements must be taken.
6. To return to testing, scroll forward to the next cell.
7. To retest another cell/strap, repeat steps 1-5.
To print the test data of the string for which you are taking
measurements, disconnect the potential probe and connect
the printer cable to J3. The LCD will display the following
screen.
44
GlobalTestSupply
www.
XX.XX XX.XX
