The measurements are stored
in the receiver.
AVTM246004 BITE 2/2P Rev 4 July 2011
Find Quality Products Online at:
NOTE: The reason the receiver should be positioned on the
positive terminal is to obtain a positive float voltage of the cell.
Then a cell that has gone into "cell reversal" becomes very
evident when it displays a negative float voltage.
Current Source Lead
from Transmitter
connected to negative
terminal plate
Black

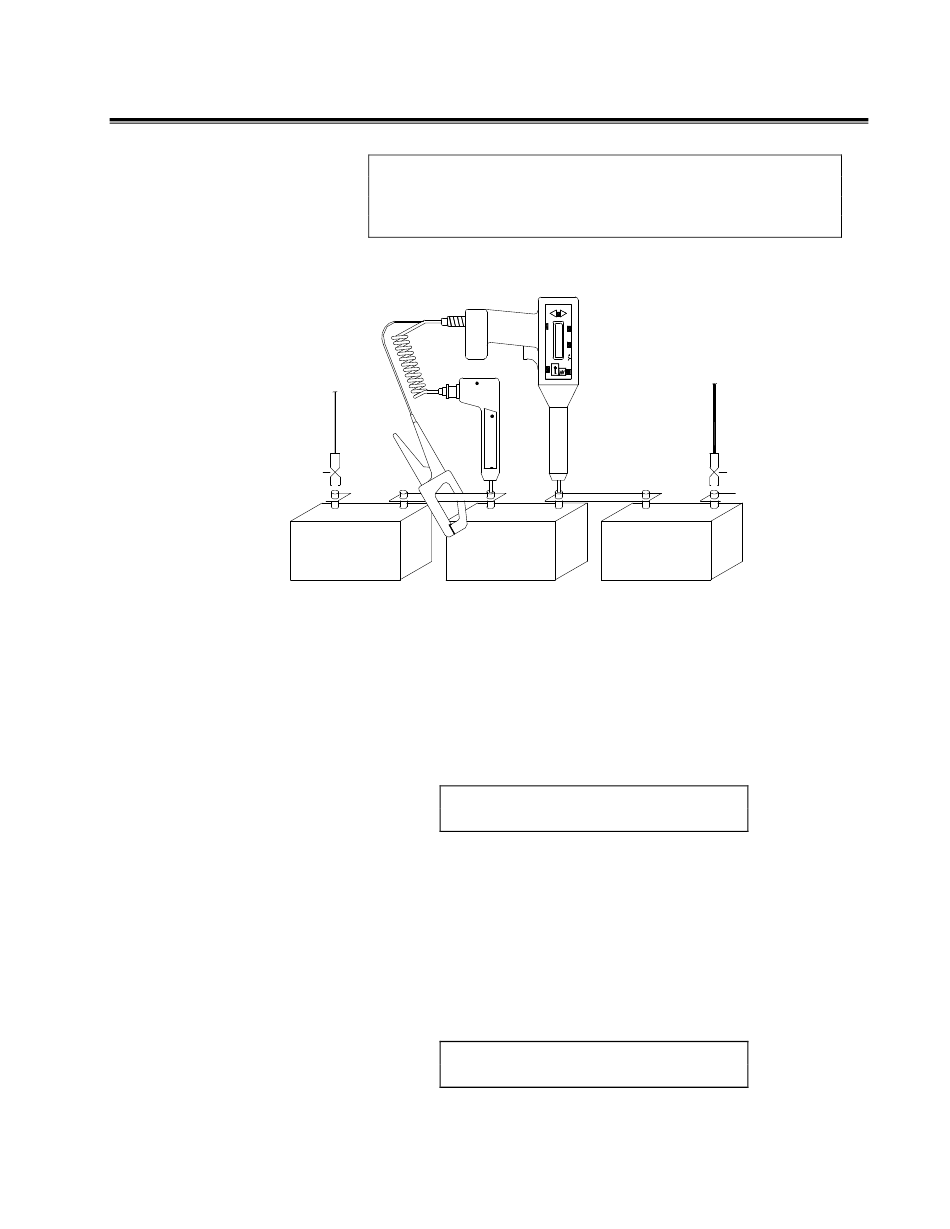

Figure 4-6: Receiver and potential probe positioned
on top of battery cell terminals
2. View the cell terminal voltage and ac impedance values
that are displayed on the receiver screen.
A sample screen is shown below.
3. When the voltage and impedance values displayed on the
screen stabilize, pull the trigger on the receiver to store
the reading.
If you have entered baseline, warn and fail values, the
screen will display either PASS, WARN or FAIL and a
percentage of baseline.
GlobalTestSupply
www.
STANDARD TEST PROCEDURE
CELL
VOLTS m
001
13.43
T01
001
T01
PASS
39
.com
Current Source Lead
from Transmitter
connected to positive
terminal plate
Red
23.33
XX%
