3.1 Easyloc Rx receiver

Features The Easyloc Rx receiver is distinguished by the following features:
• passive signal modes for locating lines without the Easyloc Tx transmitter
• active signal modes for locating lines / probes when used together with a
transmitter
• Automatic depth determination when used together with a transmitter (not
available for Easyloc Basic)
• Semi-automatic depth estimation in passive signal modes (not available for
Easyloc Basic)
• Sensitivity level can be adjusted automatically or manually
• Lighted display for use in dim environments

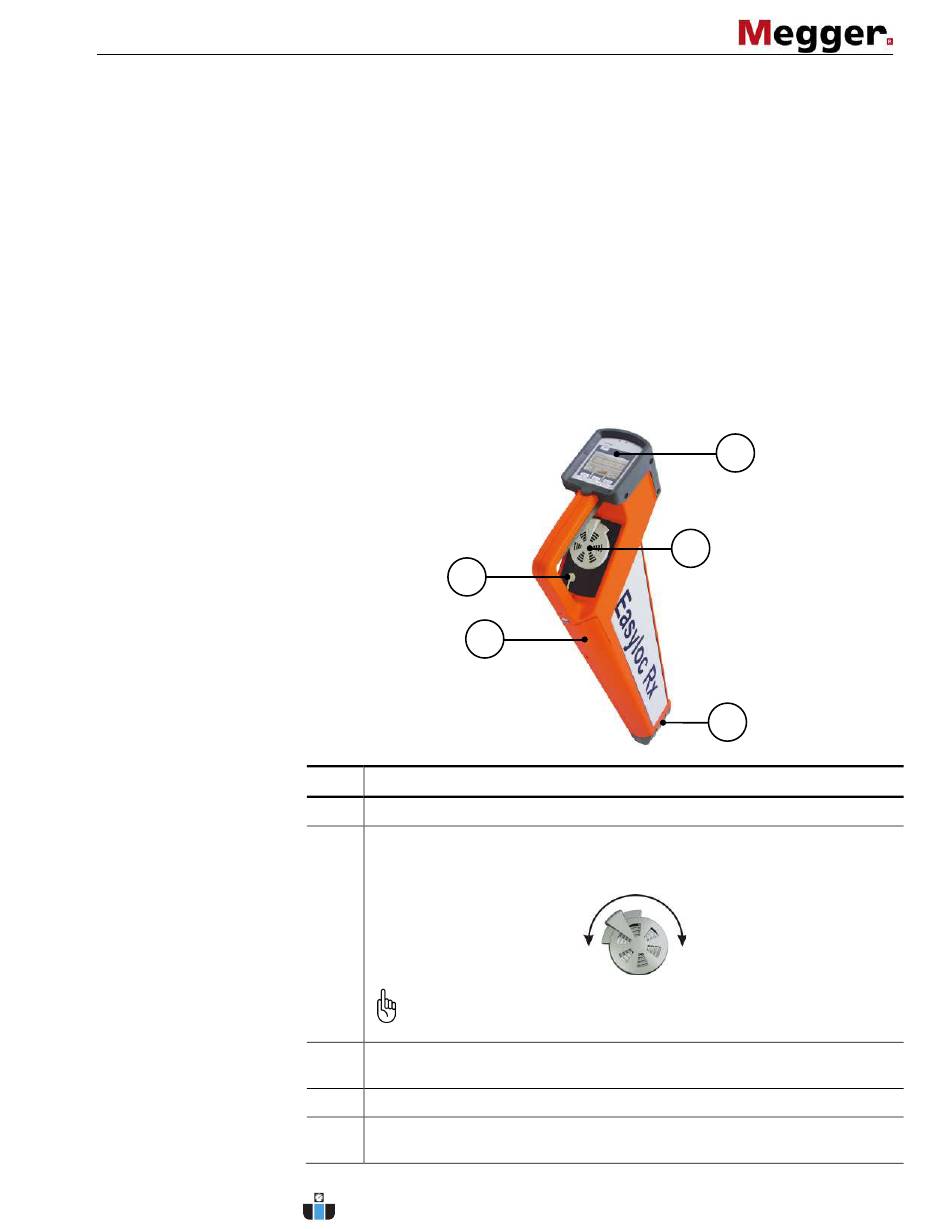

The following illustration shows the components of the Easyloc Rx receiver:
receiver
Item
1 Control panel with display (see page 3-12)
2 Speaker with volume control
The speaker plays back various acoustic signals (e.g. beeps with
modulating pitch relative to the signal strength).
When the receiver is switched on, the volume is set at a standard level.
The receiver will only start with the volume at a different level if the
volume has been manually increased before switching off the receiver.
3 Headphone jack
To connect headphones with a 3.5 mm plug connector.
4 Battery compartment
5 Floor cap
This replaceable floor cap serves to protect the housing.
www.calcert.com
15
10 20
5 25
0 30
2
4
Description
Quieter
1
3
5
Louder
