NOTE: The receiver cannot be
operated while it is being
charged.

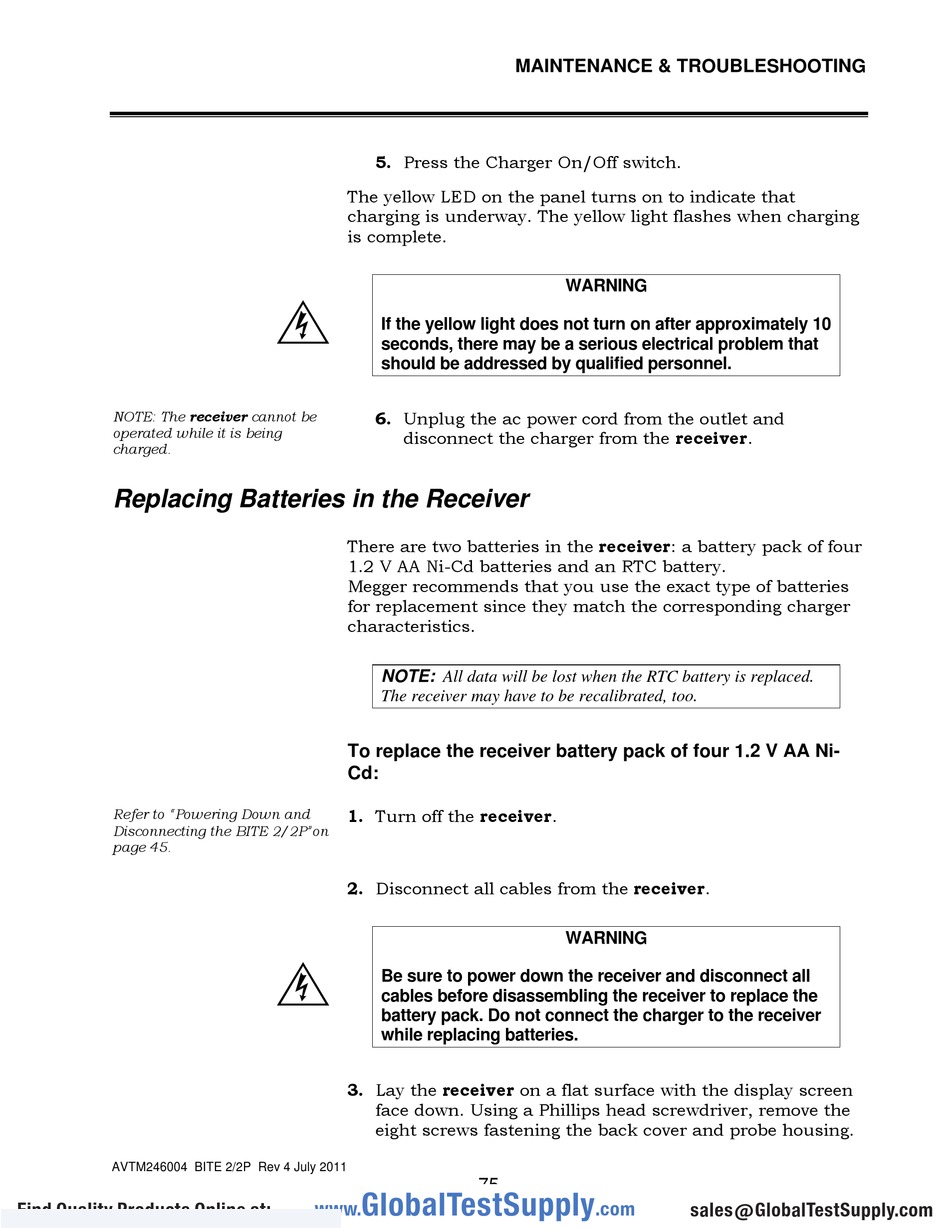

Replacing Batteries in the Receiver

Refer to "Powering Down and
Disconnecting the BITE 2/2P"on
page 45.
AVTM246004 BITE 2/2P Rev 4 July 2011
Find Quality Products Online at:
5. Press the Charger On/Off switch.
The yellow LED on the panel turns on to indicate that
charging is underway. The yellow light flashes when charging
is complete.
F
If the yellow light does not turn on after approximately 10
seconds, there may be a serious electrical problem that
should be addressed by qualified personnel.
6. Unplug the ac power cord from the outlet and
disconnect the charger from the receiver.
There are two batteries in the receiver: a battery pack of four
1.2 V AA Ni-Cd batteries and an RTC battery.
Megger recommends that you use the exact type of batteries
for replacement since they match the corresponding charger
characteristics.
NOTE: All data will be lost when the RTC battery is replaced.
The receiver may have to be recalibrated, too.
To replace the receiver battery pack of four 1.2 V AA Ni-
Cd:
1. Turn off the receiver.
2. Disconnect all cables from the receiver.
F
Be sure to power down the receiver and disconnect all
cables before disassembling the receiver to replace the
battery pack. Do not connect the charger to the receiver
while replacing batteries.
3. Lay the receiver on a flat surface with the display screen
face down. Using a Phillips head screwdriver, remove the
eight screws fastening the back cover and probe housing.
GlobalTestSupply
www.
MAINTENANCE & TROUBLESHOOTING
WARNING
WARNING
75
