Bite 2 Transmitter; Figure 3-1: Bite 2 Transmitter - Megger BITE 2 Instruction Manual

M

BITE 2 Transmitter

Receiver Charger On/Off Indicator
Receiver Charger On/Off Indicator
AVTM246004 BITE 2/2P Rev 4 July 2011
Find Quality Products Online at:

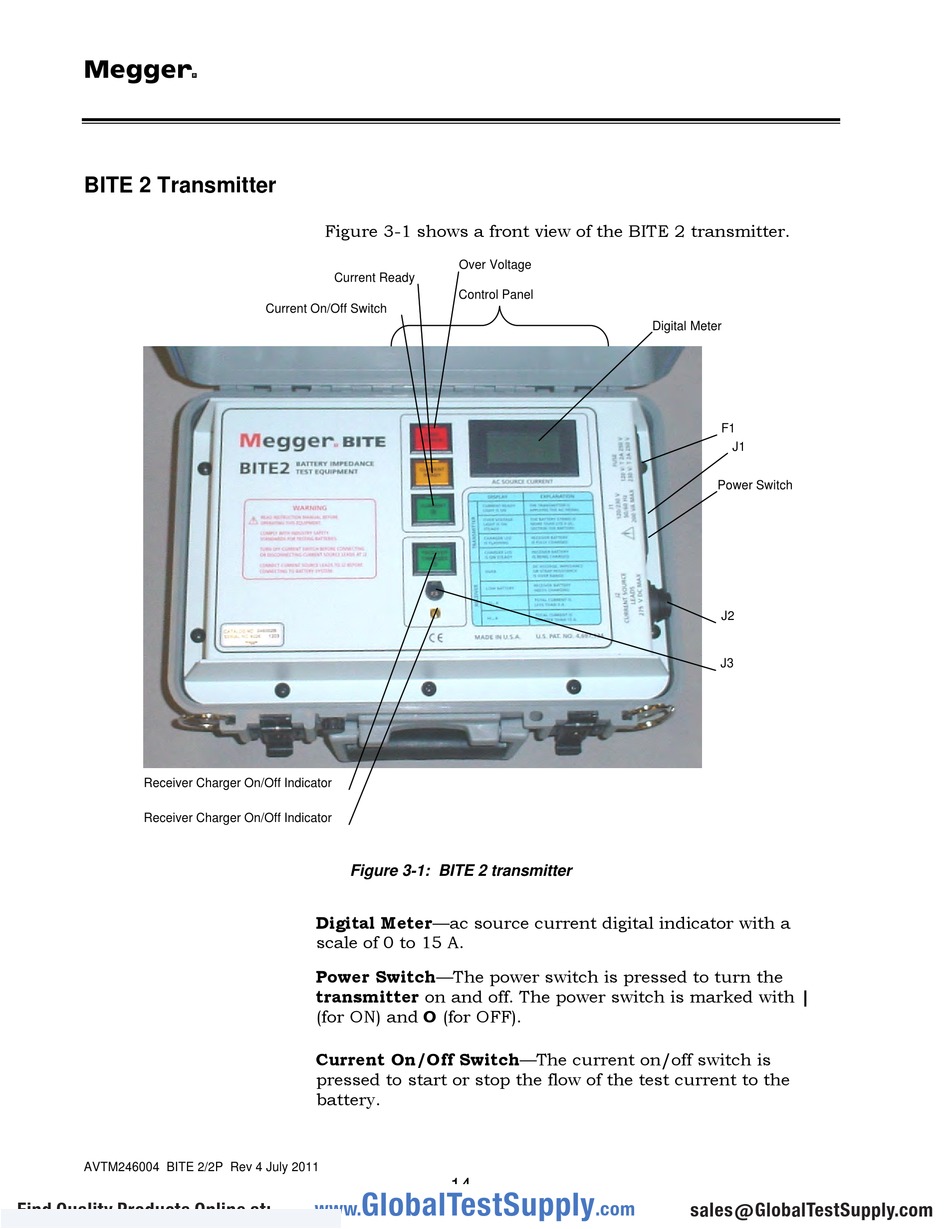

Figure 3-1 shows a front view of the BITE 2 transmitter.
Current Ready
Current On/Off Switch

Figure 3-1: BITE 2 transmitter

Digital Meter—ac source current digital indicator with a
scale of 0 to 15 A.
Power Switch—The power switch is pressed to turn the
transmitter on and off. The power switch is marked with |
(for ON) and O (for OFF).
Current On/Off Switch—The current on/off switch is
pressed to start or stop the flow of the test current to the
battery.
