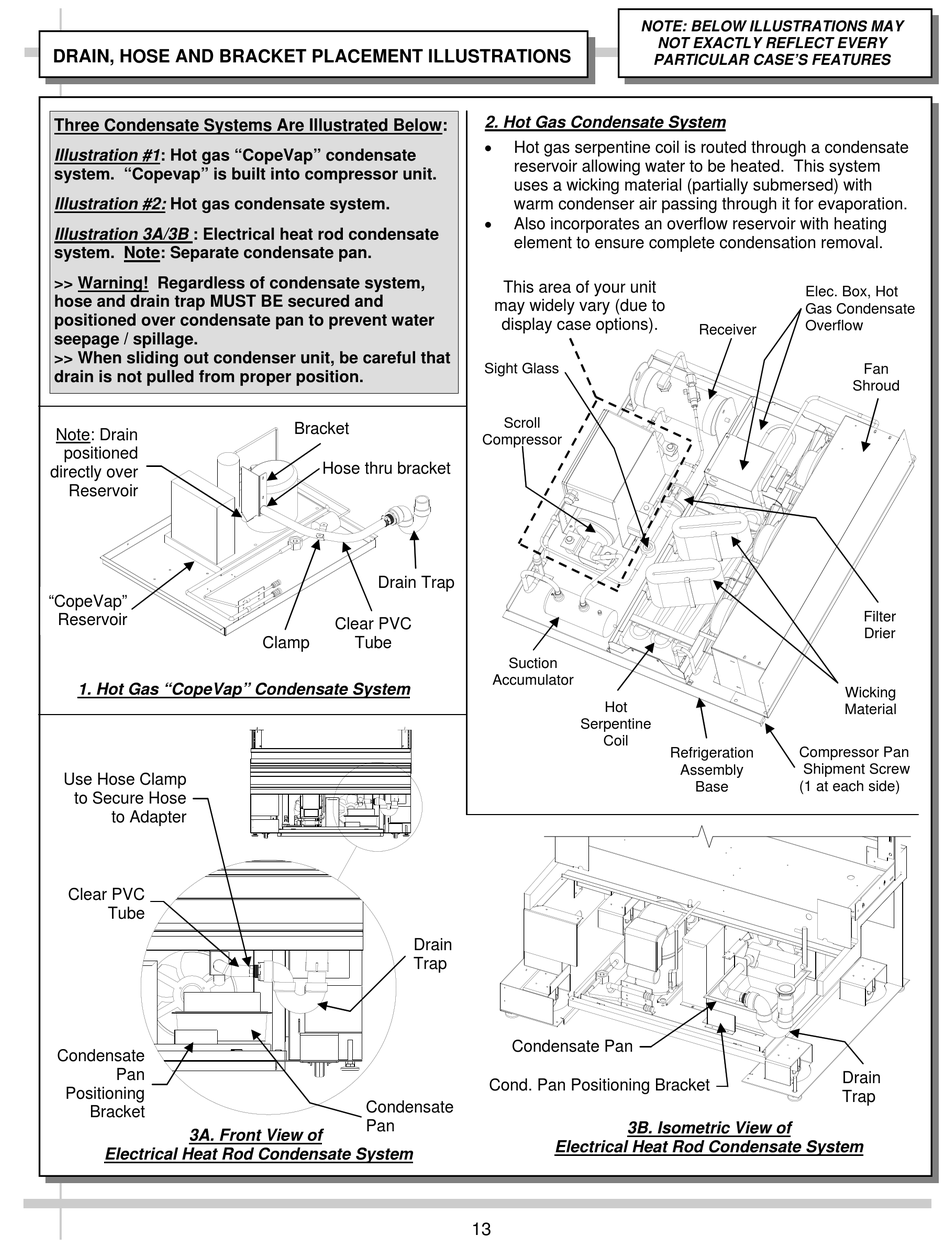

DRAIN, HOSE AND BRACKET PLACEMENT ILLUSTRATIONS
Three Condensate Systems Are Illustrated Below:
Illustration #1: Hot gas "CopeVap" condensate
system. "Copevap" is built into compressor unit.
Illustration #2: Hot gas condensate system.
Illustration 3A/3B : Electrical heat rod condensate
system. Note: Separate condensate pan.
>> Warning! Regardless of condensate system,
hose and drain trap MUST BE secured and
positioned over condensate pan to prevent water
seepage / spillage.
>> When sliding out condenser unit, be careful that
drain is not pulled from proper position.
Note: Drain
positioned
directly over
Reservoir
"CopeVap"
Reservoir
1. Hot Gas "CopeVap" Condensate System
Use Hose Clamp
to Secure Hose
to Adapter
Clear PVC
Tube
Condensate
Pan
Positioning
Bracket
3A. Front View of
Electrical Heat Rod Condensate System
Bracket
Hose thru bracket
Drain Trap
Clear PVC
Clamp Tube
Drain
Trap
Condensate
Pan
NOTE: BELOW ILLUSTRATIONS MAY
2. Hot Gas Condensate System

Hot gas serpentine coil is routed through a condensate
reservoir allowing water to be heated. This system
uses a wicking material (partially submersed) with
warm condenser air passing through it for evaporation.

Also incorporates an overflow reservoir with heating
element to ensure complete condensation removal.
This area of your unit
may widely vary (due to
display case options).
Sight Glass
Scroll
Compressor
Suction
Accumulator
Hot
Serpentine
Coil
Condensate Pan
Cond. Pan Positioning Bracket
3B. Isometric View of
Electrical Heat Rod Condensate System
13
NOT EXACTLY REFLECT EVERY
PARTICULAR CASE'S FEATURES
Elec. Box, Hot
Gas Condensate
Overflow
Receiver
Refrigeration Compressor Pan
Shipment Screw
Assembly
(1 at each side)
Base
Fan
Shroud
Filter
Drier
Wicking
Material
Drain
Trap
