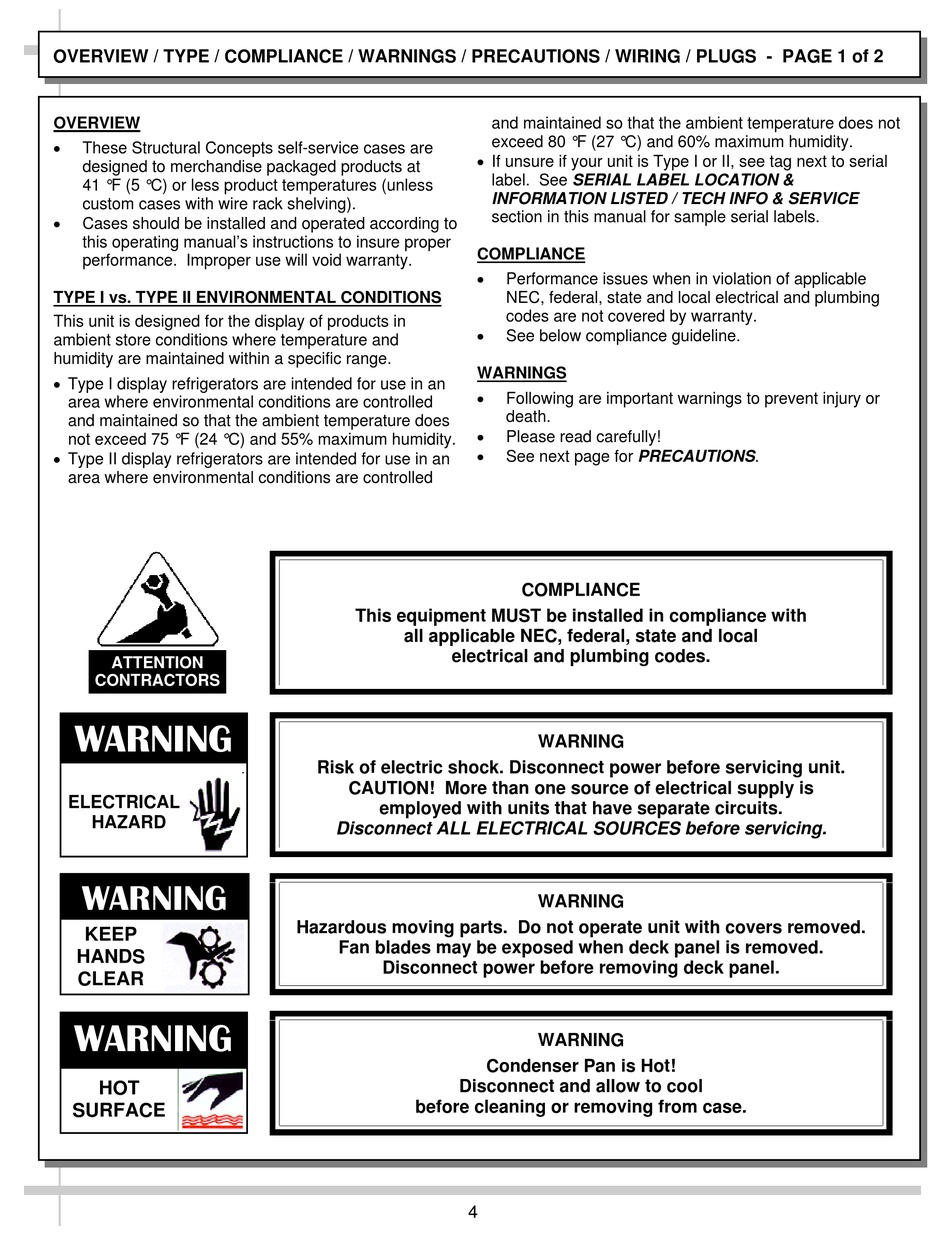

OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / PLUGS - PAGE 1 of 2
OVERVIEW

These Structural Concepts self-service cases are
designed to merchandise packaged products at
41 °F (5 °C) or less product temperatures (unless
custom cases with wire rack shelving).

Cases should be installed and operated according to
this operating manual's instructions to insure proper
performance. Improper use will void warranty.
TYPE I vs. TYPE II ENVIRONMENTAL CONDITIONS
This unit is designed for the display of products in
ambient store conditions where temperature and
humidity are maintained within a specific range.
 Type I display refrigerators are intended for use in an
area where environmental conditions are controlled
and maintained so that the ambient temperature does
not exceed 75 °F (24 °C) and 55% maximum humidity.
 Type II display refrigerators are intended for use in an
area where environmental conditions are controlled
ATTENTION
CONTRACTORS
WARNING
ELECTRICAL
HAZARD
WARNING
KEEP
HANDS
CLEAR
WARNING
HOT
SURFACE
This equipment MUST be installed in compliance with
all applicable NEC, federal, state and local
electrical and plumbing codes.
Risk of electric shock. Disconnect power before servicing unit.
CAUTION! More than one source of electrical supply is
employed with units that have separate circuits.
Disconnect ALL ELECTRICAL SOURCES before servicing.
Hazardous moving parts. Do not operate unit with covers removed.
Fan blades may be exposed when deck panel is removed.
Disconnect power before removing deck panel.
Disconnect and allow to cool
before cleaning or removing from case.
4
and maintained so that the ambient temperature does not
exceed 80 °F (27 °C) and 60% maximum humidity.
 If unsure if your unit is Type I or II, see tag next to serial
label. See SERIAL LABEL LOCATION &
INFORMATION LISTED / TECH INFO & SERVICE
section in this manual for sample serial labels.
COMPLIANCE

Performance issues when in violation of applicable
NEC, federal, state and local electrical and plumbing
codes are not covered by warranty.

See below compliance guideline.
WARNINGS

Following are important warnings to prevent injury or
death.

Please read carefully!

See next page for PRECAUTIONS.
COMPLIANCE
WARNING
WARNING
WARNING
Condenser Pan is Hot!
