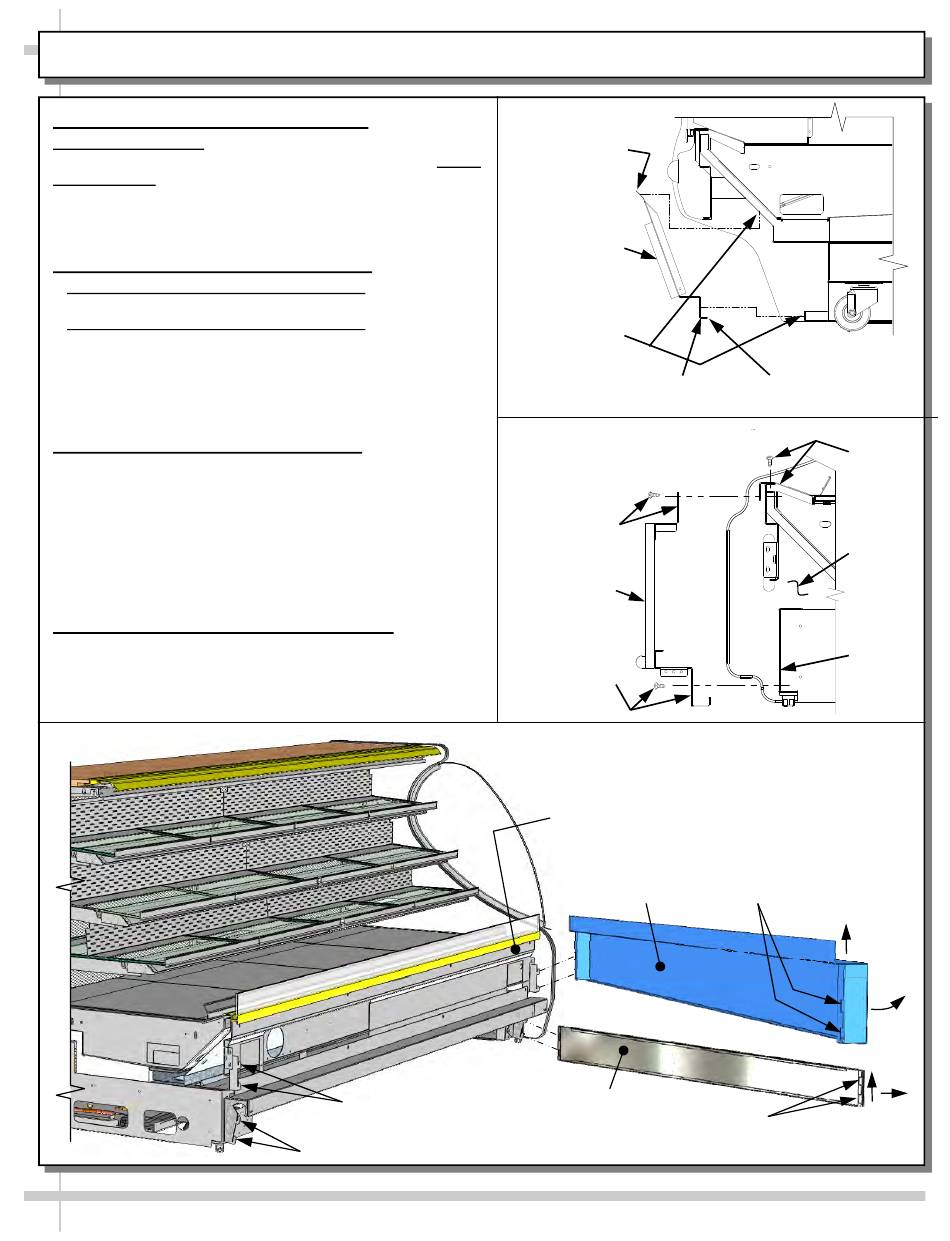

INSTALLATION: LOWER FRONT PANEL REMOVAL (ANGLED vs. VERTICAL / SCREW vs. SLOT)

3A. Angled Lower Front Panels (Screws)
Upper Panel Support:
>> Remove screws located behind upper front panel. Lower
Panel Support:
>> For most applications, screws secure the lower panel
support (located below front panel) to the unit.
>> See illustration at top-right.
3B. Vertical Lower Front Panels (Screws)
> Front Panel Upper Support (With Screws): Remove caps
& screws holding deck support in place.
> Front Panel Lower Support (With Screws): For most
cases, screws secure the front panel lower support to base.
>> Remove screws holding front panel lower support to
display case base.
>> Vertical lower front panel can now be removed.
>> See illustration at mid-right).
3C. Front Panel Removal / Replacement
>> No screw removal is required for removing front panel.
>> Raise front panel up (lifting slots off hooks) inside front
panel support bracket and pivot outward to free slots from
front panel hooks. Lower front panel downward and out,
away from case.
>> Place panel in secure location while performing cleaning
or service.
>> Return front panel in reverse order it was removed.
3D. Lower Toe-Kick Removal / Replacement
>> No screw removal is required to removed lower toe-kick.
>> Simply lift lower front panel slots up and off case hooks.
>> Place panel in secure location while performing cleaning
or service. Replace in reverse order it was removed.
Front Panel Hooks (Typ.)
Lower Toe-Kick Hooks
7
Upper Panel
Support
Angled
Lower Front
Panel
Remove
screws.
Lift out.
*Apply Upward Pressure
3A
3B
Front Panel
Upper Support
Vertical Lower
Front Panel
Front Panel
Lower Support
Front Panel
Support Bracket
3C
Front Panel
Lower Toe-Kick
Lower Panel
Support
Deck
Support
Typical
Side
Panel
Display
Case
Base
Slots (Typ.)
Slots (Typ.)
3D
