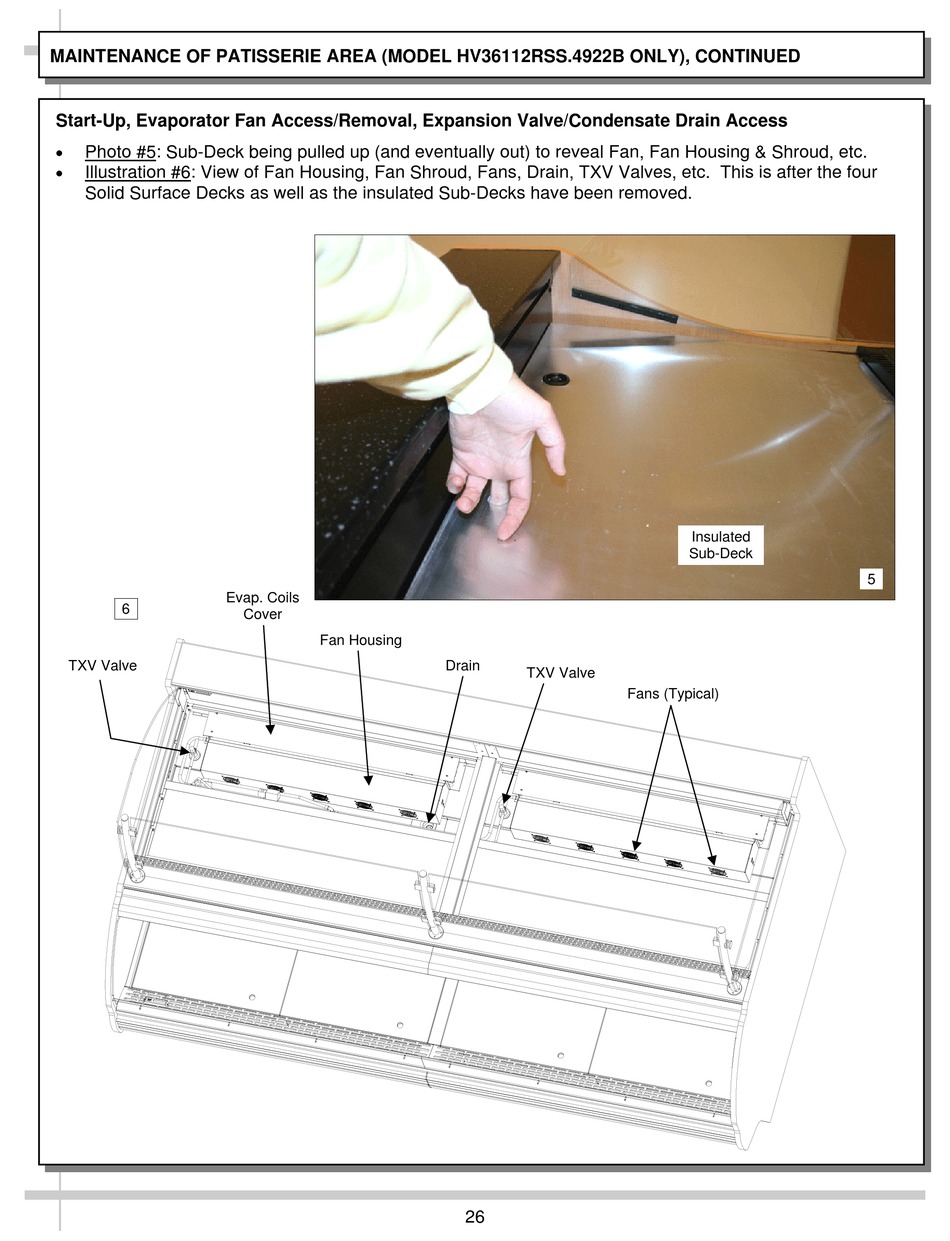

MAINTENANCE OF PATISSERIE AREA (MODEL HV36112RSS.4922B ONLY), CONTINUED
Start-Up, Evaporator Fan Access/Removal, Expansion Valve/Condensate Drain Access
Photo #5: Sub-Deck being pulled up (and eventually out) to reveal Fan, Fan Housing & Shroud, etc.
Illustration #6: View of Fan Housing, Fan Shroud, Fans, Drain, TXV Valves, etc. This is after the four
Solid Surface Decks as well as the insulated Sub-Decks have been removed.
Evap. Coils
6
TXV Valve
Cover
Fan Housing
Drain
TXV Valve
26
Insulated
Sub-Deck
Fans (Typical)
5
