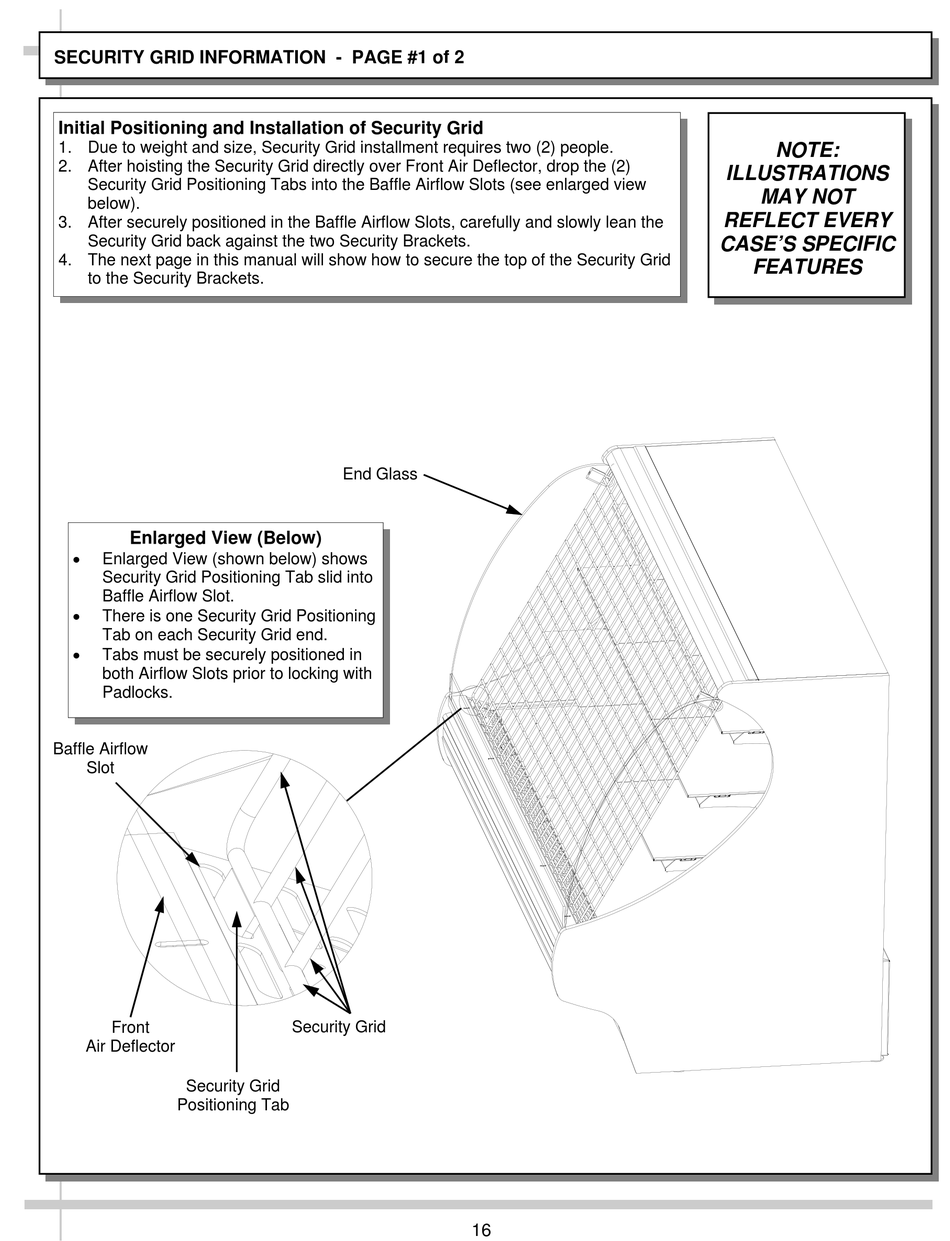

SECURITY GRID INFORMATION - PAGE #1 of 2
Initial Positioning and Installation of Security Grid
1. Due to weight and size, Security Grid installment requires two (2) people.
2. After hoisting the Security Grid directly over Front Air Deflector, drop the (2)
Security Grid Positioning Tabs into the Baffle Airflow Slots (see enlarged view
below).
3. After securely positioned in the Baffle Airflow Slots, carefully and slowly lean the
Security Grid back against the two Security Brackets.
4. The next page in this manual will show how to secure the top of the Security Grid
to the Security Brackets.
Enlarged View (Below)
Enlarged View (shown below) shows
Security Grid Positioning Tab slid into
Baffle Airflow Slot.
There is one Security Grid Positioning
Tab on each Security Grid end.
Tabs must be securely positioned in
both Airflow Slots prior to locking with
Padlocks.
Baffle Airflow
Slot
Front
Air Deflector
Security Grid
Positioning Tab
End Glass
Security Grid
16
NOTE:
ILLUSTRATIONS
MAY NOT
REFLECT EVERY
CASE'S SPECIFIC
FEATURES
