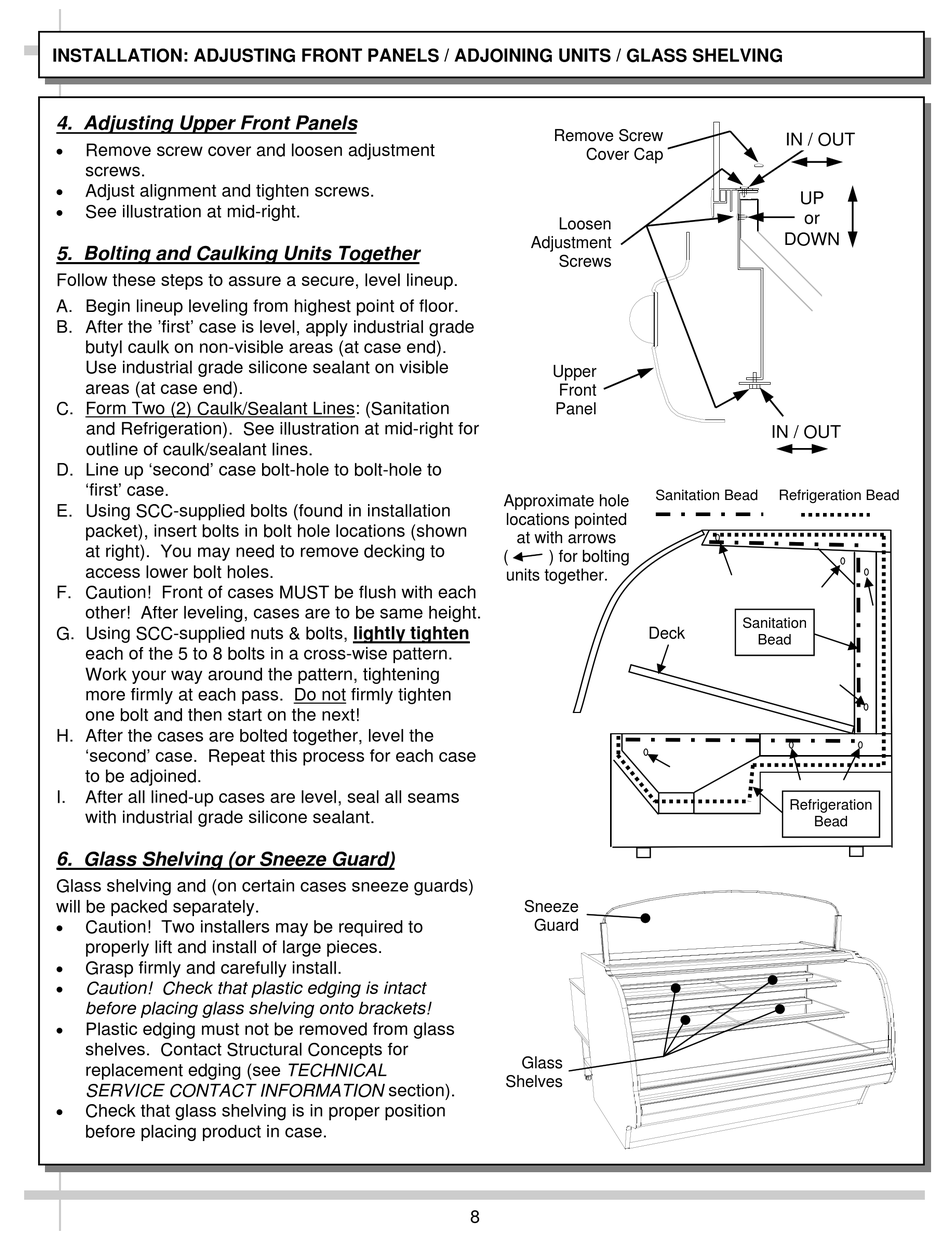

INSTALLATION: ADJUSTING FRONT PANELS / ADJOINING UNITS / GLASS SHELVING

4. Adjusting Upper Front Panels

Remove screw cover and loosen adjustment
screws.

Adjust alignment and tighten screws.

See illustration at mid-right.
5. Bolting and Caulking Units Together
Follow these steps to assure a secure, level lineup.
A. Begin lineup leveling from highest point of floor.
B. After the 'first' case is level, apply industrial grade
butyl caulk on non-visible areas (at case end).
Use industrial grade silicone sealant on visible
areas (at case end).
C. Form Two (2) Caulk/Sealant Lines: (Sanitation
and Refrigeration). See illustration at mid-right for
outline of caulk/sealant lines.
D. Line up 'second' case bolt-hole to bolt-hole to
'first' case.
E. Using SCC-supplied bolts (found in installation
packet), insert bolts in bolt hole locations (shown
at right). You may need to remove decking to
access lower bolt holes.
F. Caution! Front of cases MUST be flush with each
other! After leveling, cases are to be same height.
G. Using SCC-supplied nuts & bolts, lightly tighten
each of the 5 to 8 bolts in a cross-wise pattern.
Work your way around the pattern, tightening
more firmly at each pass. Do not firmly tighten
one bolt and then start on the next!
H. After the cases are bolted together, level the
'second' case. Repeat this process for each case
to be adjoined.
I. After all lined-up cases are level, seal all seams
with industrial grade silicone sealant.
6. Glass Shelving (or Sneeze Guard)
Glass shelving and (on certain cases sneeze guards)
will be packed separately.

Caution! Two installers may be required to
properly lift and install of large pieces.

Grasp firmly and carefully install.

Caution! Check that plastic edging is intact
before placing glass shelving onto brackets!

Plastic edging must not be removed from glass
shelves. Contact Structural Concepts for
replacement edging (see TECHNICAL
SERVICE CONTACT INFORMATION section).

Check that glass shelving is in proper position
before placing product in case.
Remove Screw
Cover Cap
Loosen
Adjustment
Screws
Upper
Front
Panel
Approximate hole
locations pointed
at with arrows
( ) for bolting
units together.
Deck
Sneeze
Guard
Glass
Shelves
8
IN / OUT
UP
or
DOWN
IN / OUT
Sanitation Bead Refrigeration Bead
Sanitation
Bead
Refrigeration
Bead
