MAINTENANCE FUNDAMENTALS - HOT GAS LOOP CONDENSATE UNITS (HV48RSS.5536, Etc.)
Hot Gas Loop Condensate Units (Model
HV48RSS.5536, etc.)
System Operation
Hot gas loop condensate systems utilize a hot
gas serpentine coil that is routed through a
condensate reservoir allowing water to be
heated.
This system may operate in conjunction with a
wicking material that is partially submersed with
warm condenser air passing through it for
evaporation.
Condenser Coils Fan & Housing
Embraco®
Compressor Start
Components
Embraco®
Compressor
Sight Glass
Receiver

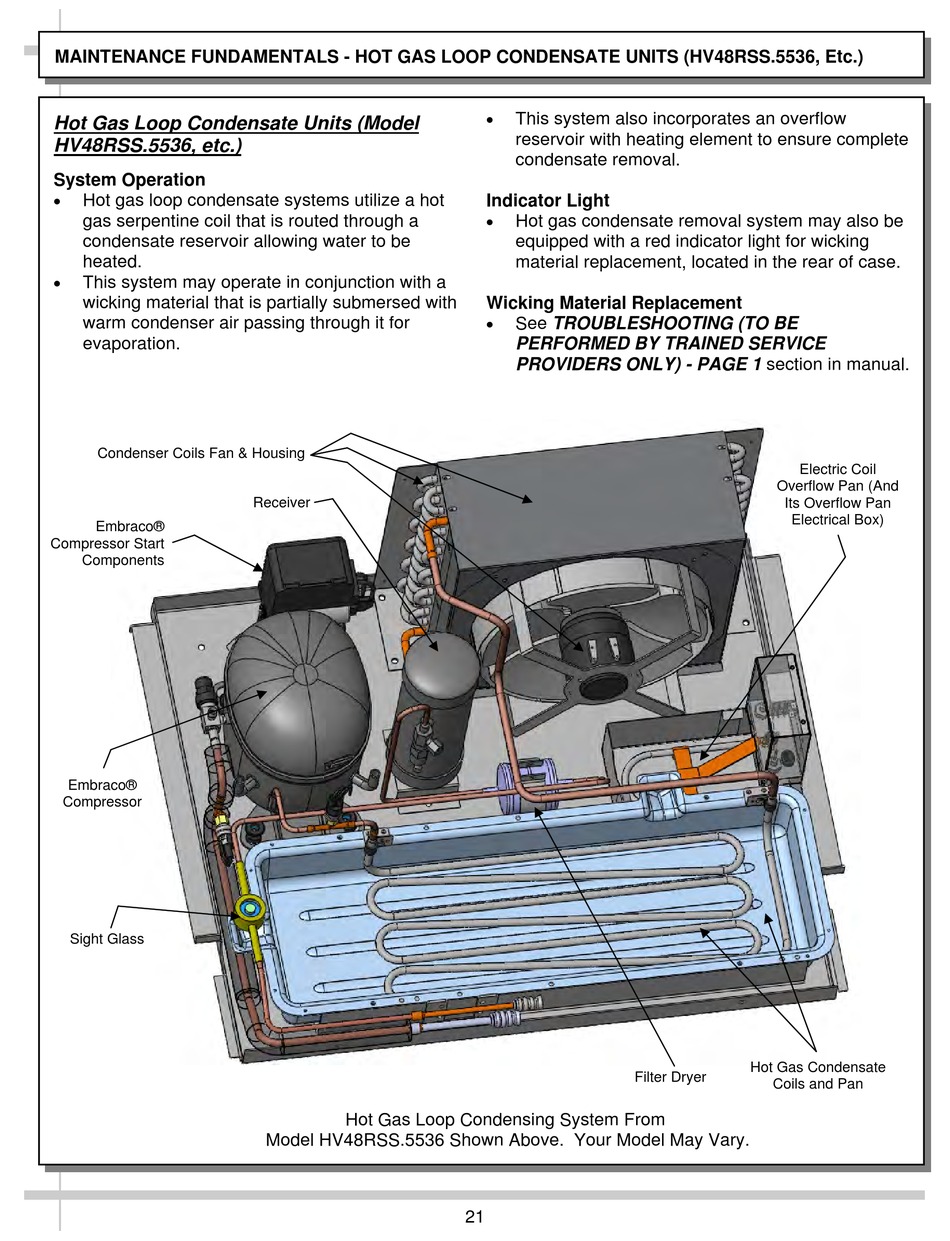

Hot Gas Loop Condensing System From
Model HV48RSS.5536 Shown Above. Your Model May Vary.
This system also incorporates an overflow
reservoir with heating element to ensure complete
condensate removal.
Indicator Light
Hot gas condensate removal system may also be
equipped with a red indicator light for wicking
material replacement, located in the rear of case.
Wicking Material Replacement
See TROUBLESHOOTING (TO BE
PERFORMED BY TRAINED SERVICE
PROVIDERS ONLY) - PAGE 1 section in manual.
Filter Dryer
21
Electric Coil
Overflow Pan (And
Its Overflow Pan
Electrical Box)
Hot Gas Condensate
Coils and Pan
