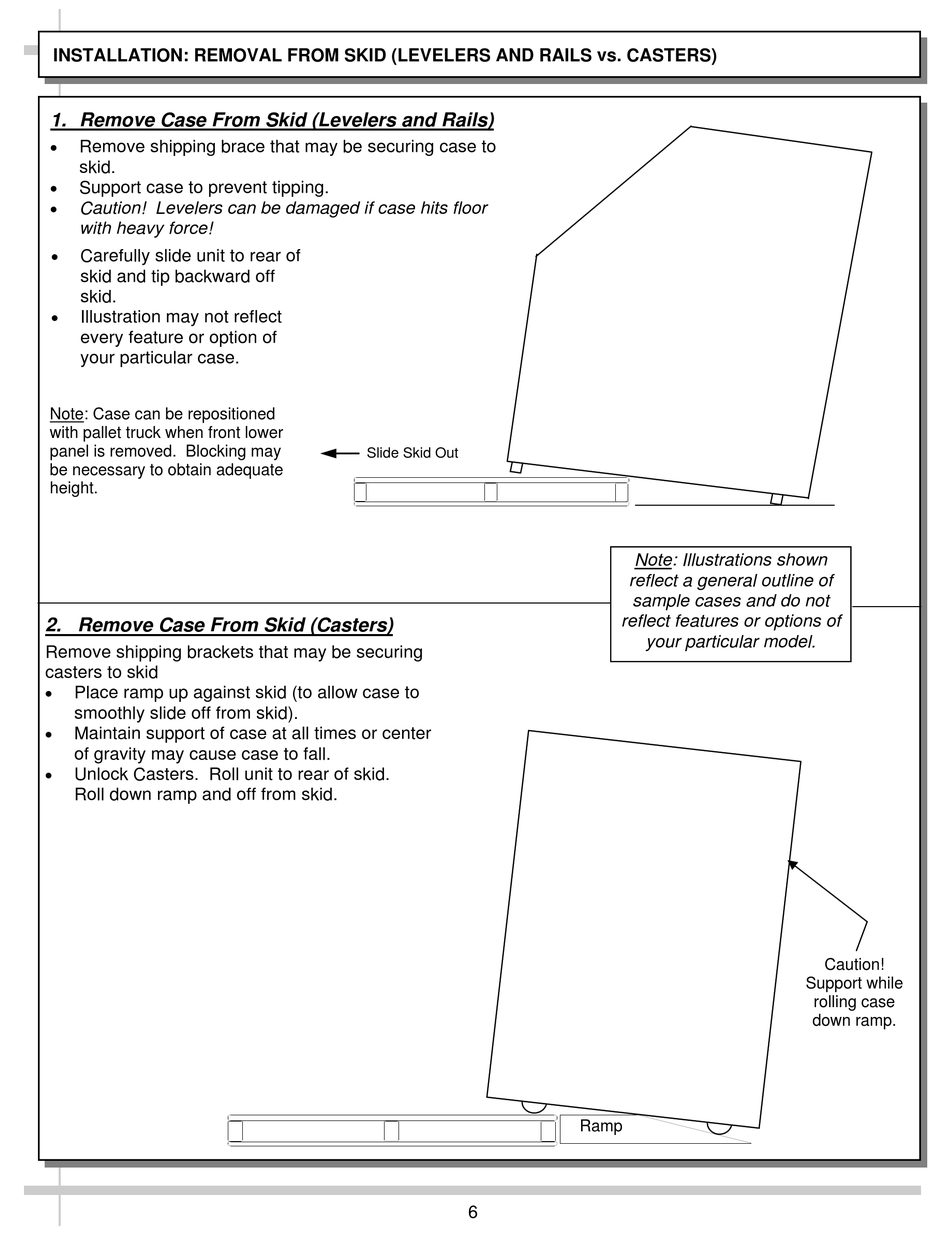

INSTALLATION: REMOVAL FROM SKID (LEVELERS AND RAILS vs. CASTERS)
1. Remove Case From Skid (Levelers and Rails)
Remove shipping brace that may be securing case to
skid.
Support case to prevent tipping.
Caution! Levelers can be damaged if case hits floor
with heavy force!
Carefully slide unit to rear of
skid and tip backward off
skid.
Illustration may not reflect
every feature or option of
your particular case.
Note: Case can be repositioned
with pallet truck when front lower
panel is removed. Blocking may
be necessary to obtain adequate
height.
2. Remove Case From Skid (Casters)
Remove shipping brackets that may be securing
casters to skid
Place ramp up against skid (to allow case to
smoothly slide off from skid).
Maintain support of case at all times or center
of gravity may cause case to fall.
Unlock Casters. Roll unit to rear of skid.
Roll down ramp and off from skid.
Slide Skid Out
6
Note: Illustrations shown
reflect a general outline of
sample cases and do not
reflect features or options of
your particular model.
Ramp
Caution!
Support while
rolling case
down ramp.
