Function
Name
code
Jumping
P08.09
frequency 1
Jumping
P08.10 frequency
range 1
Jumping
P08.11
frequency 2
Jumping
P08.12 frequency
range 2
Jumping
P08.13
frequency 3
Jumping
P08.14 frequency
range 3
Traverse
P08.15
range
Sudden
jumping
P08.16
frequency
range
Traverse
P08.17
boost time
Traverse
P08.18 declining
time

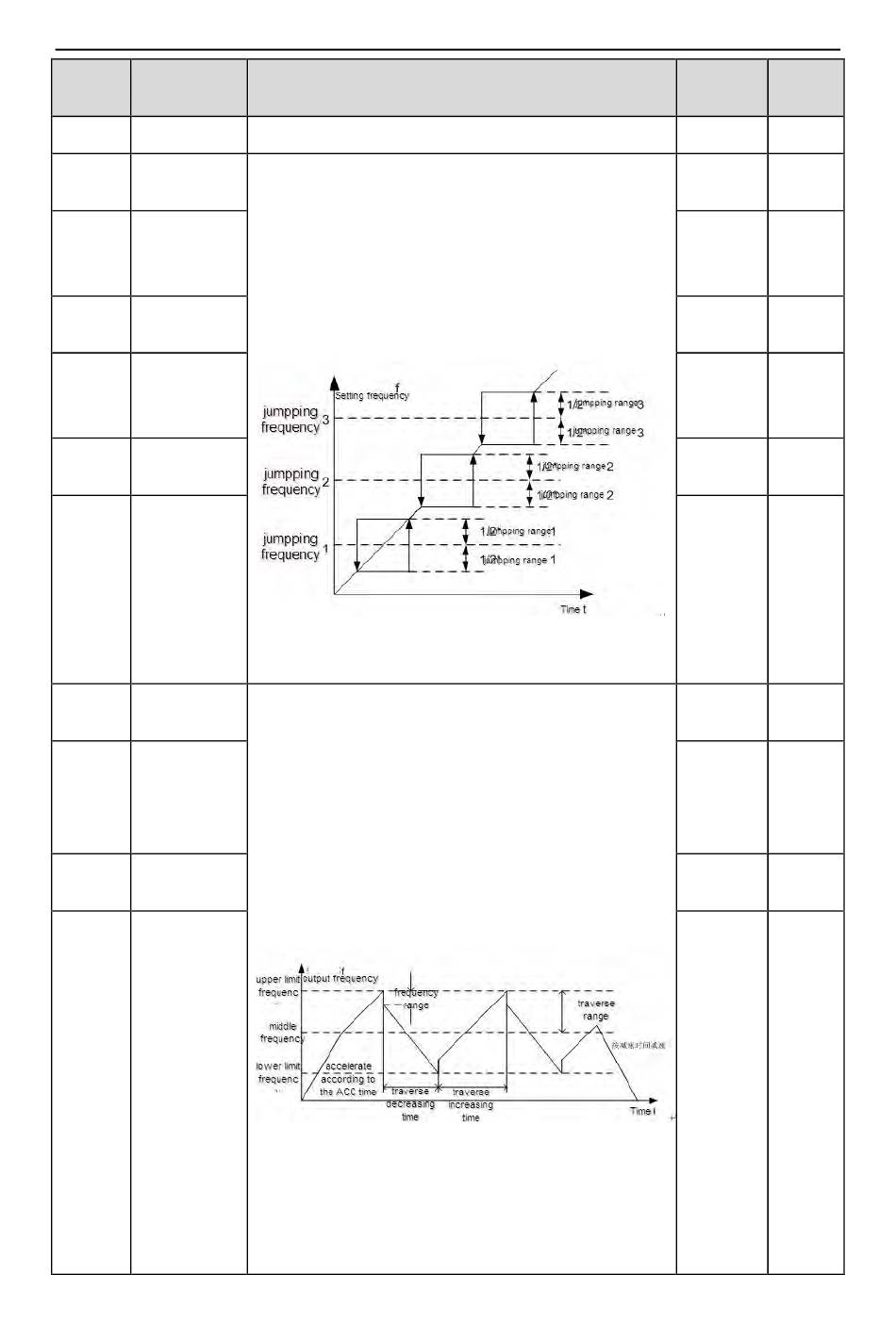

Detailed instruction of parameters
Setting range:0.0~3600.0s
When the set frequency is in the range of
jumping frequency, the inverter will run at the
edge of the jumping frequency.
The inverter can avoid the mechanical resonance
point by setting the jumping frequency. The
inverter can set three jumping frequency. But this
function will be invalid if all jumping points are 0.
Setting range: 0.00Hz ~P00.03
(the Max. frequency)
This function applies to the industries where
traverse and convolution function are required
such as textile and chemical fiber.
The traverse function means that the output
frequency of the inverter is fluctuated with the set
frequency as its center. The route of the running
frequency is illustrated as below, of which the
traverse is set by P08.15 and when P08.15 is set
as 0, the traverse is 0 with no function.
Traverse range: The traverse running is limited
by upper and low frequency.
The traverse range relative to the center
frequency: traverse range AW＝center frequency
×traverse range P08.15.
69
Function parameters
Default
Modify
value
○
0.00Hz
○
0.00Hz
○
0.00Hz
○
0.00Hz
○
0.00Hz
○
0.00Hz
○
0.0%
○
0.0%
○
5.0s
○
5.0s
