Peripheral Options and Parts
C.1 What this chapter contains
This chapter describes how to select the options and parts of Goodrive200A series.
C.2 Peripheral wiring

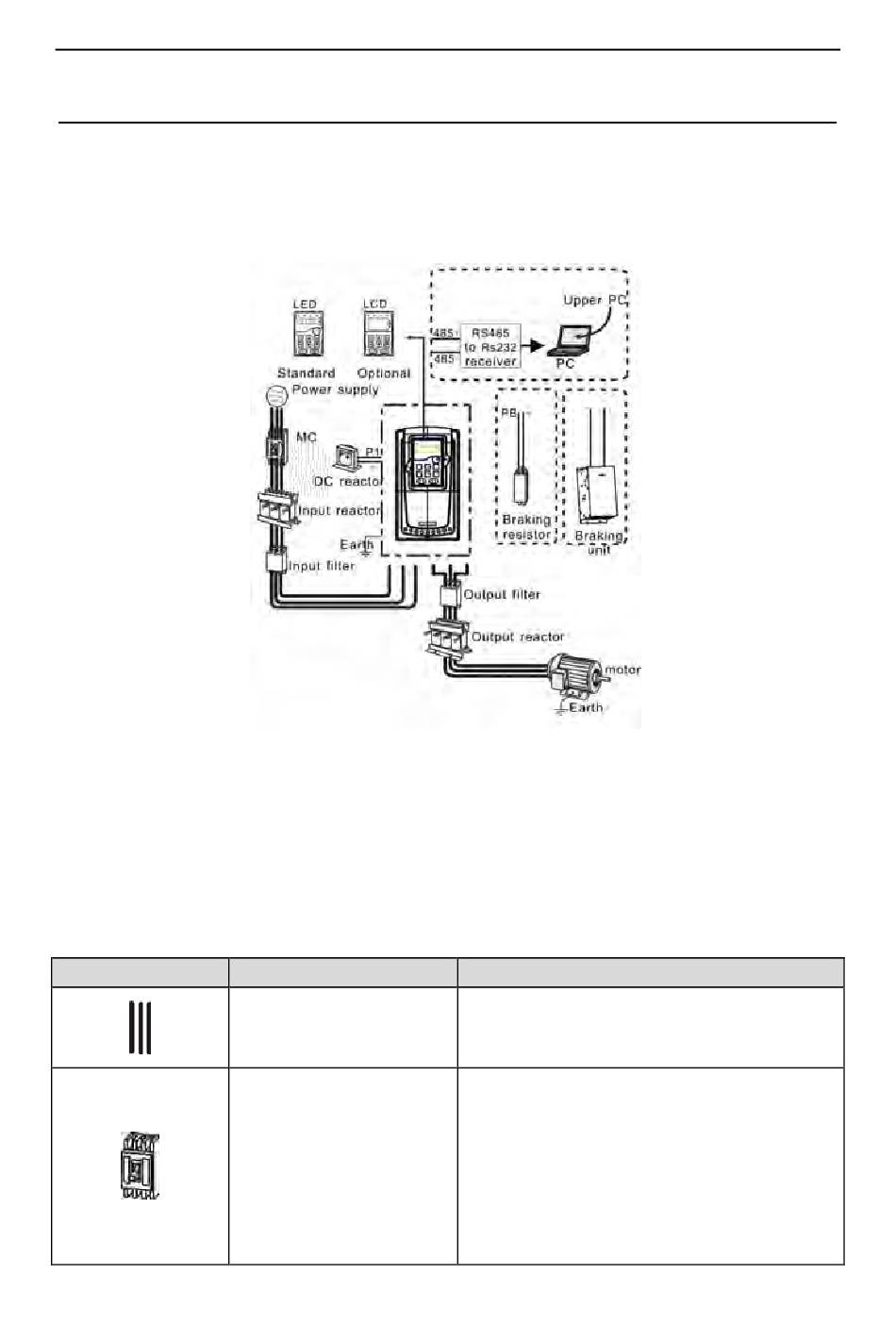

Below is the peripheral wiring of Goodrive200A series inverters.
Note:
1. The inverters (≤15kW) have standard film keypad and the inverters (≥18.5kW) have
standard LED keypad.
2．The inverter below 30kW (including 30kW) are embedded with braking unit.
3. Only the inverter above 37kW (including 37kW) have P1 terminal and are connected
with DC reactors.
4. The braking units apply standard braking unit DBU series in. Refer to the instruction of
DBU for detailed information.
Pictures Name
Device to transfer the electronic signals
Cables
Prevent from electric shock and protect the
power supply and the cables system from
overcurrent when short circuits occur.
(Please select the breaker with the
Breaker
function of reducing high order harmonic
and the rated sensitive current to 1 inverter
should be above 30mA).
144
Appendix C
Appendix C
Descriptions
