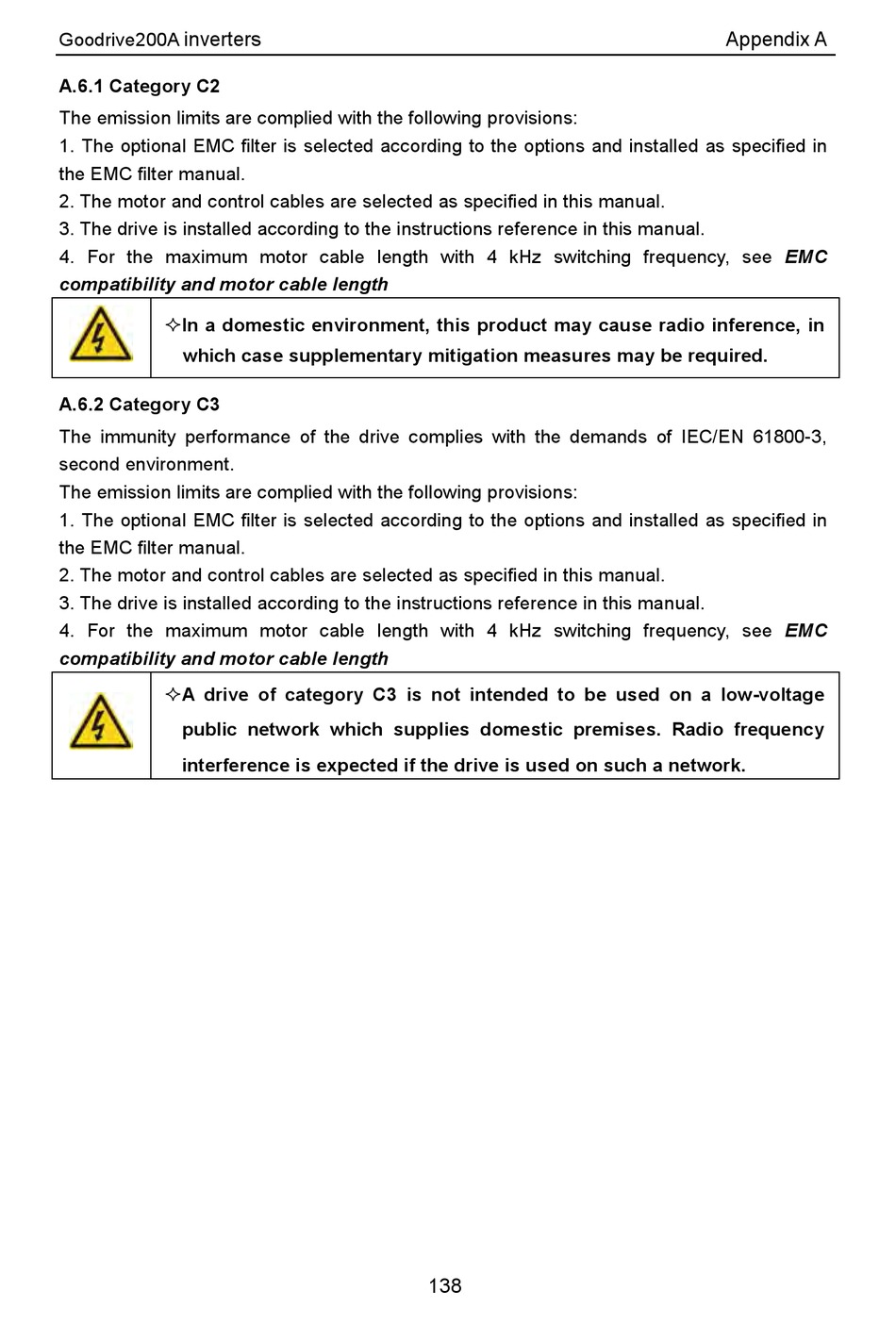

INVT Goodrive 200A Operation Manual page 143

inverters
Goodrive200A
A.6.1 Category C2
The emission limits are complied with the following provisions:
1. The optional EMC filter is selected according to the options and installed as specified in
the EMC filter manual.
2. The motor and control cables are selected as specified in this manual.
3. The drive is installed according to the instructions reference in this manual.
4. For the maximum motor cable length with 4 kHz switching frequency, see EMC
compatibility and motor cable length
 In a domestic environment, this product may cause radio inference, in
which case supplementary mitigation measures may be required.
A.6.2 Category C3
The immunity performance of the drive complies with the demands of IEC/EN 61800-3,
second environment.
The emission limits are complied with the following provisions:
1. The optional EMC filter is selected according to the options and installed as specified in
the EMC filter manual.
2. The motor and control cables are selected as specified in this manual.
3. The drive is installed according to the instructions reference in this manual.
4. For the maximum motor cable length with 4 kHz switching frequency, see EMC
compatibility and motor cable length
 A drive of category C3 is not intended to be used on a low-voltage
public network which supplies domestic premises. Radio frequency
interference is expected if the drive is used on such a network.
138
Appendix A
