Multiple Monitors Connection

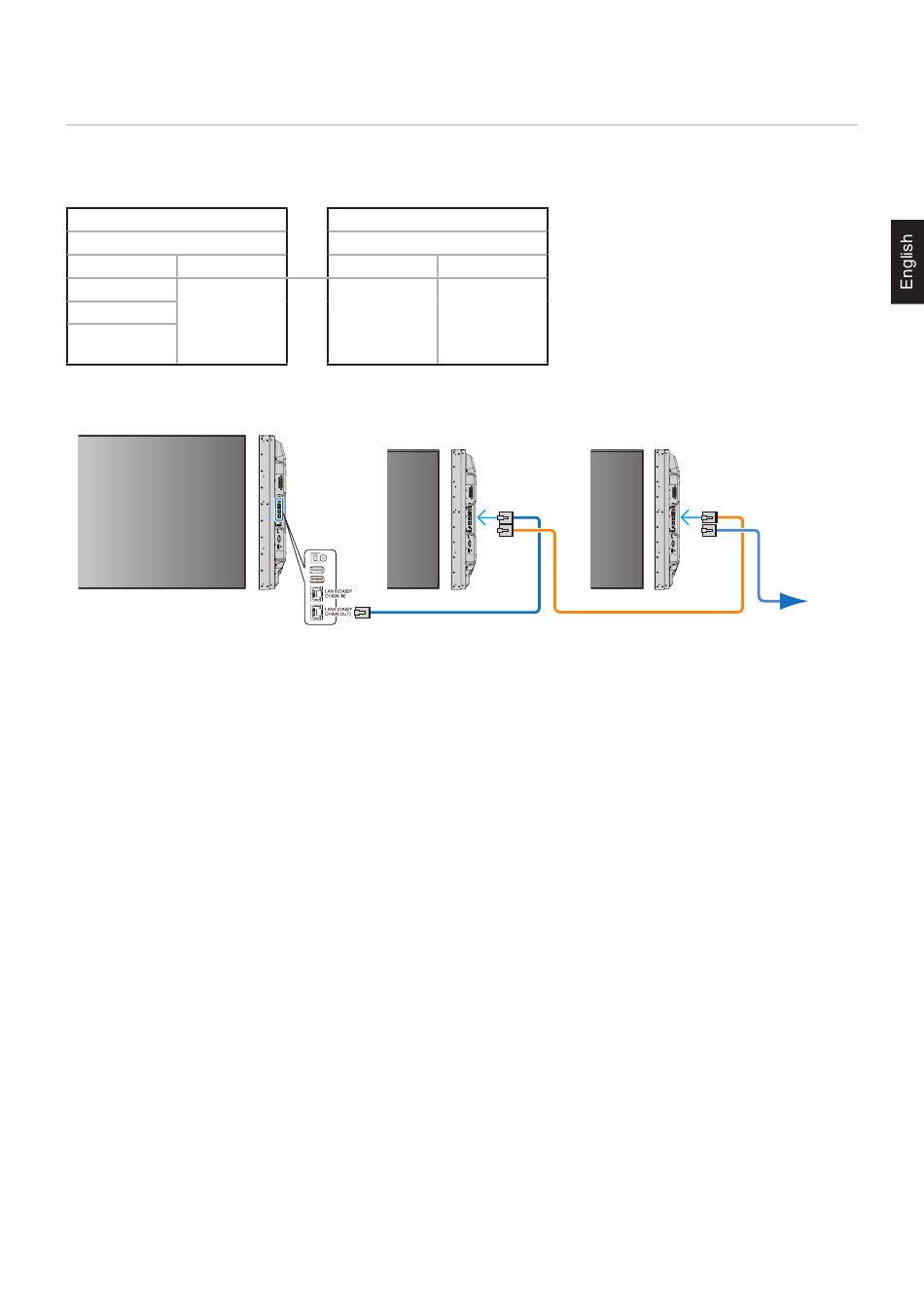

You can control multiple monitors by using RS-232C, REMOTE or LAN daisy-chain connection.


NOTEN: • Up to 100 monitors can be daisy chained together. Please execute AUTO ID/IP to automatically assign unique IDs
to each monitor (see
Master Monitor
Connector
IN OUT
RS-232C
REMOTE LAN2 (DAISY
CHAIN OUT)
LAN1 (DAISY
CHAIN IN)
Connection
page 115) before trying to control a monitor by manually specifying the ID number.
Sub Monitors
Connector
IN
LAN1 (DAISY
CHAIN IN)
LAN Cable
LAN2
English−81
OUT
LAN2 (DAISY
CHAIN OUT)
LAN1
LAN2
LAN Cable
LAN1
LAN2
Next monitor
