Video Wall Installation Guide
Settings and Adjustments for MultiSync® UN552S | UN552VS | UN552 |
UN552V | UN492S | UN492VS | UN462A | UN462VA
A guide to trouble-free, efficient
video wall installation
This guide will assist you in setting up your video wall quickly and correctly in order
to benefit fully from the specially designed video wall features. Please read the
instructions carefully and consider all the steps in order to achieve the best results.
Attention: For unboxing and physical monitor handling, please refer to the printed
Installation Manual included in each display carton box.

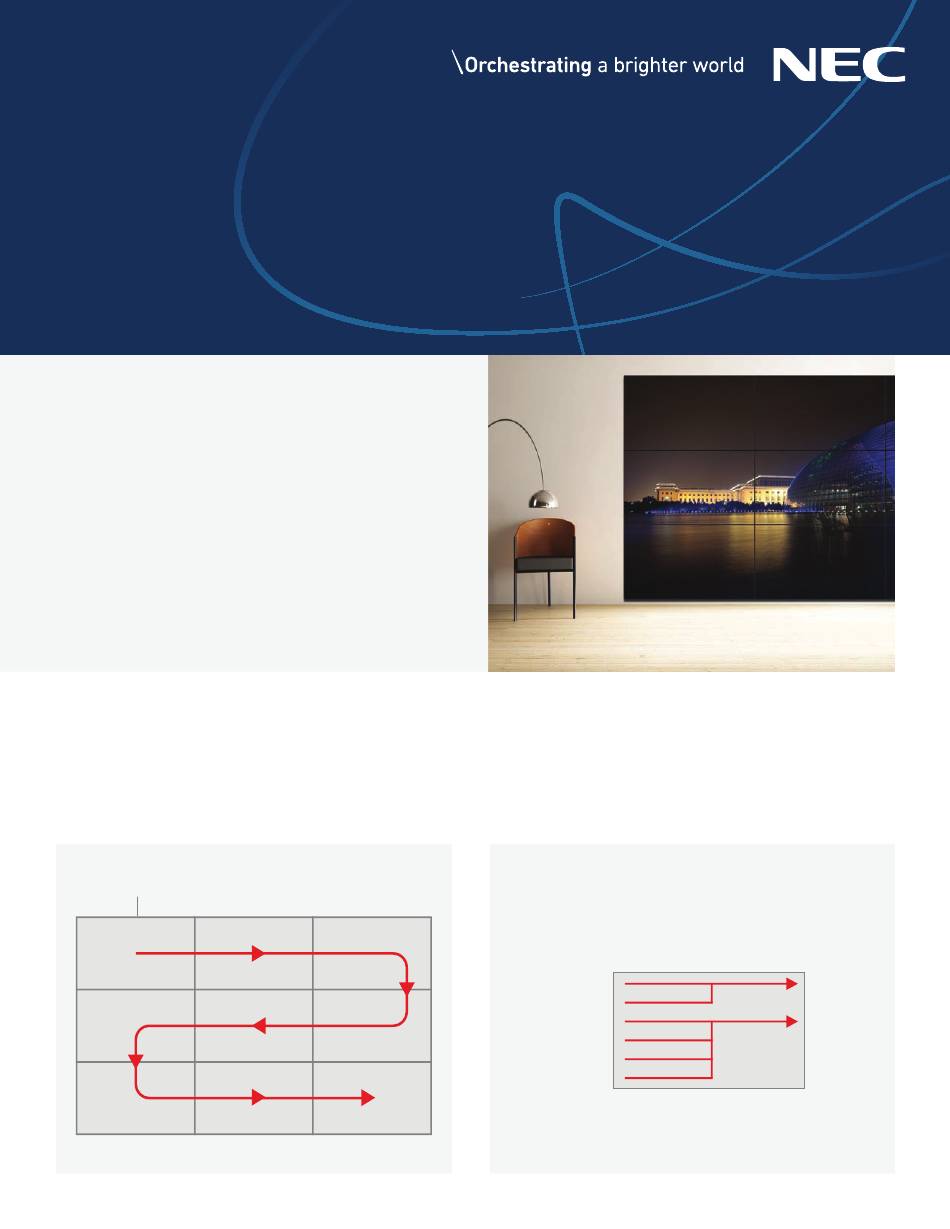

AUTO SETUP Principle
Any input signal up to UHD/30 resolution via DisplayPort, HDMI or OPS can be distributed
across the video wall by using the Tile Matrix function. The UNxx2 displays provide
several "AUTO SETUP" functions for simple and fast video wall setup and management.
To enable these functions to operate correctly, it is necessary for DisplayPort, HDMI and
LAN cables to be daisy chained as illustrated below.
PRIMARY
MONITOR
ID: 1 ID: 2
DisplayPort
HDMI
OPS
Media Player
LAN
ID: 6 ID: 5
ID: 7 ID: 8
Primary monitor - input/output mapping
For uncompromising visual results, no signal conversion is necessary. Refer to the
mapping table between input and output interfaces. Depending on the required input
source, use HDMI and/or DisplayPort Daisy Chain cabling.
ID: 3
ID: 4
ID: 9
UNxx2/UXxx2 DAISY CHAIN: INPUT / OUTPUT MAPPING
INPUT
DisplayPort1
OPS SLOT2 (DisplayPort)
HDMI1
DVI
OPS SLOT2 (HDMI)
Integrated Media Player
OUTPUT
DisplayPort OUT
HDMI OUT
