3. With [H ADJUSMENT] and [V ADJUSTMENT], you can move the selected square to the exact spot where you display.
4. Select [YES] at [TILE MATRIX ANABLE].
For the right monitor:
Repeat the same steps.
e.g. Selecting 2 at [POSITION]
• [FRAME COMP] - Allows auto setting of FRAME COMP by inputting the number of monitors arranged horizontally and
vertically on.
It is recommended and should deliver the best results if fast moving content is displayed. Applying the [FRAM COMP] is
needed for a specific installation.
[AUTO] - Sets total delay value, each delay value is set automatically by setting of [H MONITORS], [V MONITORS] and
[POSITION] in TILE MATRIX.
[MANUAL] - Sets delay value to every monitors.
• [V SCAN REVERSE] - Reverse scanning image direction to create a smooth motion image.
ORIGINAL
• [TILE MATRIX MEMORY] – allows settings for the tile matrix to be saved to all inputs in the monitor.
• [ID CONTROL] – sets the monitor ID and group IP for the current monitor. When the monitors LAN ports are chained
together, the ID and IP can be automatically assigned to all displays.
• Video daisy chaining.
We strongly recommend using the same monitor model for all monitors in the connected daisy-chain.
MONITORS POSITION is different from ID. Please refer to the figure1.
POSITION should be set as the bottom from the top to the right from the left.

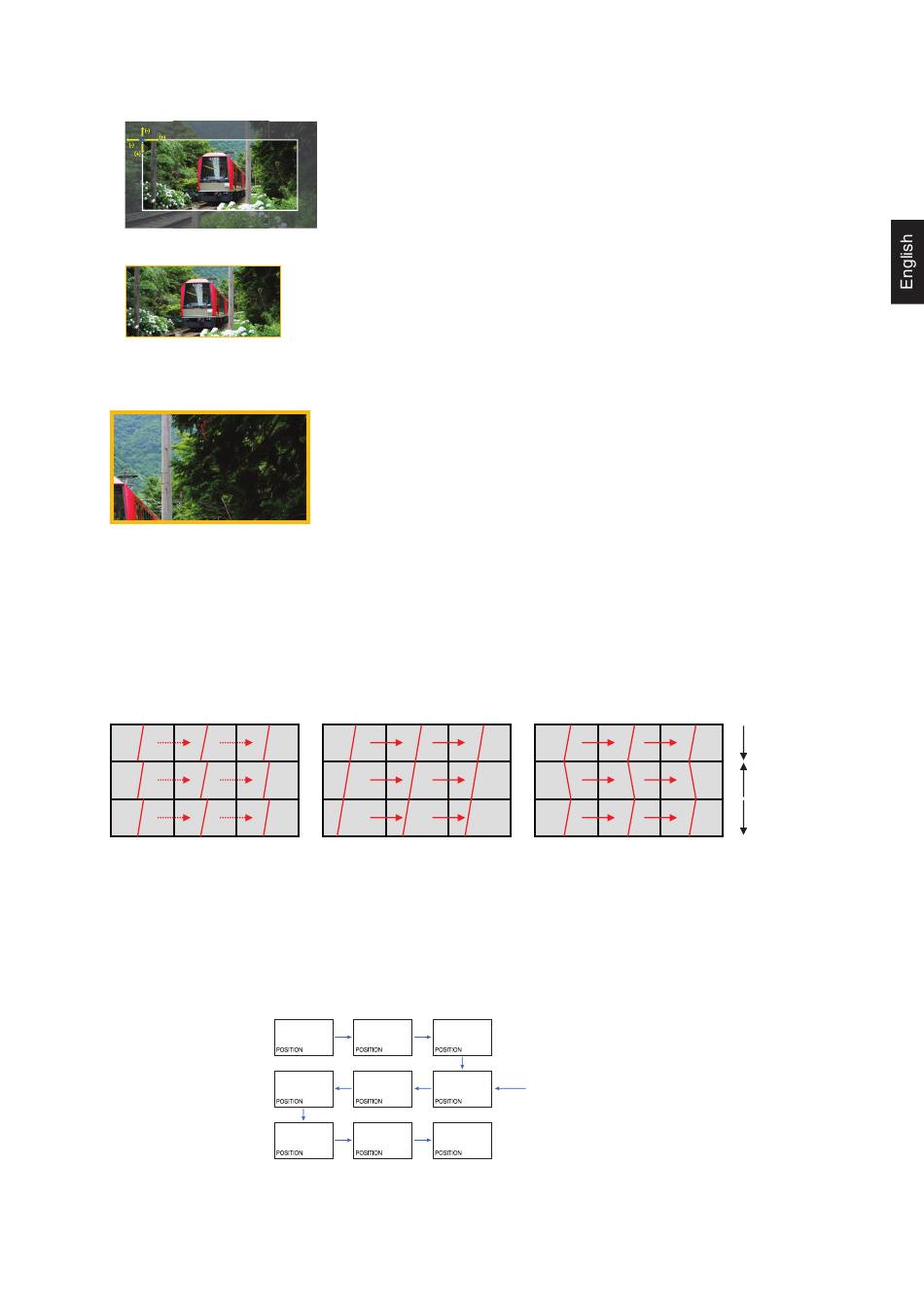

FRAME COMP
ID:1 ID:2 ID:3
1 2
ID:4 ID:5 ID:6
4 5
ID:7 ID:8 ID:9
7 8
Figure 1
English−71
V SCAN REVERSE
3
H MONITORS: 3
6
V MONITORS: 3
POSITION: 4, 5, 6
9
V SCAN Direction
