Programming

4.2 Set-up Wizard

The built-in wizard menu guides the installer through the
set-up of the frequency converter in a clear and structured
manner for open-loop applications, closed-loop
applications, and quick motor settings.
4 4

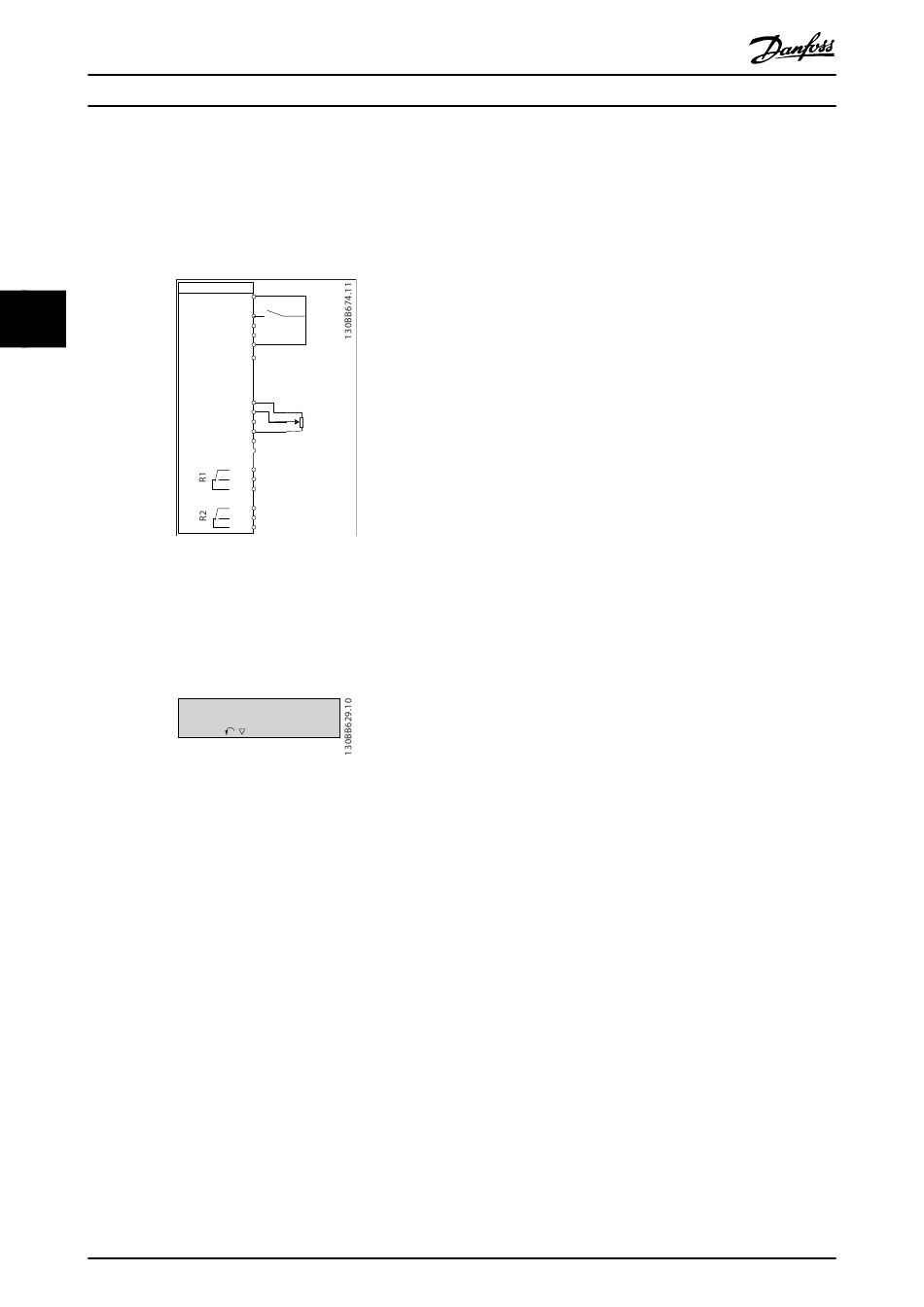

Illustration 4.2 Frequency Converter Wiring
The wizard is displayed after power-up until any parameter
has been changed. The wizard can always be accessed
again through the quick menu. Press [OK] to start the
wizard. Press [Back] to return to the status view.
Illustration 4.3 Start-up/Quit Wizard
24
VLT
FC
12
+24 V (OUT)
DIG IN
18
Start
19
DIG IN
20
COM DIG IN
27
DIG IN
29
DIG IN
+10 V (OUT)
50
+
A IN
53
Reference
A IN
54
COM IN/OUT
55
-
42
0–10 V
A OUT / D OUT
45
A OUT / D OUT
01
02
03
04
05
06
Press OK to start Wizard
Push Back to skip it
Setup 1
