Installation
4. Mount the support bracket across the mains
cables and tighten the screws as shown in
Illustration 3.11.
3 3

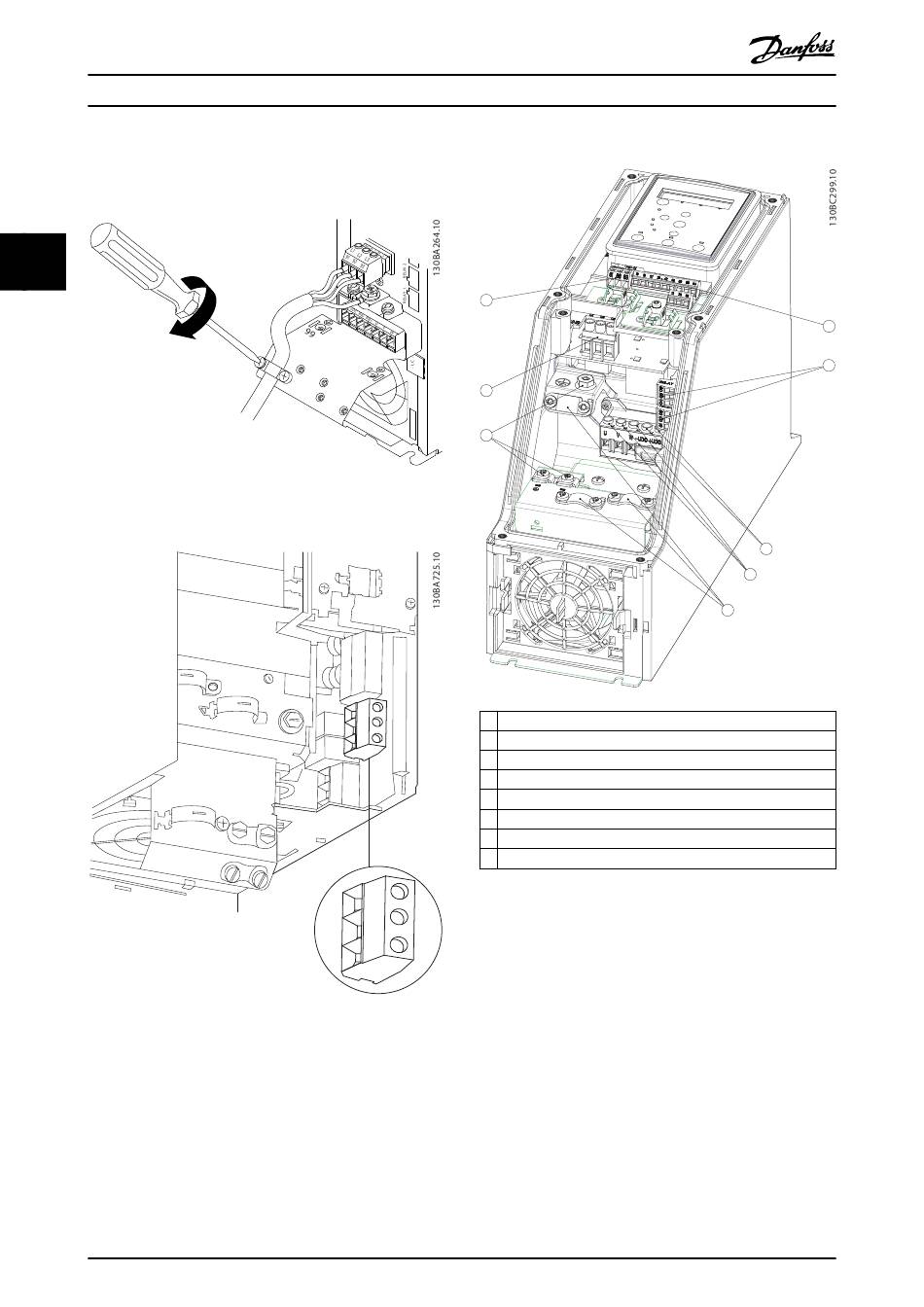

Illustration 3.11 Mounting the Support Bracket
Relays and terminals on enclosure size H10
Illustration 3.12 Enclosure Size H10
IP20, 600 V, 11–15 kW (15–20 hp)
14
®
VLT HVAC Basic Drive FC 101
Enclosure size I2
1
2
3
1 RS485
2 Mains
3 Ground
4 Cable clamps
5 Motor
6 UDC
7 Relays
8 I/O
Illustration 3.13 Enclosure Size I2
IP54, 380–480 V, 0.75–4.0 kW (1–5 hp)
