Installation
•
For further details on mounting the decoupling
plate, see FC 101 Decoupling Plate Mounting
Instruction.
•
Also see EMC-Correct Installation in the VLT
Basic Drive FC 101 Design Guide .
1. Mount the ground cables to the ground terminal.
2. Connect the motor to terminals U, V, and W, and
then tighten the screws according to the torques
specified in chapter 3.2.1 Electrical Installation in
General.
3. Connect the mains supply to terminals L1, L2,
and L3, and then tighten the screws according to
the torques specified in chapter 3.2.1 Electrical
Installation in General.

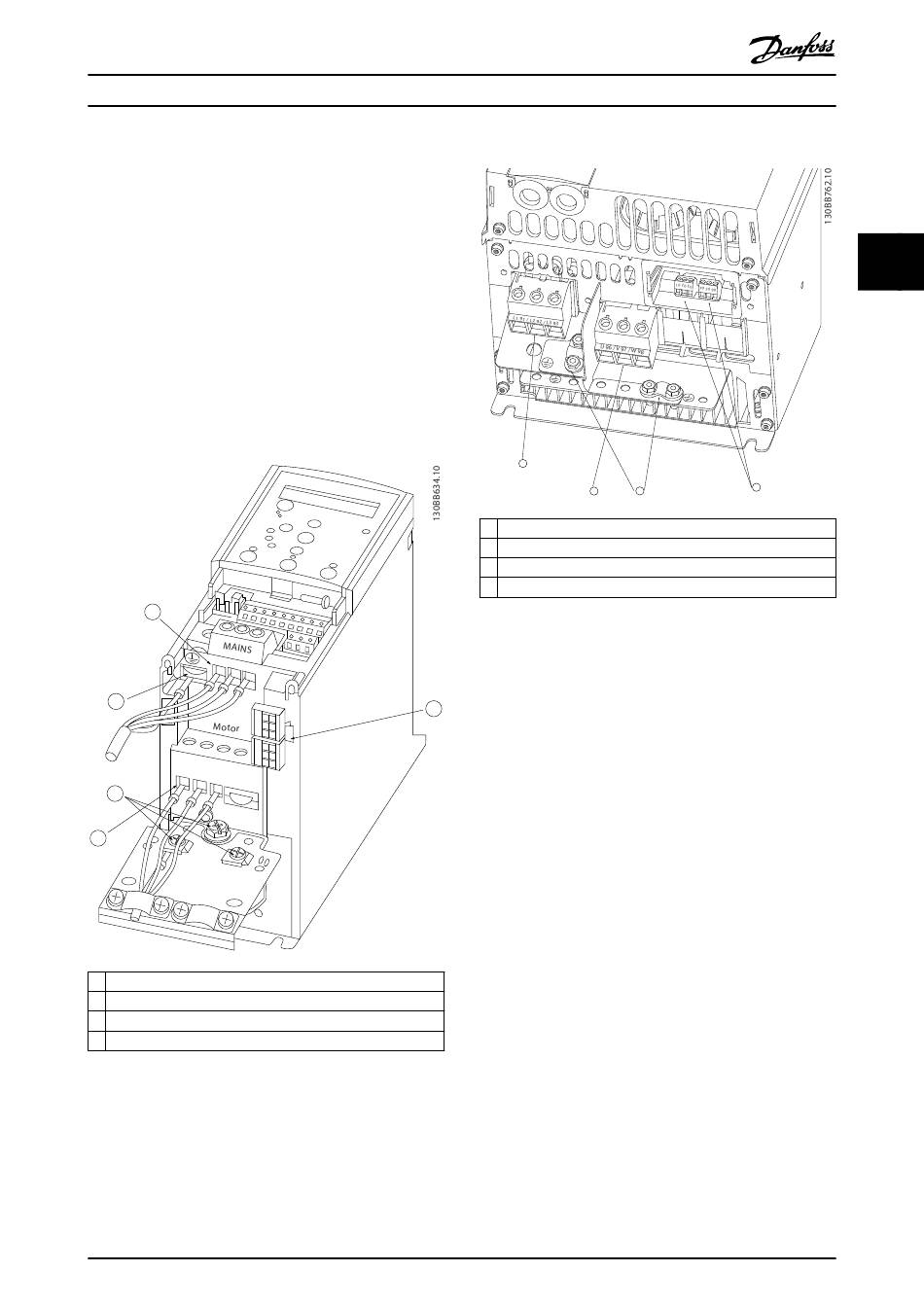

Relays and terminals on enclosure sizes H1–H5
1
2
U
V W
-DC +DC
2
3
1 Mains
2 Ground
3 Motor
4 Relays
Illustration 3.3 Enclosure Sizes H1–H5
IP20, 200–240 V, 0.25–11 kW (0.33–15 hp)
IP20, 380–480 V, 0.37–22 kW (0.5–30 hp)
MG18A802
Quick Guide
Relays and terminals on enclosure size H6
®
HVAC
1
1 Mains
2 Motor
3 Ground
4 Relays
Illustration 3.4 Enclosure Size H6
IP20, 380–480 V, 30–45 kW (40–60 hp)
IP20, 200–240 V, 15–18.5 kW (20–25 hp)
IP20, 525–600 V, 22–30 kW (30–40 hp)
4
