Danfoss VLT FC 101 Quick Manual page 14

Installation

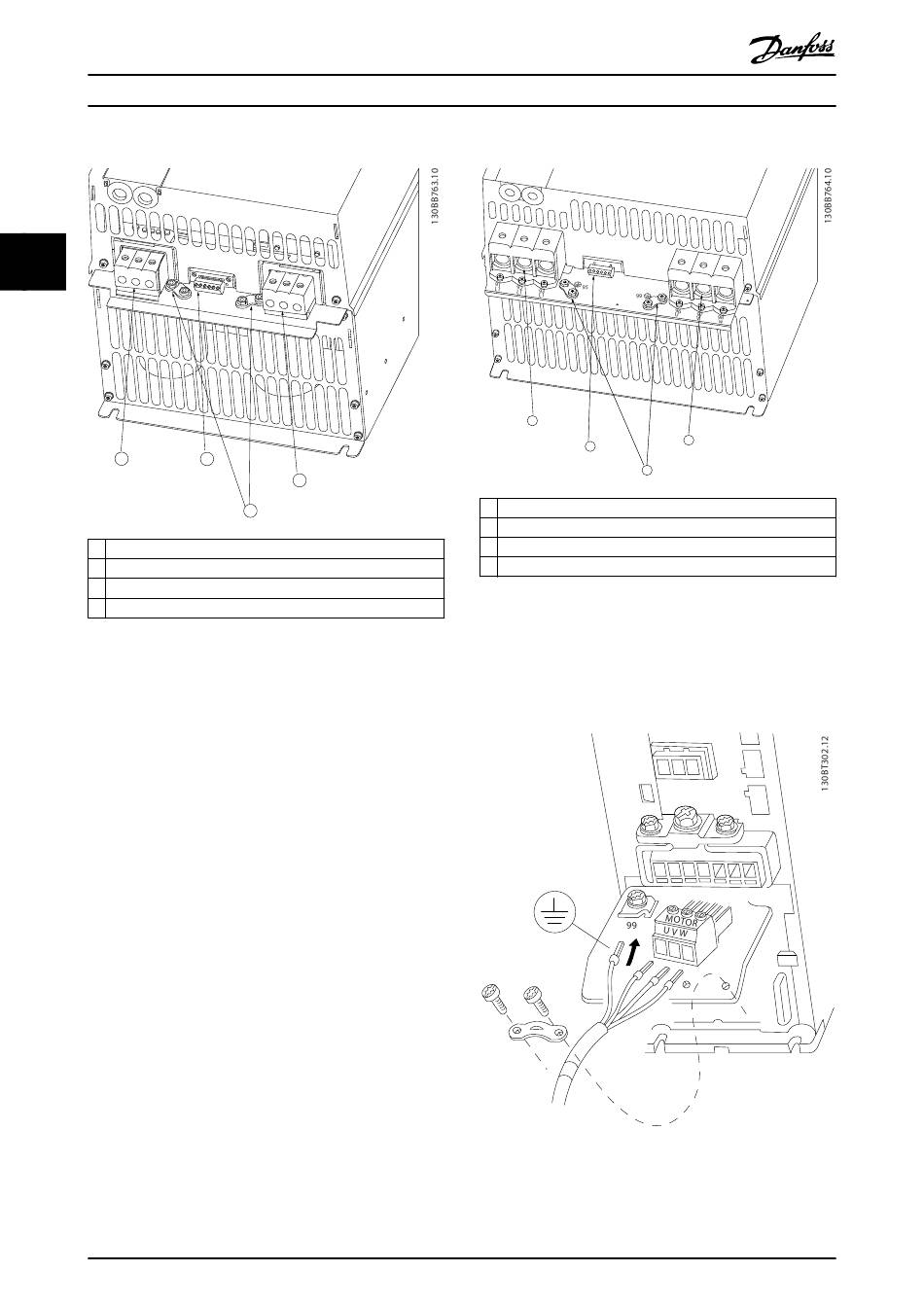

Relays and terminals on enclosure size H7
3 3
1
1 Mains
2 Relays
3 Ground
4 Motor
Illustration 3.5 Enclosure Size H7
IP20, 380–480 V, 55–75 kW (70–100 hp)
IP20, 200–240 V, 22–30 kW (30–40 hp)
IP20, 525–600 V, 45–55 kW (60–70 hp)
12
®
VLT
2
4
3
Danfoss A/S © 05/2016 All rights reserved.
HVAC Basic Drive FC 101
Relays and terminals on enclosure size H8
1
1 Mains
2 Relays
3 Ground
4 Motor
Illustration 3.6 Enclosure Size H8
IP20, 380–480 V, 90 kW (125 hp)
IP20, 200–240 V, 37–45 kW (50–60 hp)
IP20, 525–600 V, 75–90 kW (100–125 hp)
Connecting to mains and motor for enclosure size H9
Illustration 3.7 Connecting the Frequency Converter to the
Motor, Enclosure Size H9
IP20, 600 V, 2.2–7.5 kW (3–10 hp)
4
2
3
MOTOR
MG18A802
