Installation
Enclosure size I6
3 3

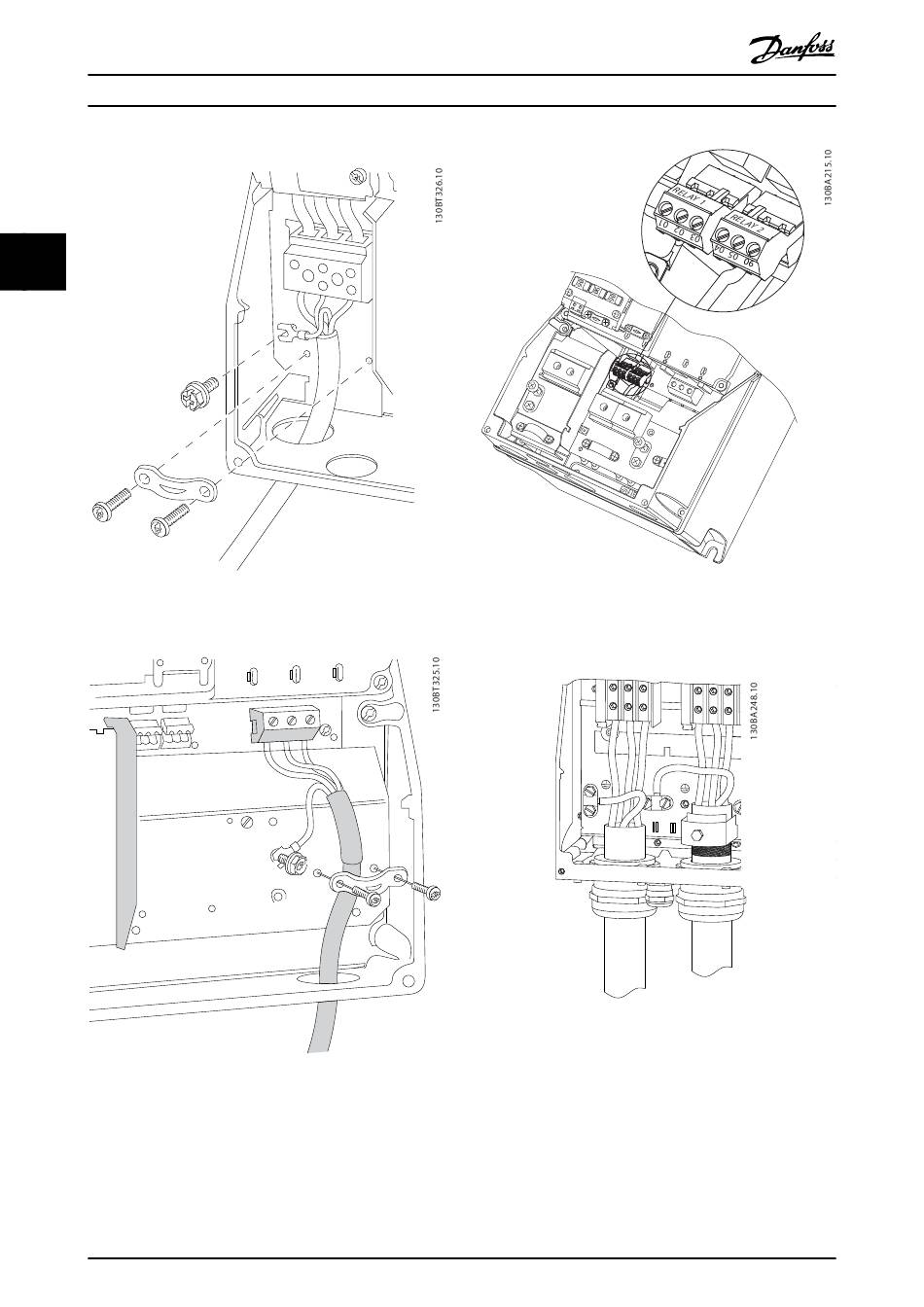

Illustration 3.17 Connecting to Mains for Enclosure Size I6
IP54, 380–480 V, 22–37 kW (30–50 hp)
Illustration 3.18 Connecting to Motor for Enclosure Size I6
IP54, 380–480 V, 22–37 kW (30–50 hp)
16
®
VLT HVAC Basic Drive FC 101
Illustration 3.19 Relays on Enclosure Size I6
IP54, 380–480 V, 22–37 kW (30–50 hp)
Enclosure sizes I7, I8
Illustration 3.20 Enclosure Sizes I7, I8
IP54, 380–480 V, 45–55 kW (60–70 hp)
IP54, 380–480 V, 75–90 kW (100–125 hp)
Danfoss A/S © 05/2016 All rights reserved.
88 89
DC-
DC+
91
92
93
96
97
L1 98
L2
L3
U
V
W
95
99
81
8
R- R+
