2 Appendix

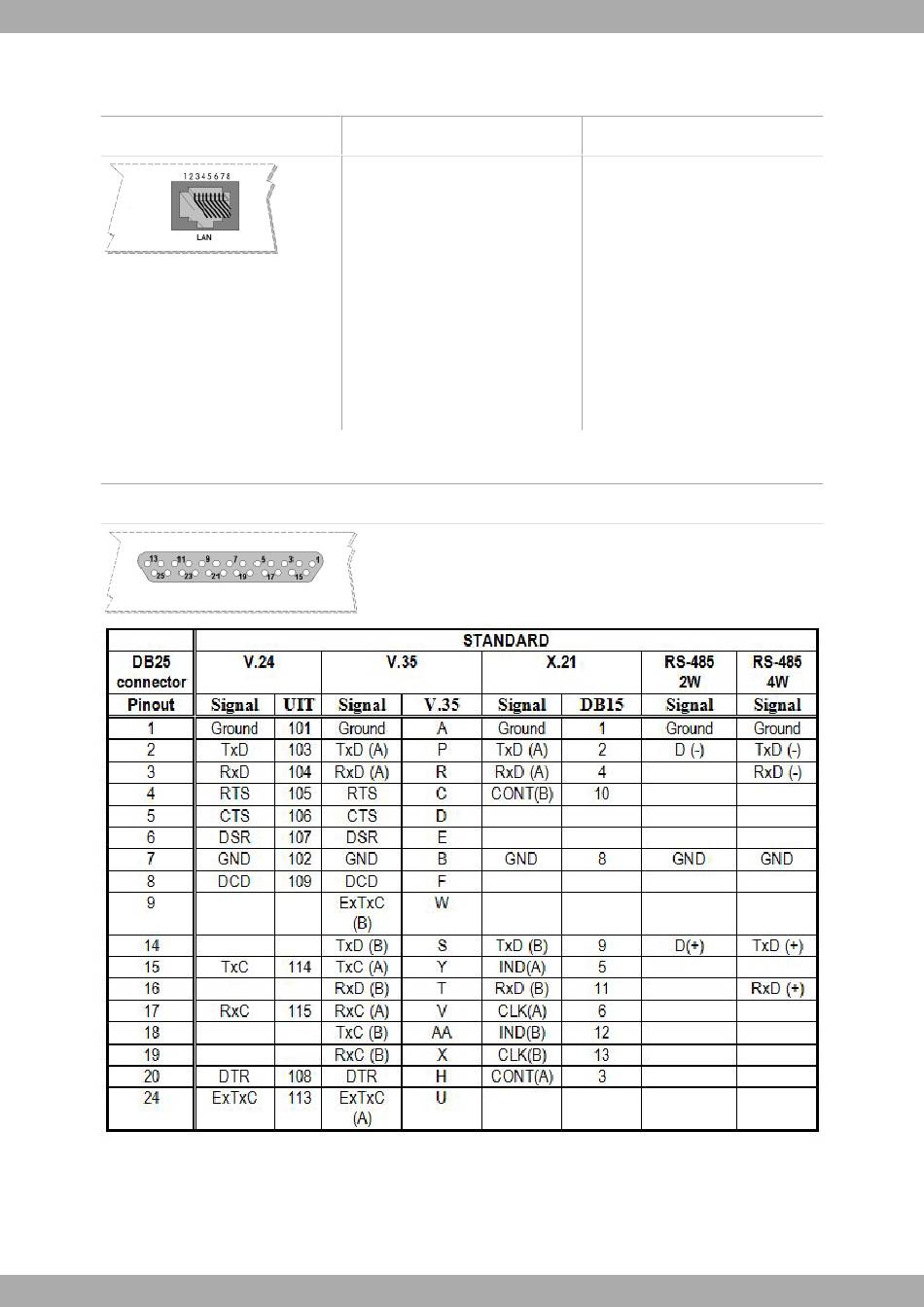

2.3.1 LAN Connector (FE 0 and Switch)

RJ45 LAN

2.3.2 SERIAL Connector

DB25 SERIAL
10
RJ45 PINOUT
1
2
3
4
5
6
7
8
LAN
Tx+(input)
Tx-(input)
Rx+(output)
--
--
Rx-(output)
--
--
Teldat T200 Router Family
Teldat S.A.
