Application Examples
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
6 6
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
01
02
03
04
05
06
66
®
VLT AutomationDrive FC 302 Low Harmonic Drive
132–630 kW
Parameters
Function Setting
Parameter 4-30 [1] Warning
Motor Feedback
Loss Function
Parameter 4-31 100 RPM
Motor Feedback
Speed Error
parameter 4-32 5 s
Motor Feedback
Loss Timeout
parameter 7-00 [2] MCB 102
Speed PID
Feedback Source
parameter 17-11 1024*
Resolution (PPR)
parameter 13-00 [1] On
SL Controller
Mode
parameter 13-01 [19] Warning
Start Event
parameter 13-02 [44] Reset
Stop Event key
parameter 13-10 [21] Warning
Comparator no.
Operand
parameter 13-11 [1] ≈*
Comparator
Operator
parameter 13-12 90
Comparator
Value
parameter 13-51 [22]
SL Controller Comparator 0
Event
parameter 13-52 [32] Set
SL Controller digital out A
Action low
parameter 5-40 [80] SL digital
Function Relay output A
Danfoss A/S © Rev. 04/2015 All rights reserved.
*=Default Value
Notes/comments:
If the limit in the feedback
monitor is exceeded, Warning
90 is issued. The SLC monitors
Warning 90 and in the case
that Warning 90 becomes TRUE,
then relay 1 is triggered.
External equipment may
indicate that service is required.
If the feedback error goes
below the limit again within 5
s, the adjustable frequency
drive continues and the
warning disappears. But relay 1
is still triggered until [Reset] on
the LCP.

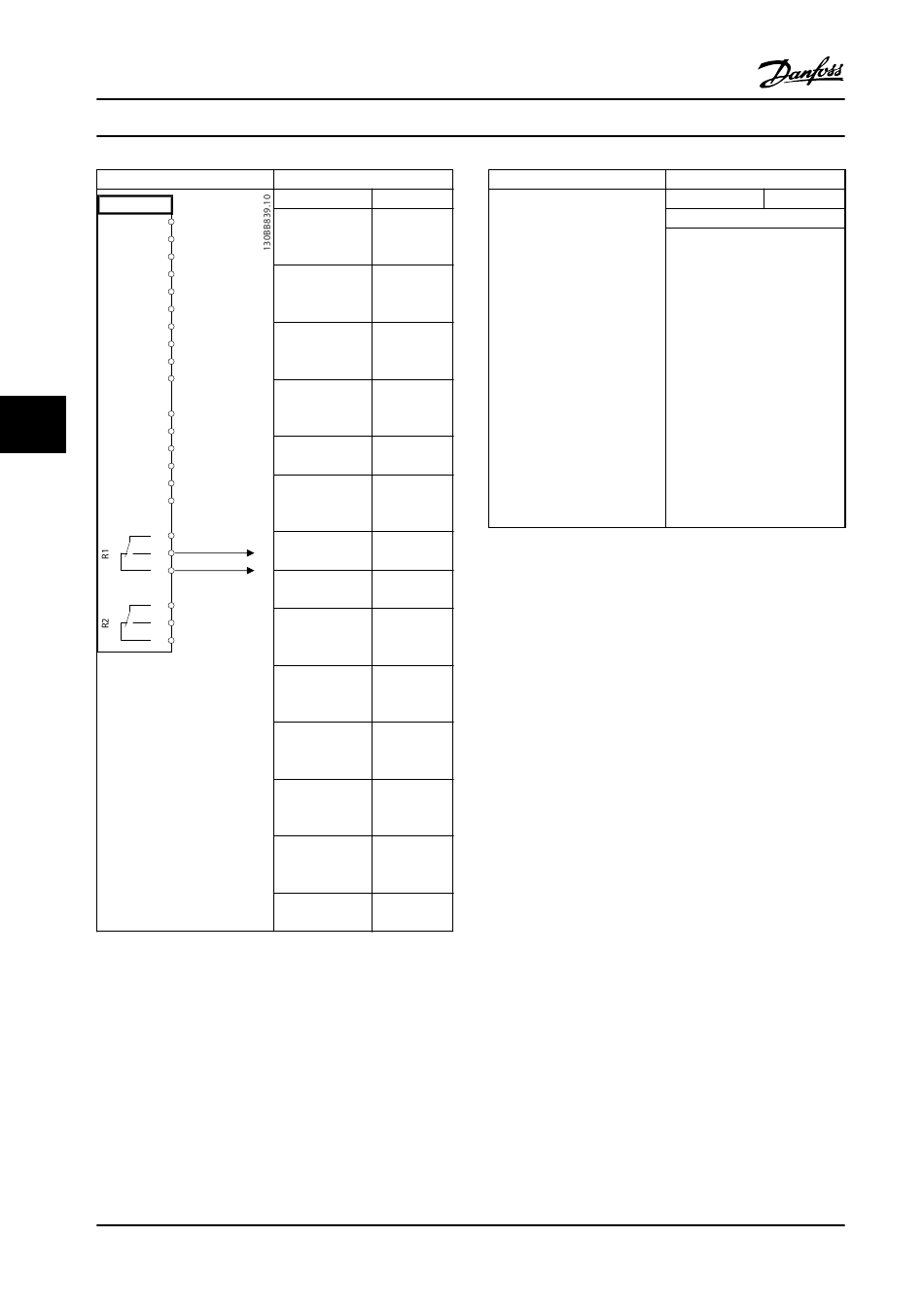

Table 6.13 Using SLC to Set a Relay
