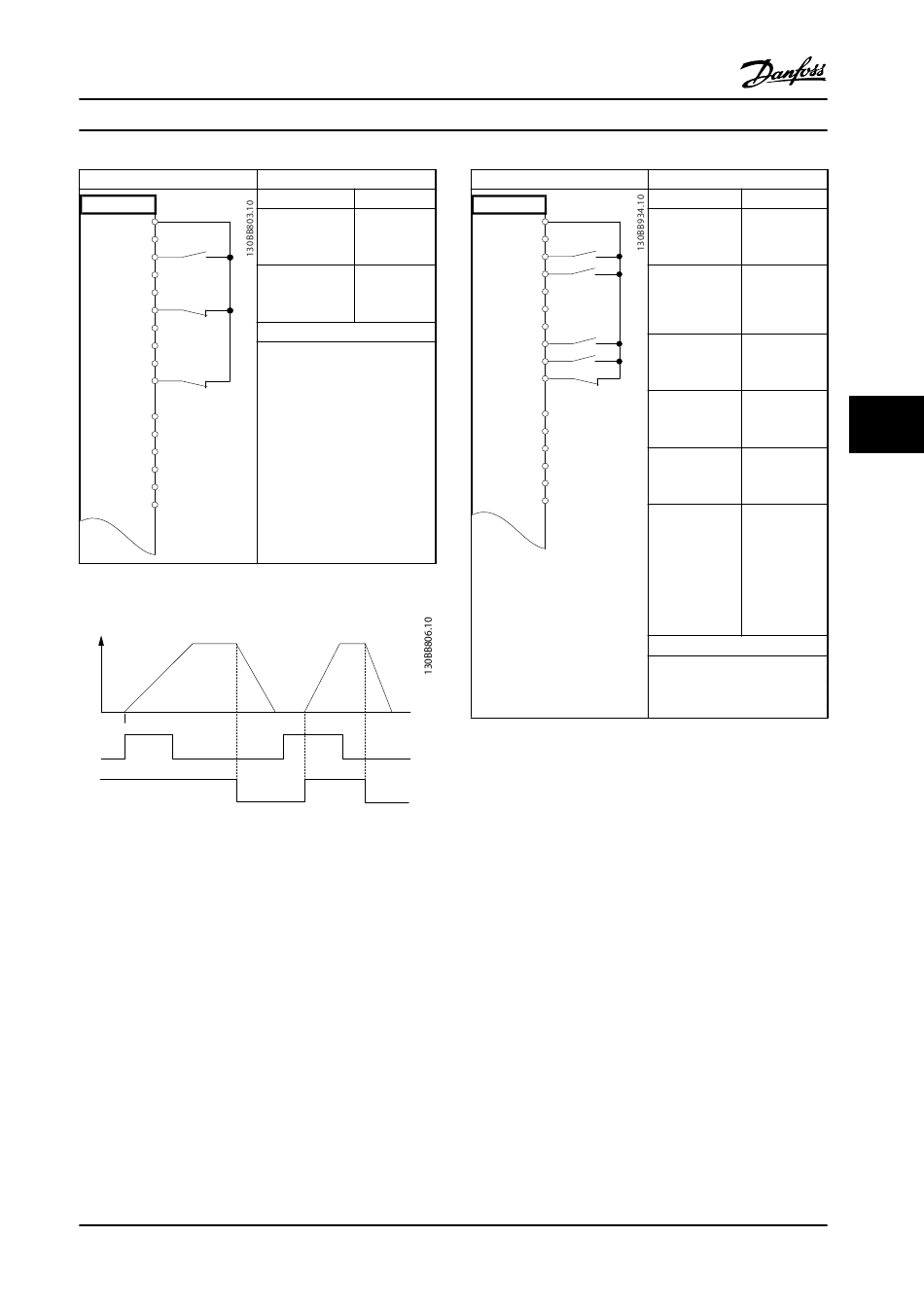

Danfoss VLT AutomationDrive FC 302 Installation Manual page 65

Application Examples
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.6 Pulse Start/Stop
Speed
Latched Start (18)
Stop Inverse (27)
Figure 6.2 Latched Start/Stop Inverse
MG37A322
Installation Manual
Parameters
Function Setting
parameter 5-10 [9] Latched
Terminal 18 Start
Digital Input
parameter 5-12 [6] Stop
Terminal 27 Inverse
Digital Input
*=Default Value
Notes/comments:
If parameter 5-12 Terminal 27
Digital Input is set to [0] No
operation, a jumper wire to
terminal 27 is not needed.
Danfoss A/S © Rev. 04/2015 All rights reserved.
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.7 Start/Stop with Reversing and Four Preset Speeds
Parameters
Function Setting
parameter 5-10 [8] Start
Terminal 18
Digital Input
parameter 5-11 [10]
Terminal 19 Reversing*
Digital Input
parameter 5-12 [0] No
Terminal 27 operation
Digital Input
parameter 5-14 [16] Preset ref
Terminal 32 bit 0
Digital Input
parameter 5-15 [17] Preset ref
Terminal 33 bit 1
Digital Input
parameter 3-10
Preset
Reference
Preset ref. 0 25%
Preset ref. 1 50%
Preset ref. 2 75%
Preset ref. 3 100%
*=Default Value
