Introduction
1 1
1 Local control panel (LCP)
2 Active filter card (AFC)
3 Metal oxide varistor (MOV)
4 Soft-charge resistors
5 AC capacitors discharge board
6 Line power contactor
7 LC inductor
8 AC capacitors
9 Line power bus bars to drive input
10 IGBT fuses
11 RFI

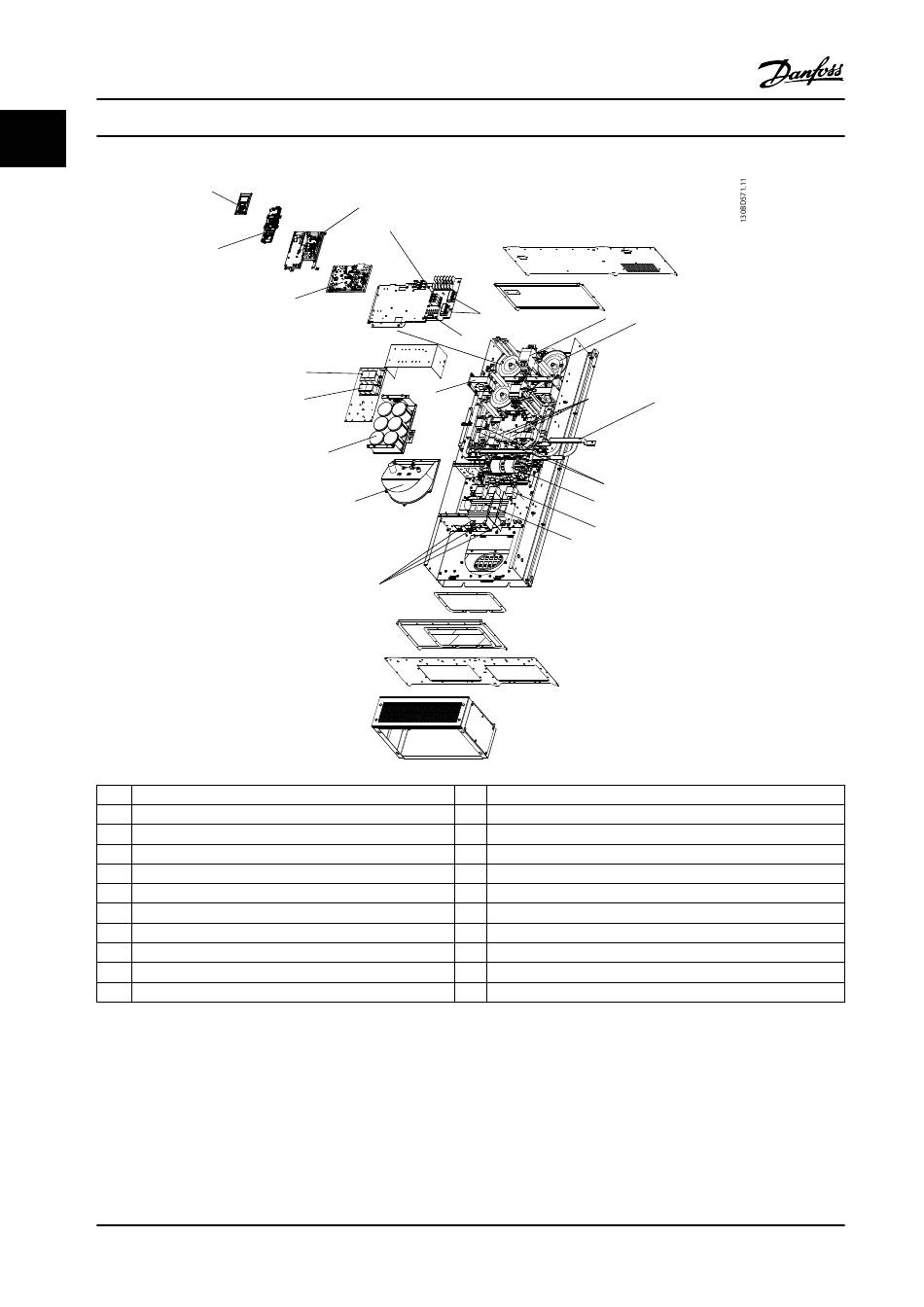

Figure 1.3 Frame Size D13 Filter Enclosure
8
®
VLT
132–630 kW
1
2
22
21
19
18
16
15
14
Danfoss A/S © Rev. 04/2015 All rights reserved.
AutomationDrive FC 302 Low Harmonic Drive
3
4
20
5
17
13 Electrical fuses
14 Line power disconnect
15 Line Power Terminals
16 Heatsink fan
17 DC capacitor bank
18 Current transformer
19 RFI differential mode filter
20 RFI common mode filter
21 HI inductor
22 Power card
6
7
8
9
10
11
12
13
MG37A322
