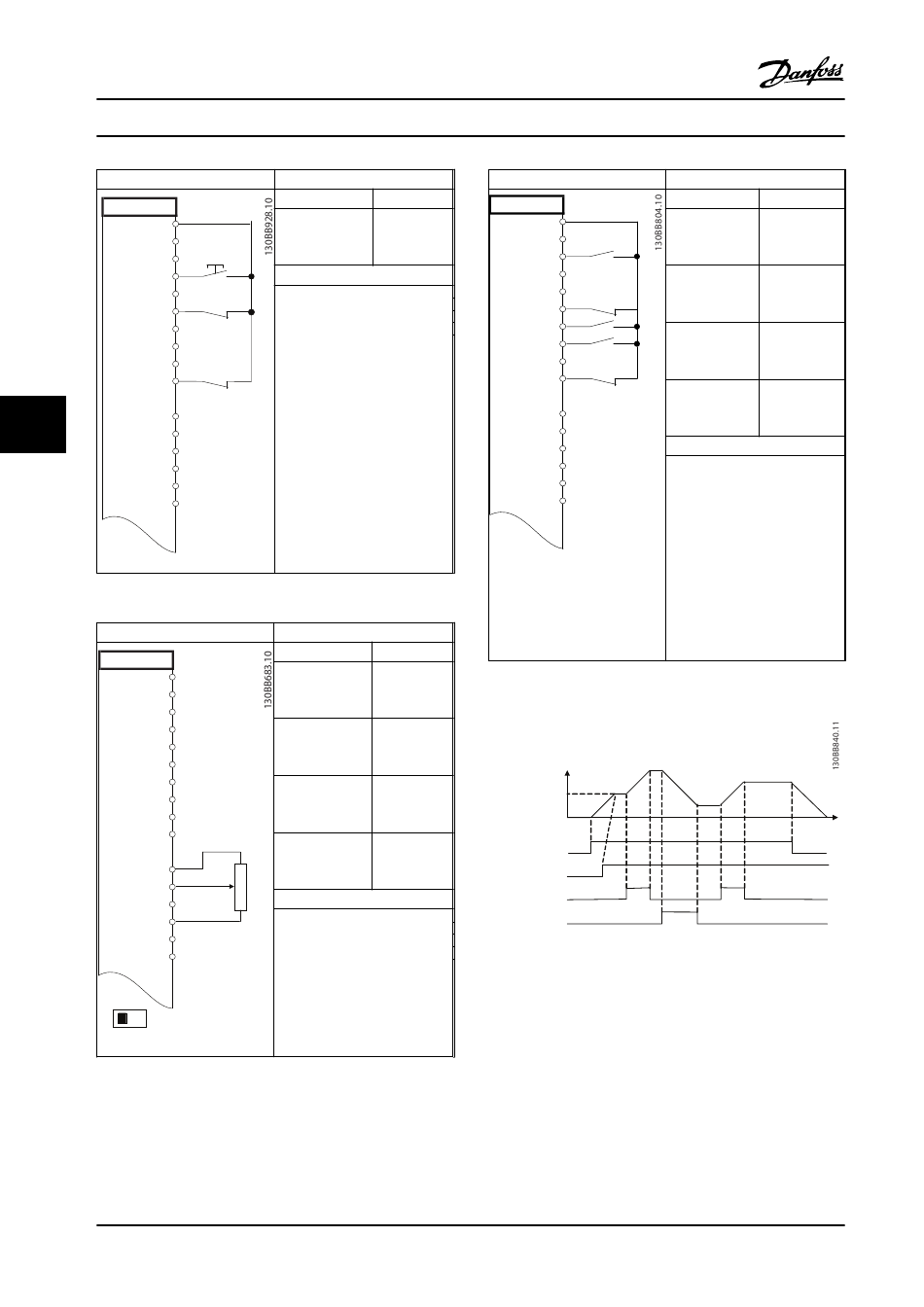

Application Examples
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
6 6
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.8 External Alarm Reset
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
U - I
A53
Table 6.9 Speed Reference (using a Manual Potentiometer)
64
®
VLT AutomationDrive FC 302 Low Harmonic Drive
132–630 kW
Parameters
Function Setting
parameter 5-11 [1] Reset
Terminal 19
Digital Input
*=Default Value
Notes/comments:
Parameters
Function Setting
parameter 6-10 0.07 V*
Terminal 53 Low
Voltage
parameter 6-11 10 V*
Terminal 53 High
Voltage
parameter 6-14 0 RPM
Terminal 53 Low
Ref./Feedb. Value
parameter 6-15 1,500 RPM
Terminal 53 High
Ref./Feedb. Value
≈ 5kΩ
*=Default Value
Notes/comments:
Danfoss A/S © Rev. 04/2015 All rights reserved.
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.10 Speed Up/Down
Speed
Reference
Start ( 18)
Freeze ref ( 27)
Speed up ( 29 )
Speed down ( 32 )
Figure 6.3 Speed Up/Down
Parameters
Function Setting
Parameter 5-10 [8] Start*
Terminal 18
Digital Input
Parameter 5-12 [19] Freeze
Terminal 27 Reference
Digital Input
parameter 5-13 [21] Speed Up
Terminal 29
Digital Input
parameter 5-14 [22] Slow
Terminal 32
Digital Input
*=Default Value
Notes/comments:
