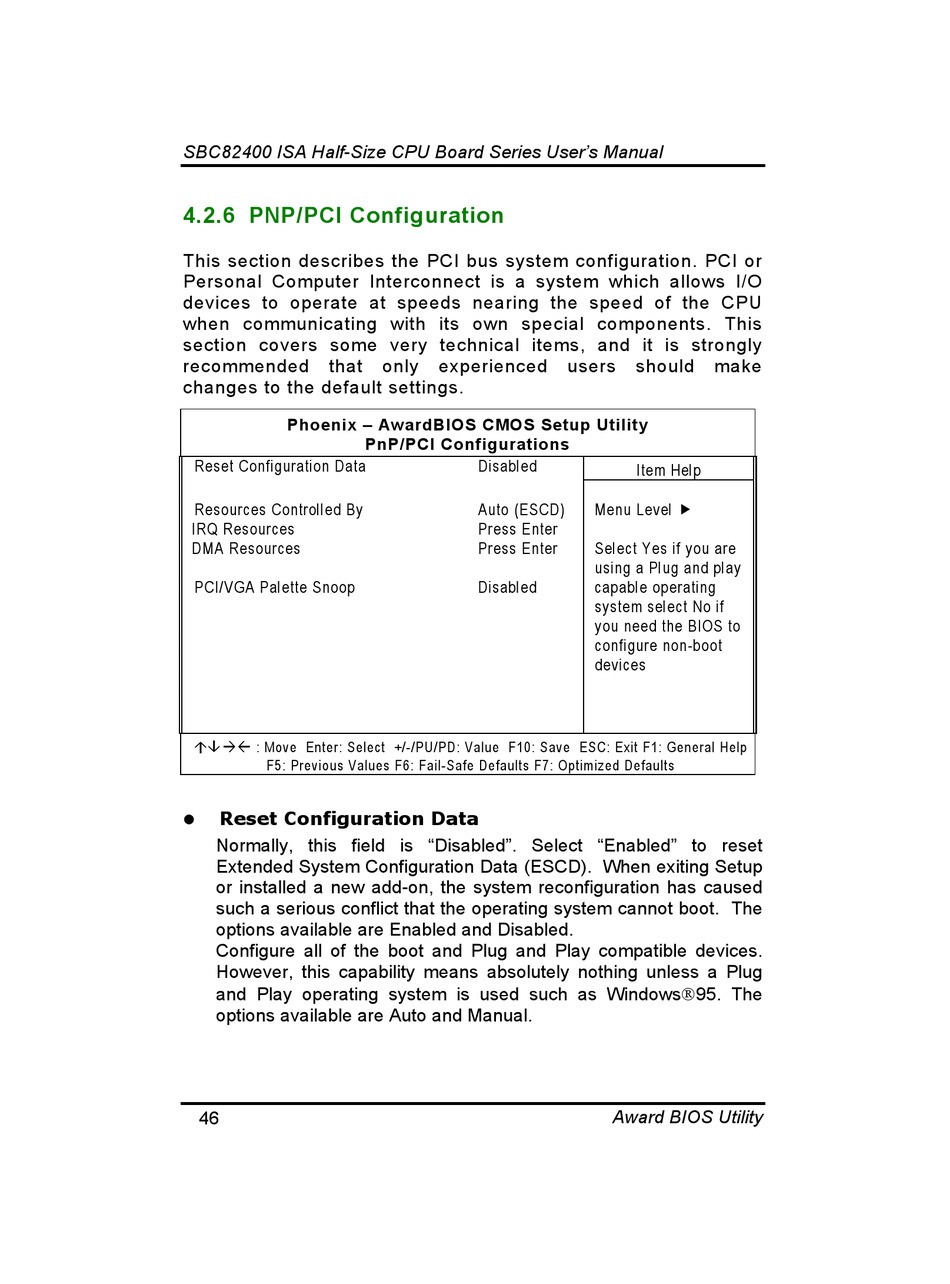

SBC82400 ISA Half-Size CPU Board Series User's Manual
4.2.6 PNP/PCI Configuration
This section describes the PCI bus system configuration. PCI or
Personal Computer Interconnect is a system which allows I/O
devices to operate at speeds nearing the speed of the CPU
when communicating with its own special components. This
section covers some very technical items, and it is strongly
recommended
that
changes to the default settings.
Phoenix – AwardBIOS CMOS Setup Utility
Reset Configuration Data
Resources Controlled By
IRQ Resources
DMA Resources
PCI/VGA Palette Snoop
: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Reset Configuration Data
Normally, this field is "Disabled". Select "Enabled" to reset
Extended System Configuration Data (ESCD). When exiting Setup
or installed a new add-on, the system reconfiguration has caused
such a serious conflict that the operating system cannot boot. The
options available are Enabled and Disabled.
Configure all of the boot and Plug and Play compatible devices.
However, this capability means absolutely nothing unless a Plug
and Play operating system is used such as Windows95. The
options available are Auto and Manual.
46
only
experienced
PnP/PCI Configurations
Disabled
Auto (ESCD)
Press Enter
Press Enter
Disabled
users
should
make
Item Help
Menu Level
Select Yes if you are
using a Plug and play
capable operating
system select No if
you need the BIOS to
configure non-boot
devices
