SBC82400 ISA Half-Size CPU Board Series User's Manual

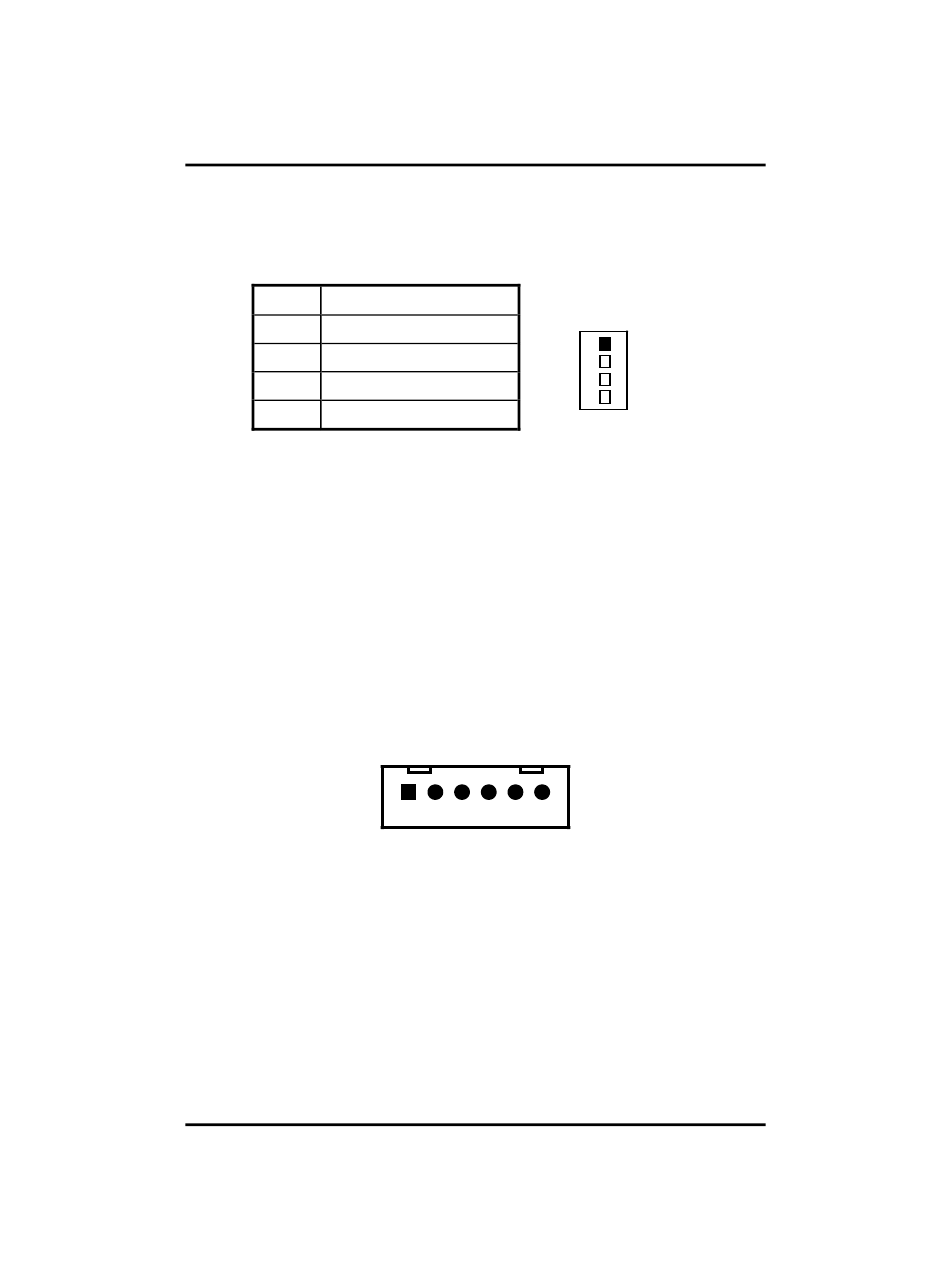

2.4.4 Power Connector: CN7

CN7 is the +5V/+12V power input connector of the SBC82400.
Pin
1
2
3
4

2.4.5 ACPI Connector: CN8

Advanced Configuration and Power Interface defines a flexible
and extensible interface that allows system designers to select
appropriate cost/feature trade-offs for power management. The
interface enables and supports reliable power management
through improved hardware and operating system coordination.
The specification enables new power management technology
to evolve independently in operating systems and hardware
while ensuring that they continue to work together.
CN8 on the SBC82400 is a 6-pin header connector that
provides ACPI interface.
Jumpers and Connectors
Description
+5V
GND
GND
+12V
CN8
1 2 3 4 5 6
P G P
N N S
W N
C W B
C
_ D
_ 5
B
O V
N
N
CN7
1
2
3
4
