SBC82400 ISA Half-Size CPU Board Series User's Manual

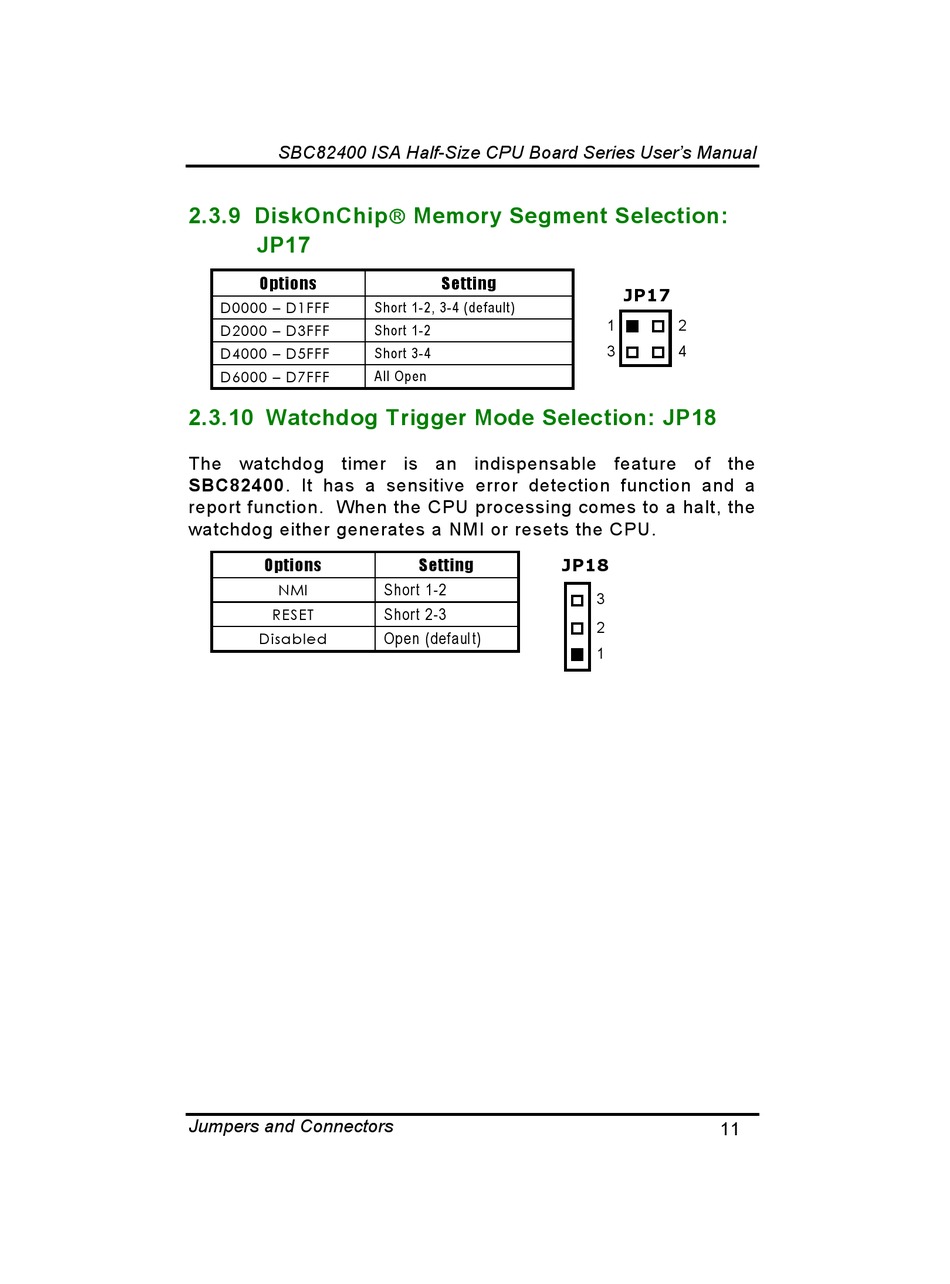

2.3.9 DiskOnChip Memory Segment Selection:
JP17
Options
D0000 – D1FFF
D2000 – D3FFF
D4000 – D5FFF
D6000 – D7FFF

2.3.10 Watchdog Trigger Mode Selection: JP18

The watchdog timer is an indispensable feature of the
SBC82400. It has a sensitive error detection function and a
report function. When the CPU processing comes to a halt, the
watchdog either generates a NMI or resets the CPU.
Options
NMI
RESET
Disabled
Jumpers and Connectors
Setting
Short 1-2, 3-4 (default)
Short 1-2
Short 3-4
All Open
Setting
Short 1-2
Short 2-3
Open (default)
JP17
1 2
3 4
JP18
3
2
1
11
