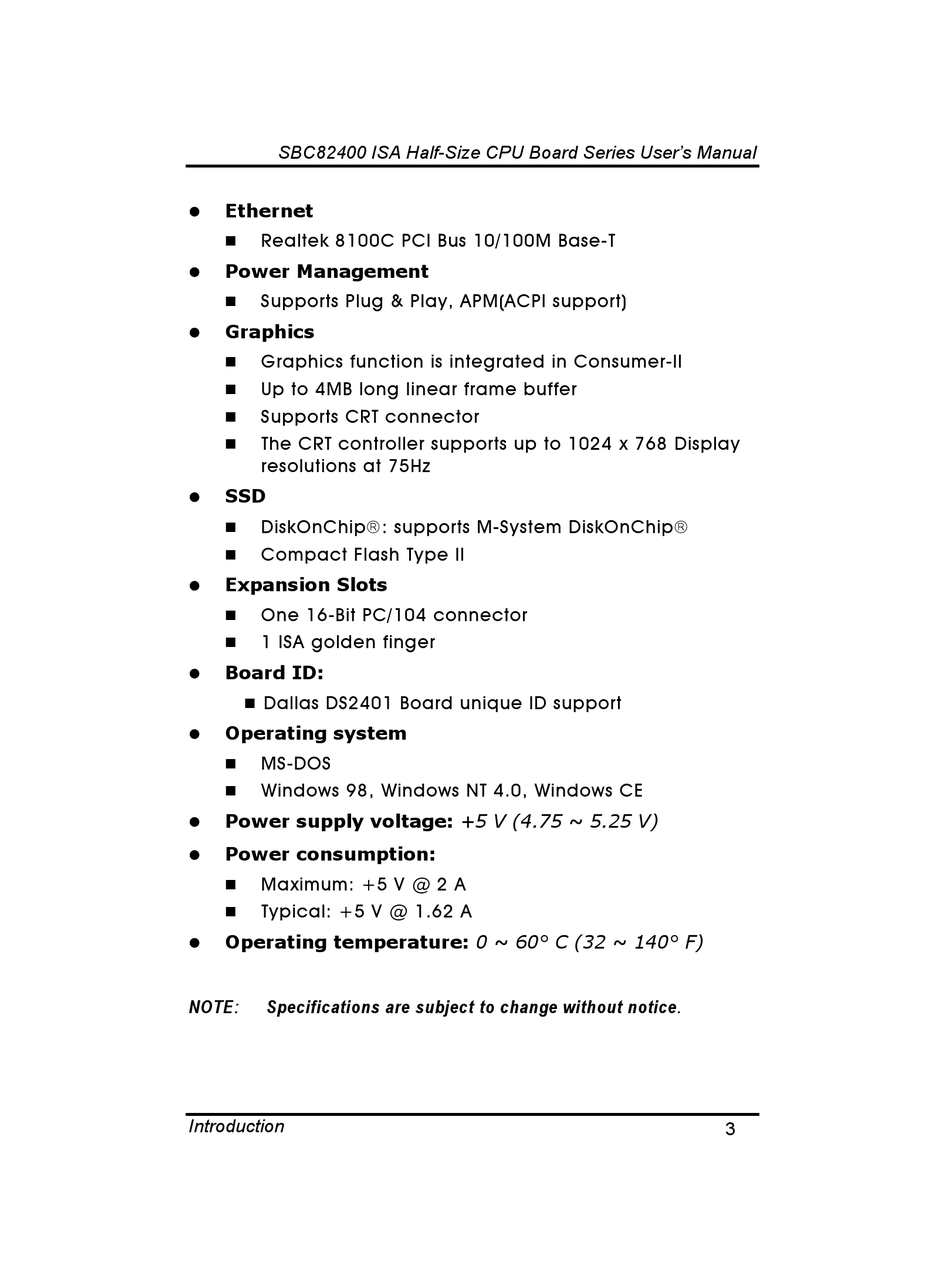

AXIOMTEK SBC82400 User Manual page 9

SBC82400 ISA Half-Size CPU Board Series User's Manual
Ethernet
Realtek 8100C PCI Bus 10/100M Base-T
Power Management
Supports Plug & Play, APM(ACPI support)
Graphics
Graphics function is integrated in Consumer-II
Up to 4MB long linear frame buffer
Supports CRT connector
The CRT controller supports up to 1024 x 768 Display
resolutions at 75Hz
SSD
DiskOnChip: supports M-System DiskOnChip
Compact Flash Type II
Expansion Slots
One 16-Bit PC/104 connector
1 ISA golden finger
Board ID:
Dallas DS2401 Board unique ID support
Operating system
MS-DOS
Windows 98, Windows NT 4.0, Windows CE
Power supply voltage: +5 V (4.75 ~ 5.25 V)
Power consumption:
Maximum: +5 V @ 2 A
Typical: +5 V @ 1.62 A
Operating temperature: 0 ~ 60° C (32 ~ 140° F)
NOTE: Specifications are subject to change without notice.
Introduction
3
