2.4.7 Ethernet Connector: LAN1

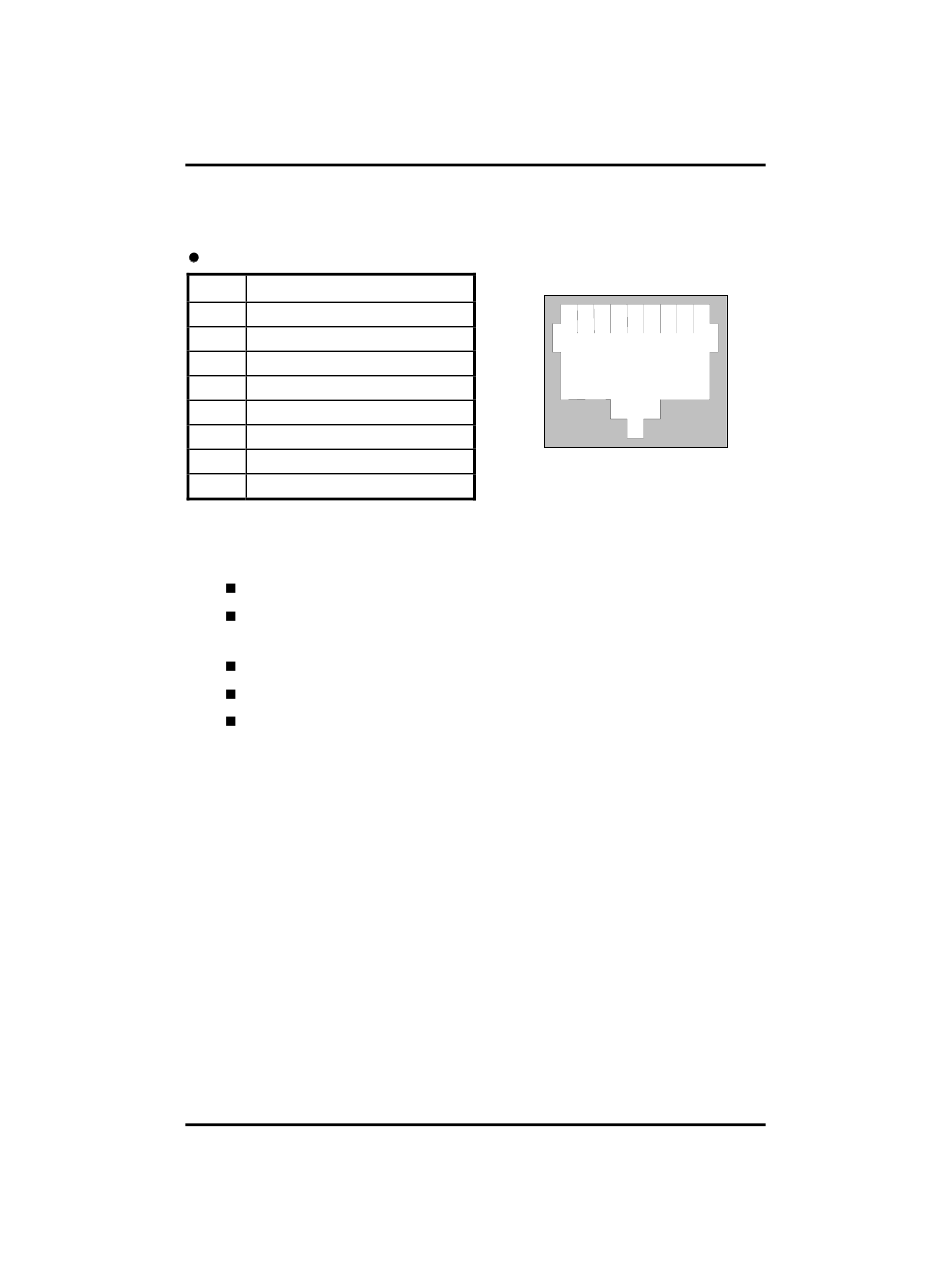

LAN1: RJ-45 Connector Pin Assignment
Pin Signal
Tx+ (Data transmission positive
1
2 Tx- (Data transmission negative)
Rx+(Data reception positive)
3
4 RJ45 termination
RJ45 termination
5
6 Rx- (Data reception negative)
RJ45 termination
7
8 RJ45 termination
2.4.7.1 Features
10Mb/s and 100Mb/s operations
Supports 10Mb/s and 100Mb/s N-Way auto
negotiation
Full duplex capability
Full compliance with PCI Revision 2.1
PCI Bus Master data transfers
2.4.7.2 Drivers Supported
Bundled with popular software drivers, the SBC82400 Ethernet
interface allows great flexibility to work with all major
networking operating systems including Novell NetWare v2.x,
v3.x, v4.x, Microsoft
Win95/98/ME/2000/XP, IBM LAN Server, SCO UNIX or other
ODI, NDIS and Packet drive compliant operating systems
Jumpers and Connectors
1 2 3 4 5 6 7 8
LAN Manager, Win3.1,
RJ-45
Win NT,
