INFORMATION: Besides the items mentioned above, CATRAX Automatic
Plus can be provided with counter kit and display kit.

5.2 Floor drilling:

Before installing CATRAX Automatic Plus, check:
1. The place chosen for the installation.
2. If there is a power source or electric socket nearby (ducts for connection).
3. If the place chosen is adequate for the installation of the access controller (indoors).
4. If there will be enough space (minimum 5 cm) between the rear of the CATRAX
Automatic Plus column and the wall. This space is important in order to provide access
to the upper panel and plug's locks for the cables passage.
5. If there will be enough space for the arms after CATRAX Automatic Plus is
assembled.
6. If the floor is in conditions to receive anchor bolts (minimum of 4 cm of FCK15 M.P.A.
concrete or equivalent).
ATTENTION: Since the CATRAX Automatic Plus's installation requires
floor drilling, it is important that the location be chosen carefully.

5.3 Column fixation:

To fix the column to the floor, observe the following steps and the indicated images:

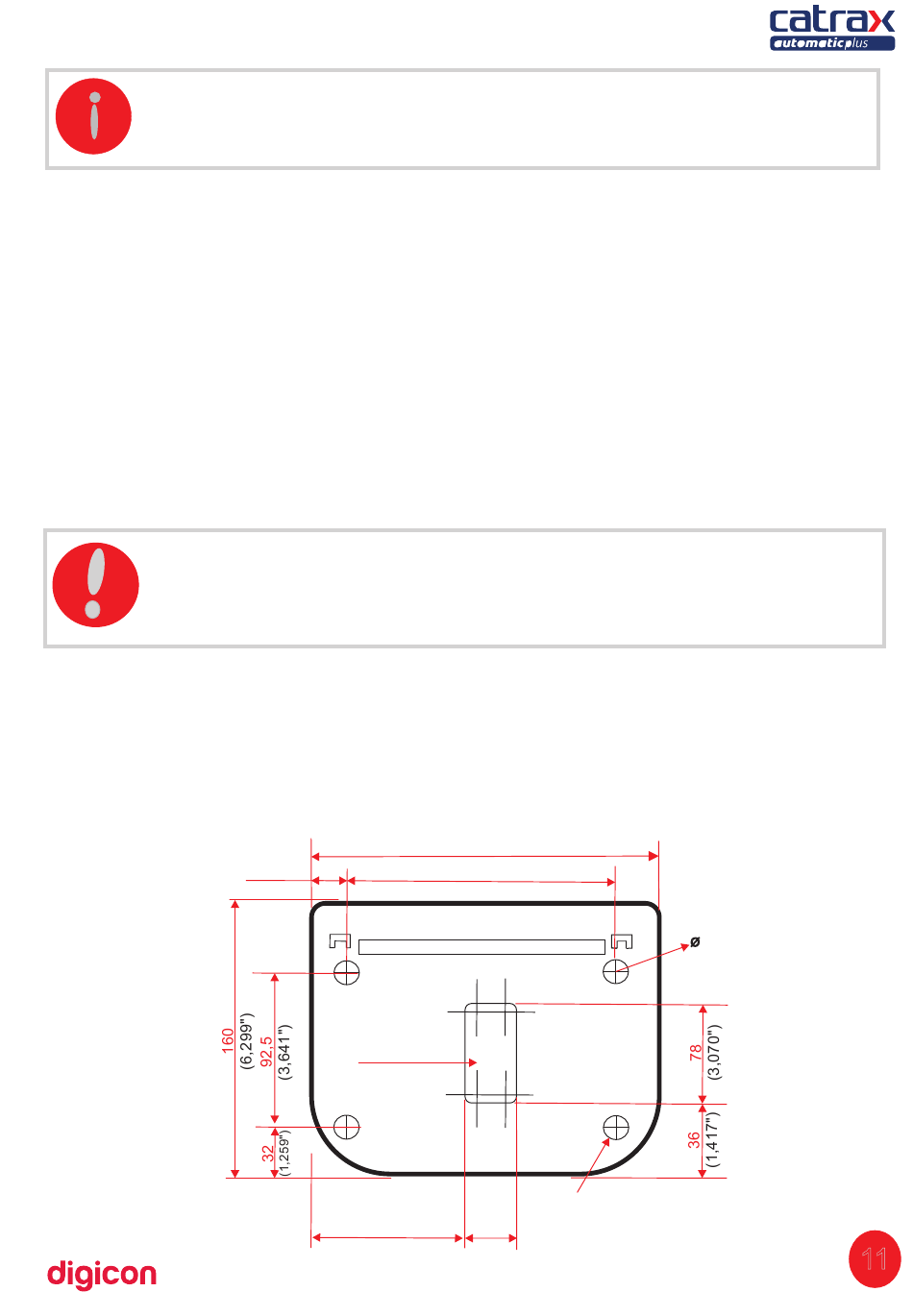

1. D rill the floor with 3/8" drills (then use a 12mm or the ½" drill). Make four external
holes, according to the measures indicated in the image below:
20
(0,787")
Cables' output
79,5
(3,129")
210 (8,267")
170 (6,692")
Fixing perforation
51
(2,007)
12,5 (4x) (0,492")
11
