4.1 Catrax Automatic Plus operation:

CATRAX Automatic Plus has bidirectional motorized turning with two 24 Vcc
electromagnets for activating the locks.
It also includes a microprocessor control board, where a signal enabling passage is
sent through one of the inputs, depending on the passage direction. If this signal is
recognized, the equipment will allow the turning of the arm of CATRAX Automatic Plus.
After half of the turning is complete (60 degrees), a 400 milliseconds returning signal
will be sent, informing the passage direction. After the signal, the arm cannot be
returned to the previous position.
Depending on the CATRAX Automatic Plus model and configuration, if the passage is
forced without the enabling signal, an electromagnet will be activated to prevent turn.
In addition, the equipment can emit a signal for a sound alarm and/or the exhibition of
a red X on the upper panel display (models with pictogram). In this case, a return
signal will be sent, indicating that the turnstile was forced, informing the direction of
turn.

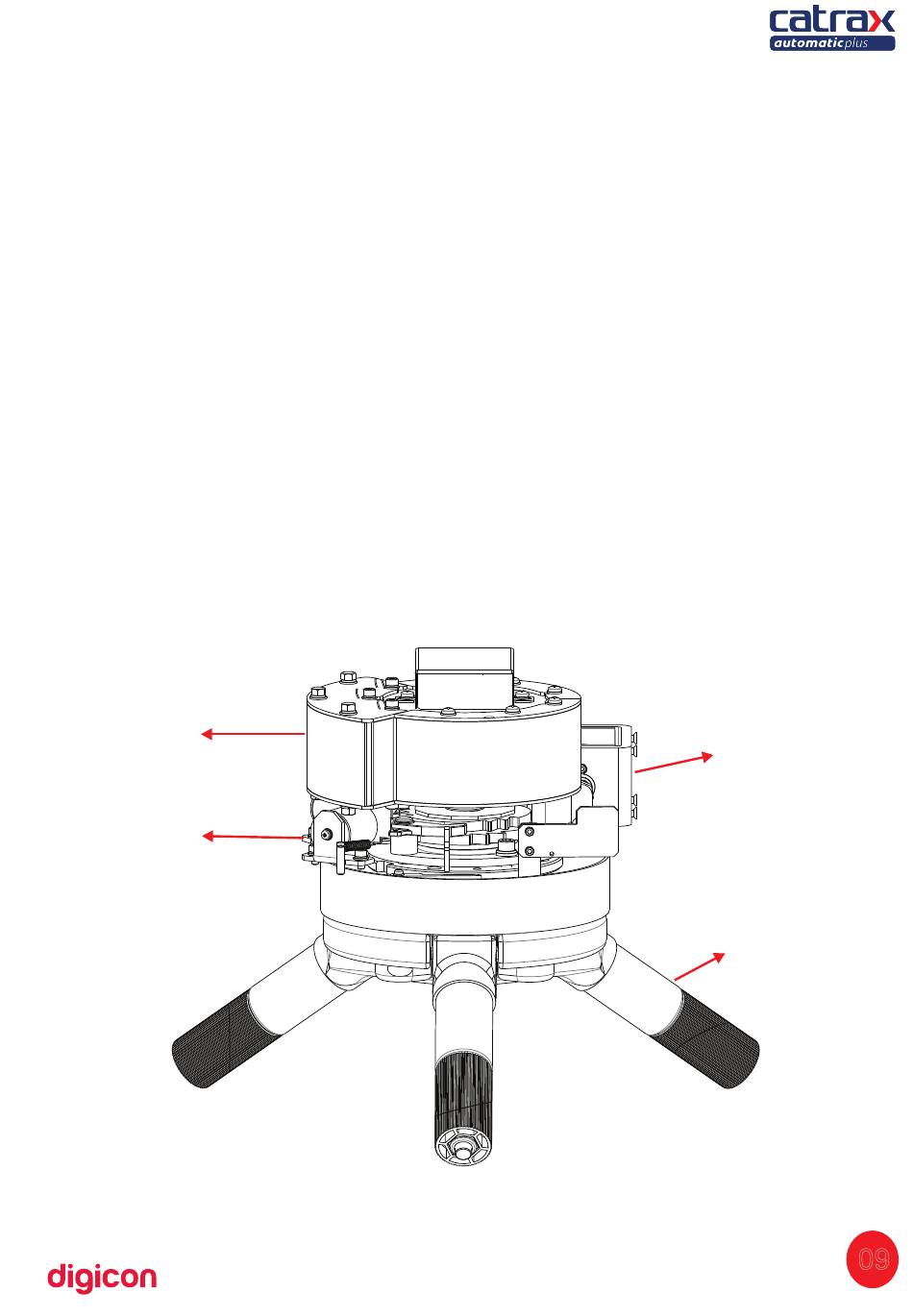

The image below shows the operation mechanism of CATRAX Automatic Plus.
Engine
Locks
Arn-drop
solenoid
(BQC)
Mini arm
