Summary of Contents for digicon dGate

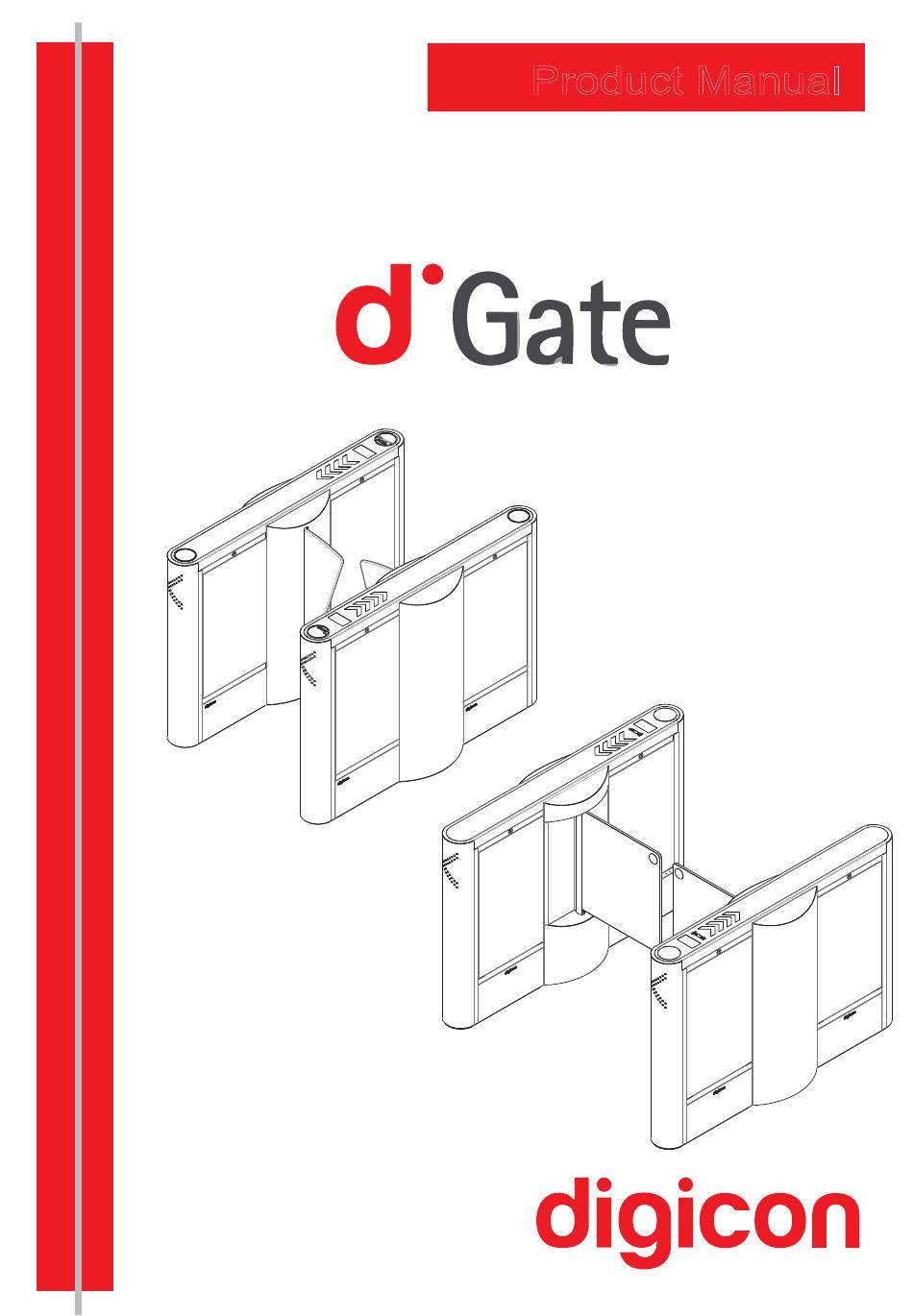

- Page 1 Product Manual...
- Page 3 Digicon S.A. Code: 069.31.213 Version: 02 Digicon S.A. Controle Eletrônico para Mecânica This manual was elaborated by: Documentation Sector - EDS...
-
Page 4: Table Of Contents
4.1.Block dGate operation .................. 5. Installation and assembly ................5.1.Unboxing....................5.2.Preparing for fixing ..................5.3.Fixing to the floor ..................5.4.Access to dGate after assembly ..............6.Power connection ................... 6.1.Connections between cabinets ............... 6.2.Electric panel ....................6.3.Electric power and logic supply .............. -
Page 5: Important Instructions
You can see, below, the symbols that will appear in this manual, signaling important moments. It is essential to pay attention to them. TIP: Indicates something Digicon considers important. CAUTION: Indicates a moment of extreme caution when handling the equipment/product. -
Page 6: Orientation
Digicon presents a solution thought out in the smallest details to bring innovation, quality, and design to the access control market. dGate is born as the results of an intense process of research in world tendencies and a thorough... -
Page 7: Features Of Dgate
Features of block dGate The access control system dGate has a motorized system for opening and closing access doors activated after identification and authorization of user access. A system of sensors is used to identify and avoid passage of non-authorized people – bobbing attempts. -
Page 8: Block Dgate Operation
(access controller board is required. Ex.: board). A system of sensors is used to identify and avoid the passage of non-authorized people or bobbing attempts. -
Page 9: Installation And Assembly
As the items inside the package can vary (depending on the client's requests), it is important to perform a cautious visual inspection before installing and assembling the turnstile. A checklist that works as a guide during inspection accompanies all Digicon packages. -
Page 10: Preparing For Fixing
4. If the floor has conditions to receive anchor bolts (at least 4cm of 15 M.P.A. concrete or equivalent). ATTENTION: Once the block dGate installation requires floor drilling, it is extremely important that the place of installation be chosen carefully. 5.3 Fixing to the floor The image below indicates the fixing points on the floor. - Page 11 With the holes for fixing the turnstile done, install the fixing tie rods according to the image below. Digicon recommends using a capsule chemical anchorage by Hilti www.hilti.com.br Step by step: 1. Using a 12mm drill, make a hole 90mm deep (tie rods M10).
- Page 12 5. Secure the tie rod in the drill and screw it in until it reaches the bottom of the hole or until the mark in the rod is leveled with the ground. 6. Apply the drill until the chemical material reaches the surface. 7.
-
Page 13: Access To Dgate After Assembly
fixings with minimal distance from the edge and/or spacing. Access to block dGate after assembly: After the block dGate is installed and assembled, access to the interior of the equipment can be done with the key that accompanies the equipment, in two ways: Via the door that grants access to the electric panel;... -
Page 14: Power Connection
220(8.661") 598(23.543") Embedded boxes 220(8.661") 188(7.401") 298(11.732") 708(27.874") INFORMATION: The measures of block dGate are illustratein and (Inches), Ÿ I PNE model, the block body measures 360mm of width. Ÿ Conduits of Block seen from below: 50 mm of diameter... - Page 15 TIP: Separate the power network from the logic network. INFORMATION: Measures of block dGate are illustrated in millimeters. Ÿ There are three interconnection possibilities for the blocks: right side, Ÿ left side, and center. The colors of the cables are illustrative only. The distance between the Ÿ...
-
Page 16: Electric Panel
Electric panel The electric panel presents the (Passage control Module), supplies (12Vcc), and control (Central processing unit). If the integrator requires more space, the block has another area destined for it. In this area, there are the connections of the passage sensors and power. -
Page 17: Electric Power And Logic Supply
Electric power and logic supply: The block dGate is fed with tension from to 240 Vca. Digicon recommends the regulation 5410 as reference to the equipment's electrical connections. In one of its columns, the turnstile has a borne where the power cables (electrical supply) and the ground wire must be connected. - Page 18 Enabling passage through dry contact (input): Connection borne 02 borne 01 Input Output U U U U U U U U U U (Integrator’s controlboard) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Switch (input): Connection borne 02 borne 02 (optional) Ÿ...
-
Page 19: Optional Items
7.Optional items dGate is compatible with most access control technologies in the market today; however, Digicon offers a range of optional items that allow enhancing and matching the equipment's performance to the client's needs. See the description of each of... -
Page 20: Pictograms
The orientation pictogram is installed on the edges of the equipment and is also represented by red and green arrows. The red pictogram informs the user that the block dGate is not operating in that direction or that, at the time, passage is not allowed. -
Page 22: Sensors
Sensors are destined to detect the direction of the passage, user protection, and detection of unauthorized passage. 8.1 barriers of sensors The block dGate has a total of ten infrared sensors (ten transmitters and ten receptors), forming eight barriers that inform the module about the position of the pedestrian on the passage corridor. -
Page 23: Anti-Panic
9.Anti-panic Mechanism dGate The simple mechanism uses accumulated gravitational energy in a counterweight; when the block is de-energized, the doors open. In the model for users with disabilities ), opening occurs via an electric system of temporary energy storage; when the block is turned off, the engine's control board open the wings. -
Page 24: Maintenance
10.1 Door: Check the support fixation of the wings every six months. This adjustment must be performed with a torque wrench with value of 17 N.m. Fixing points: Mechanism dGate Engine's power supply Mechanism dGate Polycarbonate fixed according to With the model 500 or 900... -
Page 25: Equipment Cleaning
INFORMATION: This maintenance routine requires the use of a vacuum. 10.3 Defects and possible causes Possible causes Problem Action Block dGate will not turn on. Equipment is not receiving Check the circuit breaker and power from the grid the power network. -
Page 26: Technical Characteristics
Technical characteristics 11.1 Dimensions: 534(21.023") dGate 312(12.283") 1416(55.748") 222(8.740") 442(17.401") 1555(61.220") INFORMATION: IN PNE models, the block's body measures 360mm of width. - Page 27 1416 (55.748") (22.637") STD 500 757(29.803)- PNE 900 312(12.283") INFORMATION: M easures of the block dGate are illustrated in millimeters (inches).
-
Page 28: Other Information
11.2 Other information Characteristics Technical data 100 - 240 Vca Power supply Automatic selection Frequency 50 - 60 Hz Average time for opening/closing the 1 second door Operational temperature -5°C and 70°C 150 kg per packed Weight module Passage Inicialization: 382W Standby: 60W Operation: 252W Consumption... -
Page 29: Warranty And Technical Assistance
12.Warranty and Technical Assistance Digicon is responsible for the project, skilled labor, and quality of the materials used in the manufacturing of our products, ensuring that the equipment and all parts are free of manufacturing defects or problems. Digicon commits itself to replace or repair, as we choose, any part or equipment presenting manufacturing defects without any costs to the buyer, in our factory in Gravataí... - Page 32 94045 -420 Sales: (0xx51) 3489.8700 / 3489.8745 Technical assistance: (0xx51) 3489.8903 Email: vendas.acesso@digicon.com.br Branch office/ SP Development, Technical Assistance, and Sales Street São Paulo, 82 - Alphaville. Barueri/ SP CEP 06465 -130 Sales: (0xx11) 3738.3500 Email: vendas.acesso@digicon.com.br Home page: www.digicon.com.br...
