INFORMATION: n the central slot, destined to the passage of cables, it is
necessary to measure the cables according to the opening's size.
TIP: As an optional item, Digicon can provide a steel template for fixing
CATRAX Automatic Plus, containing the exact demarcations of the
necessary holes.
2. Clean the holes, removing any debris from drilling.
3. Place the external part of the bolts in the holes. Leave about 25mm of the bolt out of
the hole.
TIP: We recommend the bolts by the brand Tecnart, model AF38110,
3/8x4''
4. Position the column and fasten it to the floor with the four screws that accompany
the bolts. Use a flex-head socket wrench with ¾'' or an articulated socket wrench.
5.4 Montagem dos braços e tampas:
After drilling the floor and assembling the column, it is possible to assemble the arms
and plastic covers.

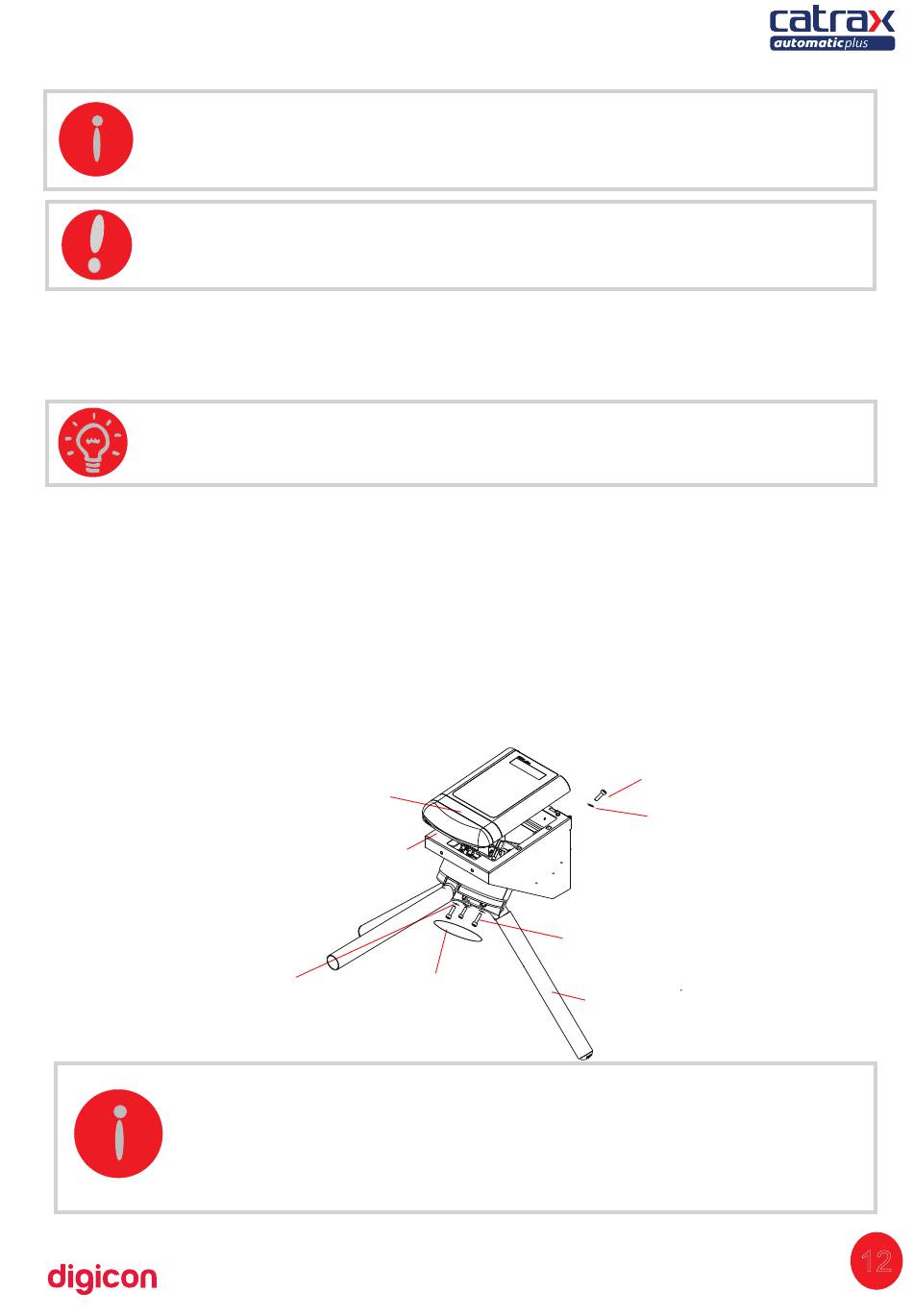

The image below shows the specific parts of CATRAX Automatic Plus's arms and upper
frontal cover with assembling instructions.
Upper cover plastic
Spring washer M6
I NFORMATION
- The cover for accessing the screws is fitted into place, so pressure it to
open or close it.
- To assemble the arms of CATRAX Automatic Plus, use an Allen n. 8
wrench.
I
Screw M3x16
Screwa access cover
:
Screw M3x8
Flat washer M3
Allen M6x20 Screw
Arm
