5.2 Floor drilling
Before installing Automatic Master, check:
1. if the floor has conditions to receive anchor bolts (at least 4cm of FCK15 M.P.A.
concrete or equivalent)
2. If there is a power source or electric socket nearby (ducts for connection).
3. If the place chosen is adequate for the installation of the access controller (indoors).
4. If access to the Automatic Master's locks is clear.
5. If there will be enough space for the arms after Automatic Master is assembled.
ATTENTION: For more details on the dimensions of Automatic Master's
components, see item 8. Technical characteristics.
Once you observe these recommendations, proceed to the installation:

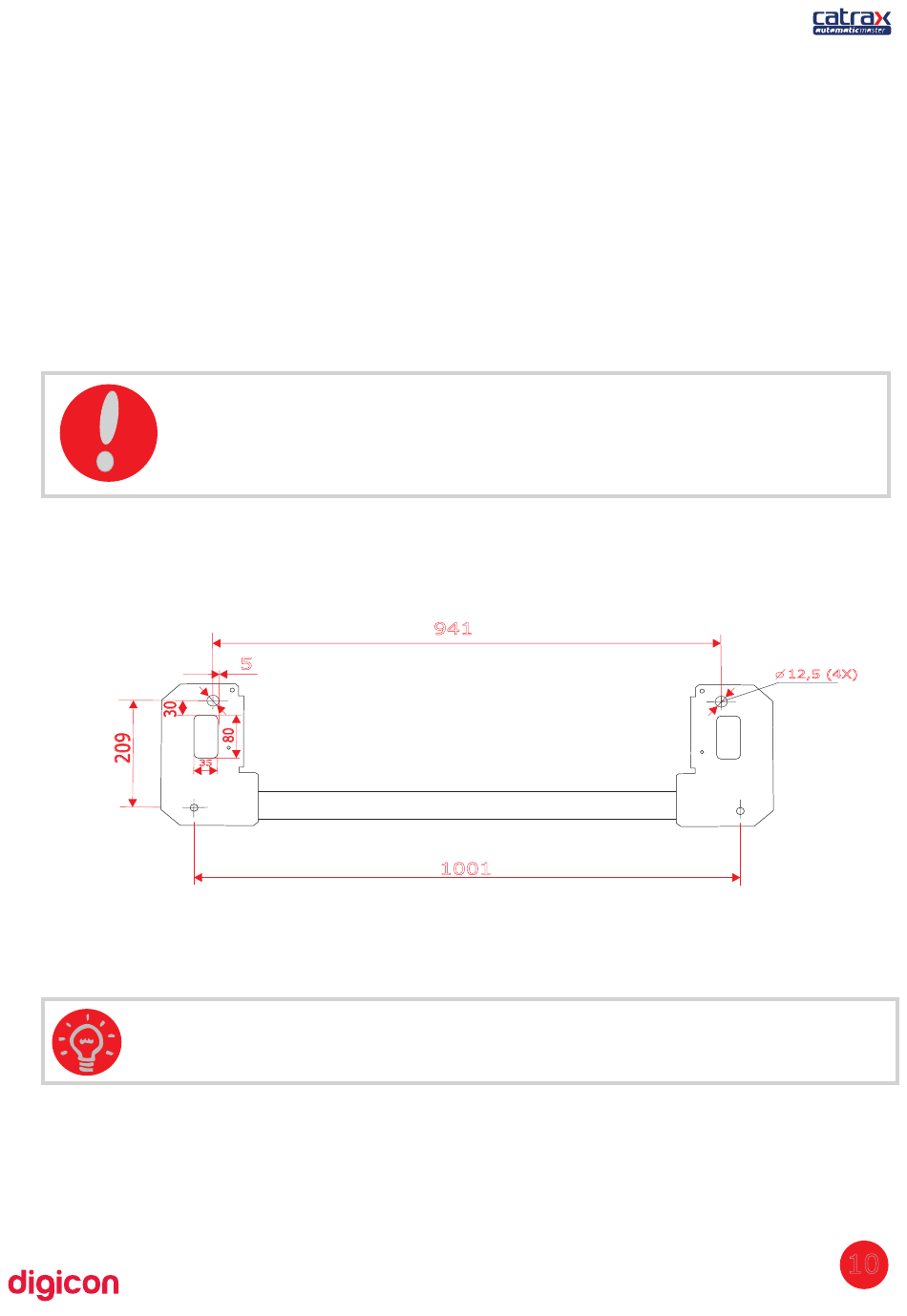

1. D rill the floor with 3/8" drills (then use a 12mm or the ½" drill). Make two holes in
each column of Automatic Master, according to the measures indicated in the image
below:
35
2. Clean the holes, removing any debris from drilling.
3. Place the external part of the bolts in the holes. Leave about 25mm of the bolt out of
the hole.
TIP: We reccomend anchor bolts by Tecnart, model AF38110, 3/8x4".
4. Position the column and fasten it to the floor with the four screws that accompany the
bolts. Use a flex-head socket wrench with ¾'' or an articulated socket wrench.
and column fixation
5
941
1001
12,5 (4X)
10
