6.6.1 Assembling the arms

After positioning and aligning the turnstile in its operation place, it is time to assemble
the arms. Make sure you have all the necessary items and that the turnstile is turned
off, since you have to unscrew the bowl to attach the arms.

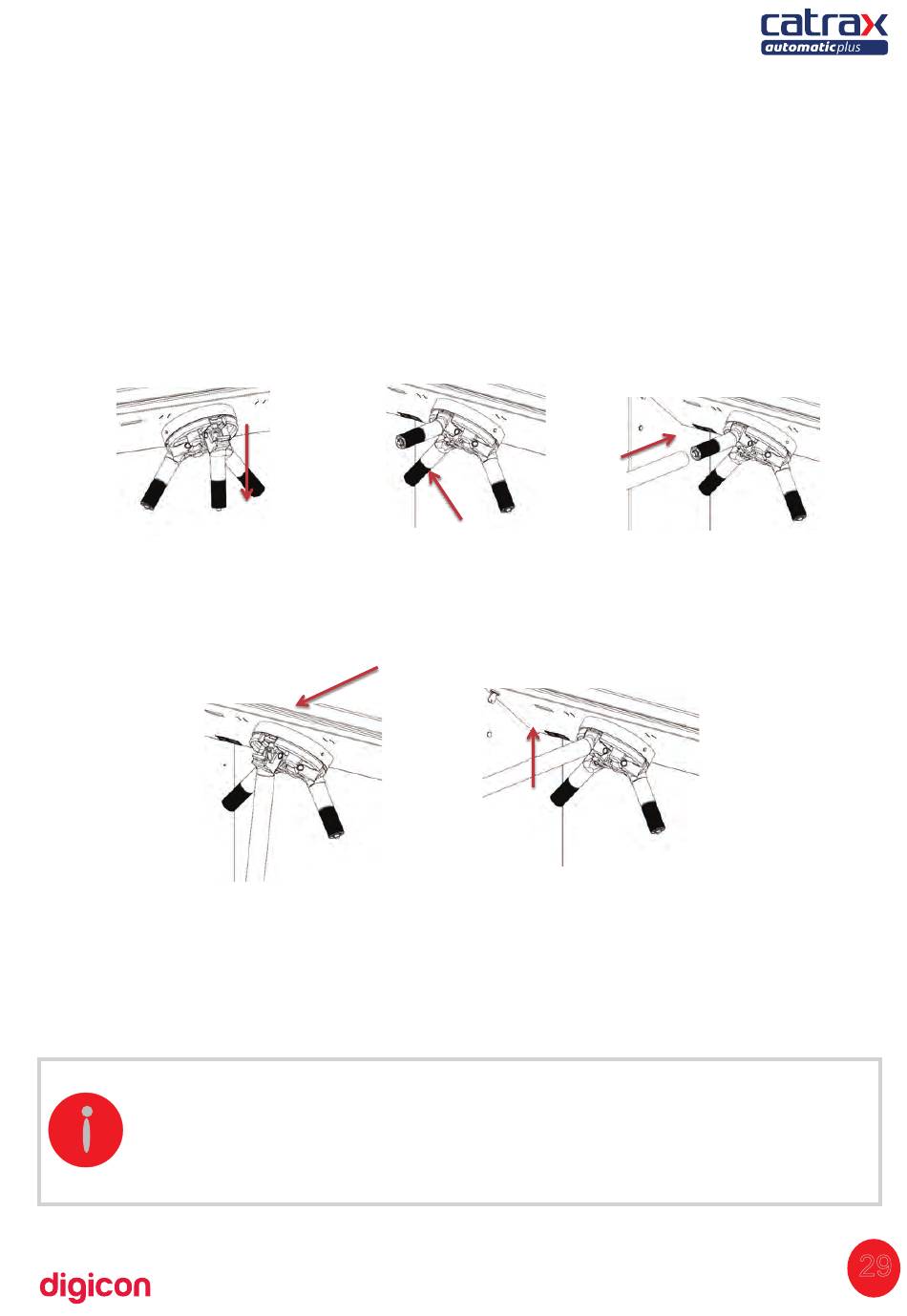

The arms are provided disassembled. To assemble them, follow the instructions
provided below:
The wrench used for assembling must be an Allen n.8 and the screw must be tightened
to the maximum to ensure good fixation. All three arms must be attached to the same
central upper point.
st
1 Let the mini
arm dop
th
4 Fix the screw inside the
mini arm using an Allen
Repeat this operation in the three arms and make sure all of them are well fixed.
INFORMATION:
- The cover for accessing the screws is fitted into place for pening/closing
it.
- To assemble the arms of CATRAX Automatic Plus, use an Allen n.8 wrench.
nd
2 Make sure the mini
arm's plastic part is fitted
in to the steel part
n.8 wrench
rd
3 Fit the stainless steel
arm in the mini arm
th
5 Put the arm back in to
its normal position
.
o
