5.6 Connecting to power and data networks:
The Turnstile is powered by a 24 Vcc supply (located inside the turnstile). The ower
supply can be of 100 to 240 Vca. Digicon recommends the regulation NBR 5410 as
reference to the equipment's electrical connections.

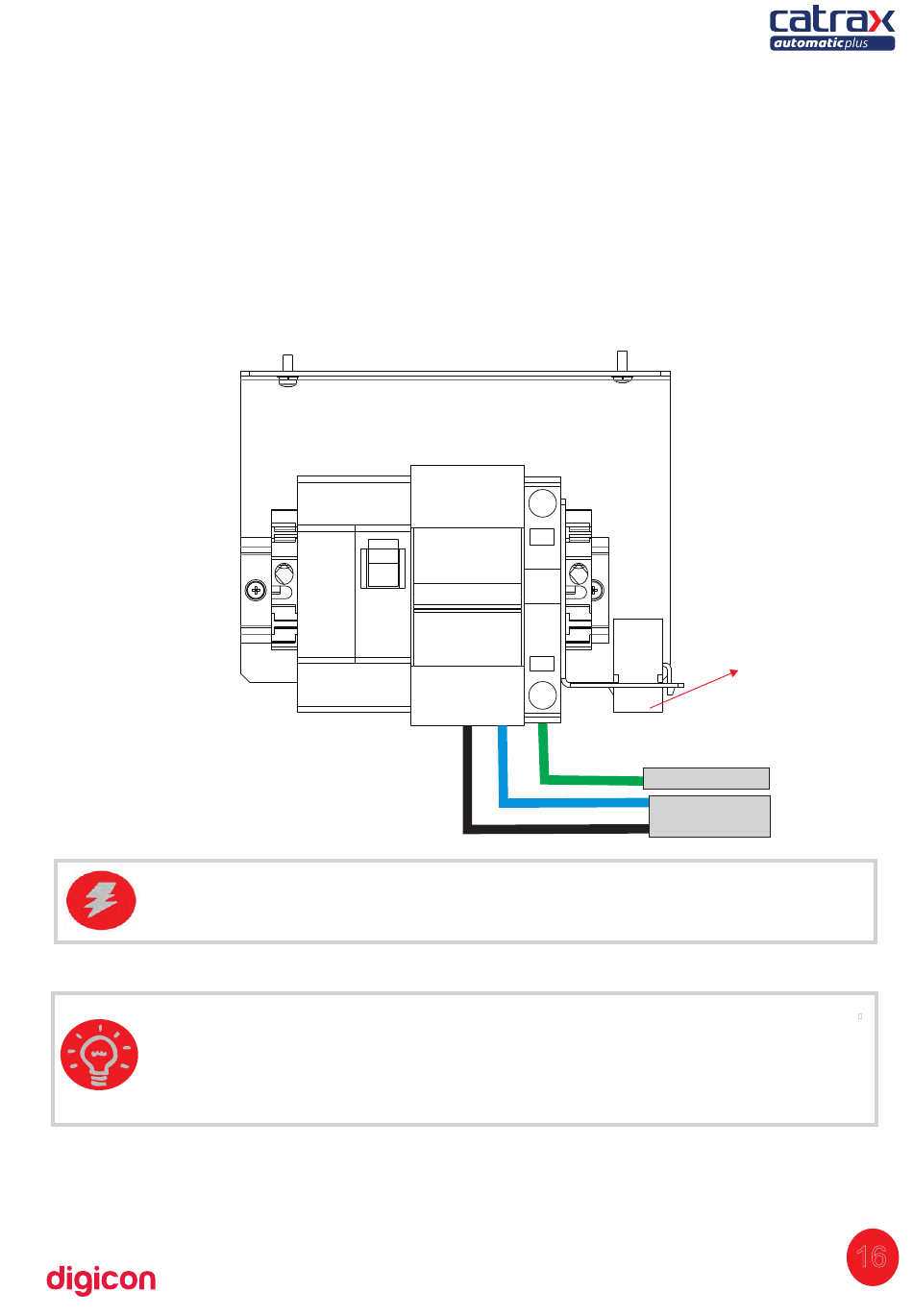

In one of its columns, the turnstile has circuit breakers in its columns where the power
cables (electrical supply) and the ground wire must be connected.
CAUTION: Electric connections must be performed by qualified
professionals.
TIP: We recommend that you use a good quality AC cable and ground wire
and with compatible dimensions to the distance until the switchboard. The
data cable must be type CAT5E. Manufacturers: FURUKAWA and AMP.
p
Input for data
cables
Groundwire
Power
network
16
