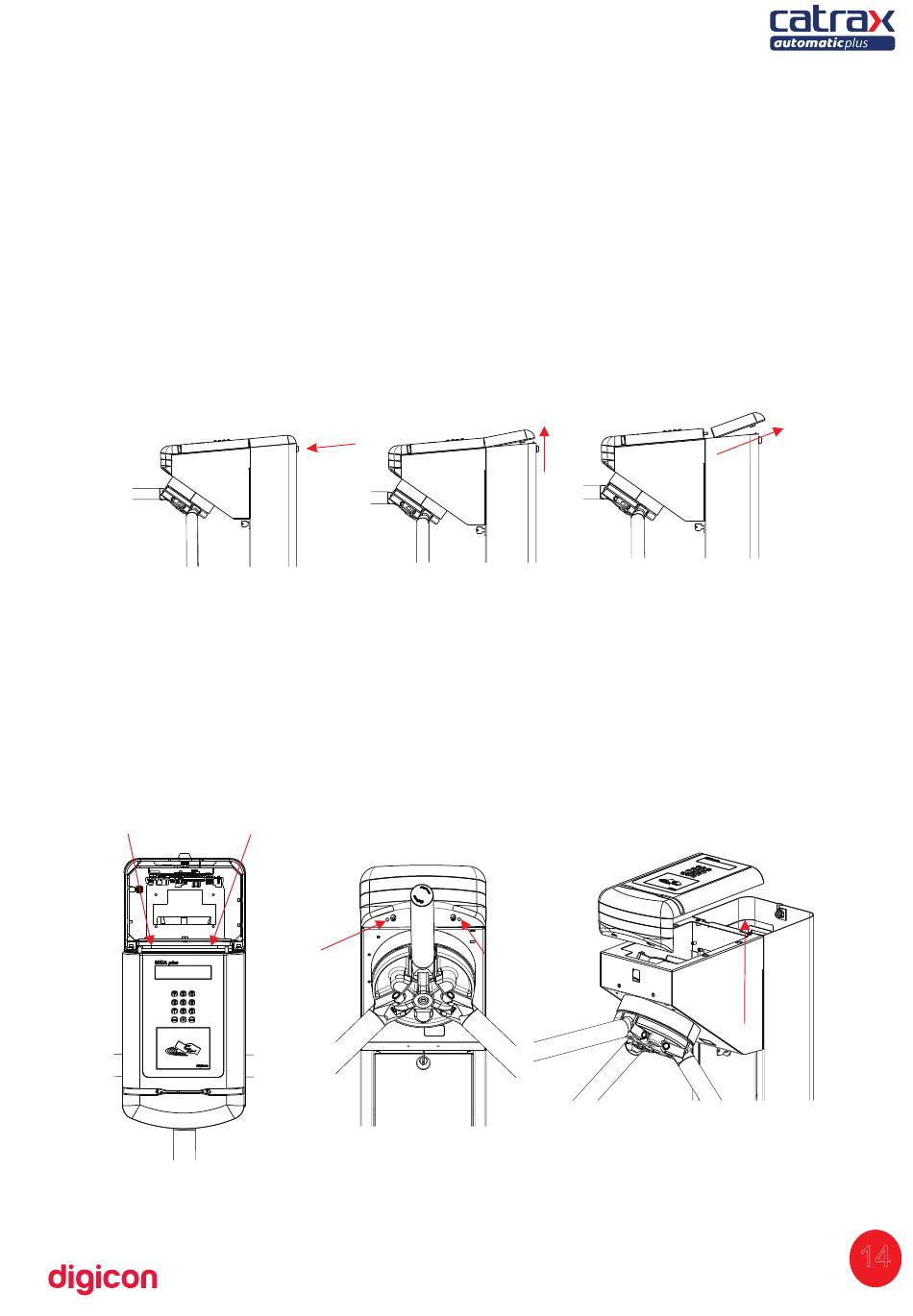

5.5 Access to Catrax Automatic Plus after assembly:

After CATRAX Automatic Plus is installed and assembled, access to the interior of the
equipment can be done with the key that accompanies the equipment, in three ways:

5.5.1 Rear cover

1º Open the lock with the smaller key (clockwise)
2º Carefully raise the cover
3º Brag the cover backwards
As shown below:

5.5.2 front cover

1º Unscrew the screws inside the turnstile that hold the cover
2º Unscrew the screws out of the cover
3º Pull the cover upwards
As shown below:
