5.2

Floor drilling and column fixation

Before installing
CATRAX Automatic Clip
1. The place chosen for the installation.
2. If there is a power source or electric socket nearby (ducts for connection).
3. If the place chosen is adequate for the installation of the access controller (indoors).
4. If there will be enough space (minimum 5 cm) between the rear of the CATRAX C
Automatic Clip lip column and the wall. This space is important in order to provide
access to the upper panel and plug's locks for the cables passage.
5. If there will be enough space for the arms after CATRAX Automatic Clip is assembled.
6. If the floor is in conditions to receive anchor bolts (minimum of 4 cm of FCK15 M.P.A.
concrete or equivalent).
ATTENTION: To see details on the dimensions of CATRAX Automatic Clip,
see item 8 (technical characteristics).

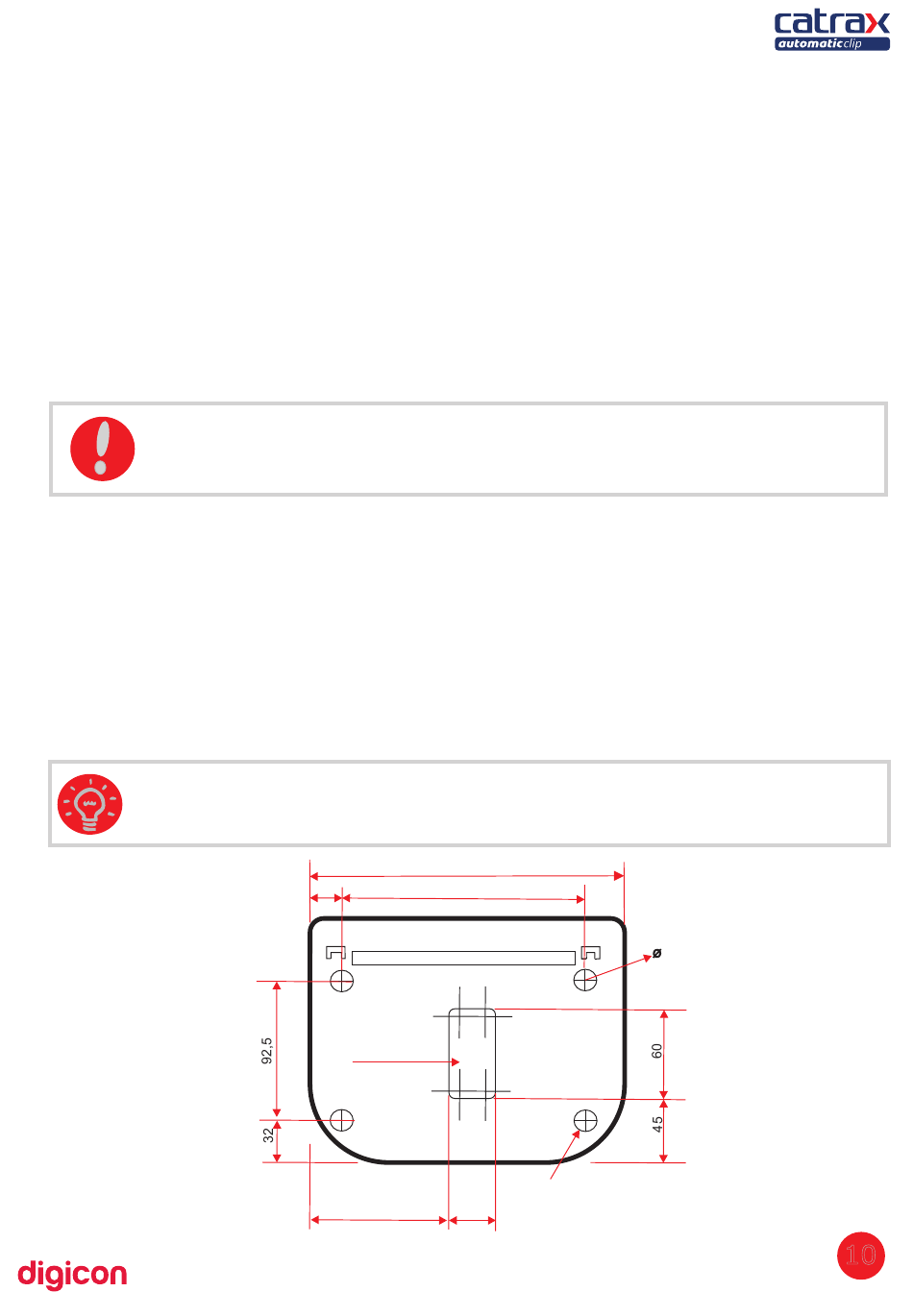

To fix the column to the floor, observe the following steps and the indicated images:
D rill the floor with 3/8" drills (then use a 12mm or the ½" drill). Make four external
1.
holes, according to the measures indicated in the image below:
2. Clean the holes, removing any debris from drilling.
3. Place the external part of the bolts in the holes. Leave about 25mm of the bolt out of
the hole.
4. Position the column and fasten it to the floor with the four screws that accompany
the bolts. Use a flex-head socket wrench with ¾'' or an articulated socket wrench.
TIP: We recommend the bolts by the brand Tecnart, model AF38110, 3/8x4''.
, check:
210
20
170
Saída de cabos
90 30
12,5 (4x)
Fixing drilling
10
