digicon catrax automatic clip Product Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Product manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the catrax automatic clip and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for digicon catrax automatic clip

Summary of Contents for digicon catrax automatic clip

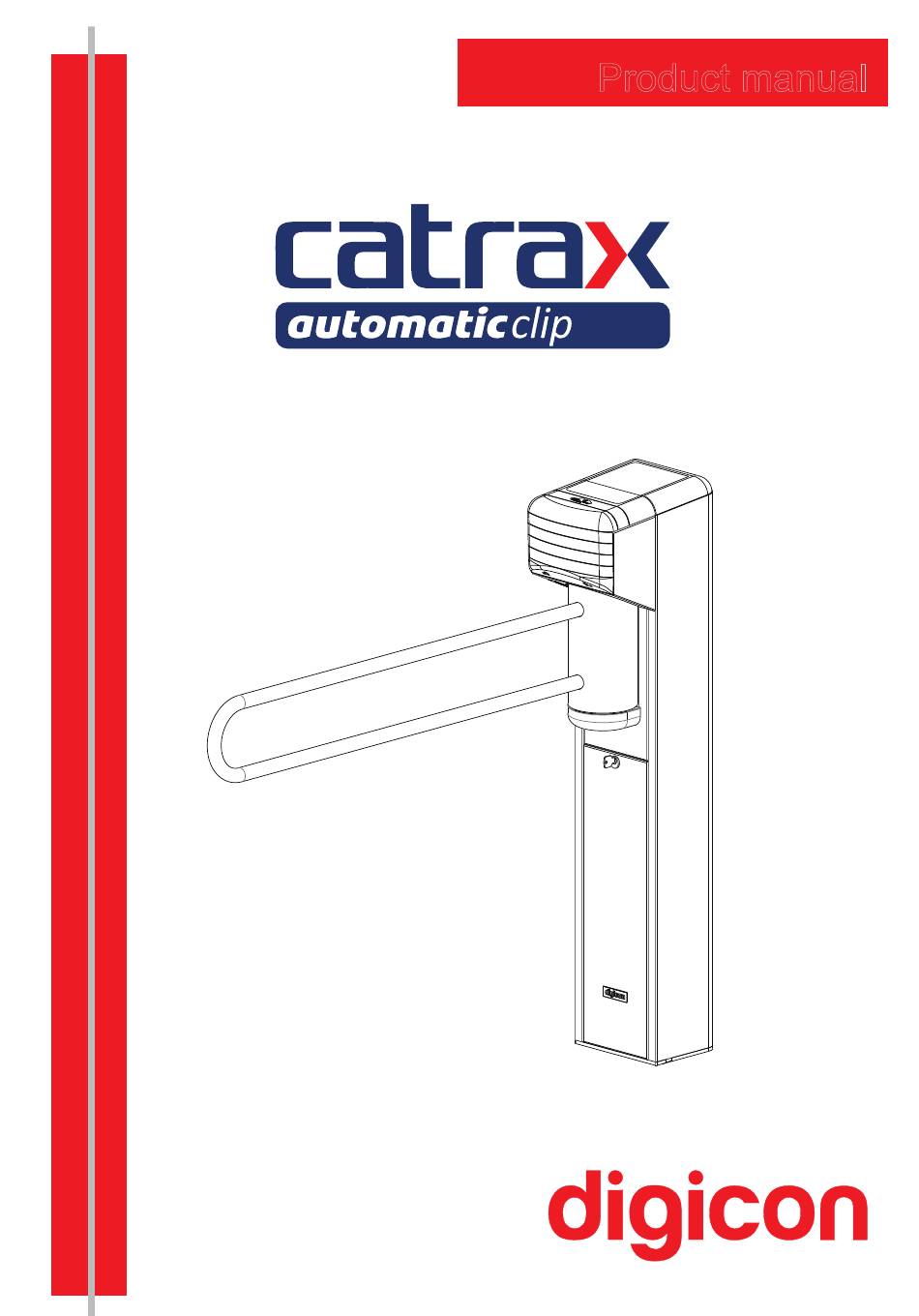

  • Page 1 Product manual...
  • Page 3 Digicon S.A. Manual code: 069.31.200 English - Revision: 02 This manual was elaborated by: Digicon S.A. Electronic Control for Mechanics Documentation Sector - EDS...

  • Page 4: Table Of Contents

    5.1 Unboxing ..................09 5.2 Floor drilling and column fixation ............10 5.3 Assembly the arms ................11 5.4 Access to Catrax Automatic Clip after assembly ........12 5.5 Connetion to power network ..............13 6. Installation/Assembly optional items ............14 6.1 Collecting box kit ................14 6.1.1 Connecting collector kit to control board ..........15...

  • Page 5: Important Instructions

    You can see, below, the symbols that will appear in this manual, signaling important moments. It is essential to pay attention to them. TIP: Indicates something Digicon considers important. CAUTION: Indicates a moment of extreme caution when handling the equipment/product ATTENTION: Indicates a moment when your observation skills should be extremely productive.

  • Page 6: Orientations

    Keep this manual for future consultations. Ÿ Digicon reserves its right to alter its products at any moment to adapt them to more Ÿ recent technical advancements. Digicon maintains its right to alter the information contained in this manual without Ÿ...

  • Page 7: Features Of Catrax Automatic Clip

    4. Features of Catrax Automatic Clip an access controller in the model mini turnstile (column CATRAX Automatic Clip, type), destined to individuals with special needs, presents one arm with brushed stainless steel (AISI 304) finishing and two-directional mechanism, with horizontal movement.

  • Page 8: Catrax Automatic Clip Operation

    Clip's items, see item 8. Technical characteristics. Catrax Automatic Clip operation CATRAX Automatic Clip has a two-dimensional rotation system with two 24 V c electromagnets for activating the locks. It includes a microprocessor control board where a signal enabling passage is sent through one of the inputs, depending on the passage direction.

  • Page 9: Installation/Assembly

    As the items inside the package can vary (depending on the client's requests), it is important to perform a cautious visual inspection before installing and assembling the turnstile. A checklist that works as a guide during inspection accompanies all Digicon packages.

  • Page 10: Floor Drilling And Column Fixation

    5. If there will be enough space for the arms after CATRAX Automatic Clip is assembled. 6. If the floor is in conditions to receive anchor bolts (minimum of 4 cm of FCK15 M.P.A.

  • Page 11: Assembly The Arms

    3. Use an Allen n.5 wrench to fasten the arms to the holes using the bolts and washers provided with the product. INFORMATION: The cover to access the screws is open/closed by pressure (fitting). To assemble the CATRAX Automatic Clip's arms, use an Allen n.5 wrench.

  • Page 12: Access To Catrax Automatic Clip After Assembly

    Accessing Catrax Automatic Clip after assembly After is installed and assembled, access to the interior of the CATRAX Automatic Clip equipment can be done with the key that accompanies the equipment, in two ways: - Rear cover and frontal cover: open the lock with the key at the rear of CATRAX ;...

  • Page 13: Connetion To Power Network

    The Turnstile is powered by a 24 V c supply (located inside the turnstile). The power supply can be of 100 to 240 V . Digicon recommends the regulation NBR 5410 as reference to the equipment's electrical connections. In one of its columns, the turnstile has circuit breakers in its columns where the power cables (electrical supply) and the ground wire must be connected.

  • Page 14: Installation/Assembly Optional Items

    Installing/assembling optional items CATRAX Automatic Clip is compatible with most access control technologies in the market today; however, Digicon offers a range of optional items that allow enhancing and matching the equipment's performance to the client's needs. See the description...

  • Page 15: Connecting Collector Kit To Control Board

    12 11 10 9 8 7 6 5 4 3 2 1 INPUTS CN8 OUTPUTS CN9 DIGICON CONTROL BOARD BOX SENSOR ELECTROMAGNETS TURNSTILE SENSORS INFORMATION: - The box for cards is part of the kit and is positioned under the collecting kit.

  • Page 16: Operational Pictogram Kit

    Operational pictogram kit The operational pictogram kit visually signals if the passage is cleared or not (through green and red pictograms) on CATRAX Automatic Clip's front. Passage Passage cleared blocked (green) (red) TIP: To obtain information on the configuration of the pictogram, see item...

  • Page 17: Power Suply

    Power supply Among the main advantages of this optional item, is its adaptation capability to the voltage variations often found in installation sites – the input voltage can vary between 100 and 240 V The supply's specific technical features, protections and dimensions were carefully tested and approved in hostile temperature and environmental conditions, which ensures the adequate power supply to the equipment's performance.

  • Page 18: Control Board

    CATRAX Automatic Clip's control board was designed to meet most technologies of access control terminals in the market. The controller have mechanical features and layout perfectly suited for the CATRAX Automatic Clip's needs and it is one of the best options for the equipment's operation.
  • Page 19 Signal Nome/Description BOX SENSOR 1 LED anode 2 Box Signal 3 GND 4 GND JTAG – Inner use SERIAL RS - 232 2 TX 3 RX 5 GND ENGINE 1 DATE + 2 DATE - 3 GND_485 4 (+) 24V_EXT 5 GND POWER –...

  • Page 20: Inputs

    (-) electromagnet 2 INFORMATION: - The engine (CN4) and electromagnets (CN18) cables are provided alongside CATRAX Automatic Clip. The following sections concern important aspects of CATRAX Automatic Clip control board configuration and connections of CATRAX Automatic Clip. 6.5.1 Inputs The input signals or passage clearance (HAB1 and HAB2) or anti-panic (BQC) can be originated by a relay contact, pushbutton contact, tension from 5 to 24 Vca/cc, from 110 to 220 Vca/cc.

  • Page 21: Return Signals

    Enabling passage through tension pulse is shown in the image below. It is necessary to observe the polarity of the C voltages and to use an external resistor for high voltages (110V and 220V Vac ou Vdc Vac ou Vdc 6.5.1.1 Return signals The control board has 4 return signals, two to indicate the moment, one to bob the turnstile, and one to indicate the anti-panic system's status.

  • Page 22: Sound Alarm

    6.5.1.3 Sound alarm The sound alarm output is activated by a NPN transistor (maximum 500 mA) every time that CATRAX Automatic Clip: -receives a clearance signal (two short rings) -is not cleared and is forced during 1 second (1-second rings)

  • Page 23: Pictogram

    OUTPUTS CN9 DIGICON CONTROL BOARD BOX SENSOR ELECTROMAGNETS TURNSTILE SENSORS 6.5.2 Outputs CATRAX Automatic Clip's board has outputs for return signals, electromagnets, pictogram, collecting box, and sound alarm. 6.5.3 Configuration of Control Board The switch (or dipswitch) DS1 allows programming the following actions:...
  • Page 24 DIP SWITCH DS1 CHAVE Enables sound signal Disables sound signal NO inputs NC inputs Habilitation per border Habilitation per level Blocked in both directions ON ON Blocked form right to left OFF ON Blocked from left to right ON OFF Cleared in both directions OFF OFF Enables sound signal in mid-turn...

  • Page 25: Turnstile Interface

    6.5.4 Turnstile Interface Enabling through Dry contact with 2 relays: Dry contact Enabling Clockwise Enabling anti Clockwise 7654321 Enabling both ways (Clockwise and Counter Clockwise) with 1 single relay: Dry contact (simultaneos) Relay Integrator’s controller board 7654321...
  • Page 26 Anti panic/drop arm mechanism input: Dry contact Integrator’s controller 10987 Enabling through solid state : Vdc = 5~24V Integrator’s controller board 654321 INFORMATION: CCW: Counter Clockwise CW: Clockwise...
  • Page 27 Enabling through solid state(negative): Vdc = 5~24V 54321 Integrator’s controller Activating through solid state(anti panic/Drop arm mechanism): Anti panic Vdc = 5~24V 1098 Integrator’s controller...
  • Page 28 Activating through solid state (Drop arm/Negative). Vdc = 5~24V Integrator’s controller Passage confirmation Vcc - Rel logic lever, SH in ’’disk emulation’’ DIP Ds2 n°7 in mode ON. Digital positive input Integrator’s controller 4321...
  • Page 29 Passage confirmation through disk emulation Passage confirmation through clockwise pulse Passage confirmation through ’’disk emulation’’ can be set through dip switch Ds2, nº7 in case it’s on it’ll emulate disk. On the other hand it’s off, it’ll general pulse. Passage confirmation(negative) Digital negative input Integrator’s controller 4321...
  • Page 30 Electromechanical counter connections Depends on the couter tension protection diode In case you use inductive counter it will be necessary a protection diode Counter Inductive counter...

  • Page 31: Maintenance

    7.1Preventive and corrective routine maintenance: ATTENTION: Preventive and corrective maintenance must be performed by a professional trained/qualified by Digicon S.A. Electromagnets – Periodicity: ever 7000,000 cycles This routine maintenance requires the use of a multimeter. To check for the need of corrective actions, disconnect the CN3 from the access control board and check the electromagnets' resistance.

  • Page 32: Solving Problems

    Solving problems Defect Possible causes Action It will not turn The power supply’s input Check the cables · · · cable is not connected and the fuse. properly The circuit breaker is off. · It does not The cable is broken or the Adjust the ·...

  • Page 33: Technical Characteristics

    Technical characteristics Dimensions: Equipment assembled 1010 1860 INFORMATION: he arm/clip's size can be altered according to the client's needs.
  • Page 34 Catrax digicon www.catrax.com.br 1042 INFORMATION: The measures in the images are given in millimeters Other information Gross Approx. 45 kg (package included) weight: Electromagnets’ 12Vdc / 2A power Power supply Input: 100 Vac to 240 Vac 60HZ Output: 24,0 Vcc +/- 5% 4,5 A Operational from 0ºC to 50ºC...

  • Page 35: Warranty And Technical Assistance

    Warranty and technical assistance Digicon is responsible for the project, skilled labor, and quality of the materials used in the manufacturing of our products, ensuring that the equipment and all parts are free of manufacturing defects or problems. Digicon commits itself to replace or repair, as we choose, any part or equipment presenting manufacturing defects without any costs to the buyer, in our factory in Gravataí...
  • Page 39 Vendas: (0xx51) 3489.8700 / 3489.8745 Assistência técnica: (0xx51) 3489.8903 Fax: (0xx51) 3489.1026 E-mail: vendas.acesso@digicon.com.br Branch office/ SP Development, Technical Assistance, and Sales Rua São Paulo, 82 - Alphaville. Barueri/SP CEP 06465-130 Fone: (0xx11) 3738.3500 Fax: (0xx11) 4191.2585 E-mail: vendas.acesso@digicon.com.br Home page: www.digicon.com.br...
