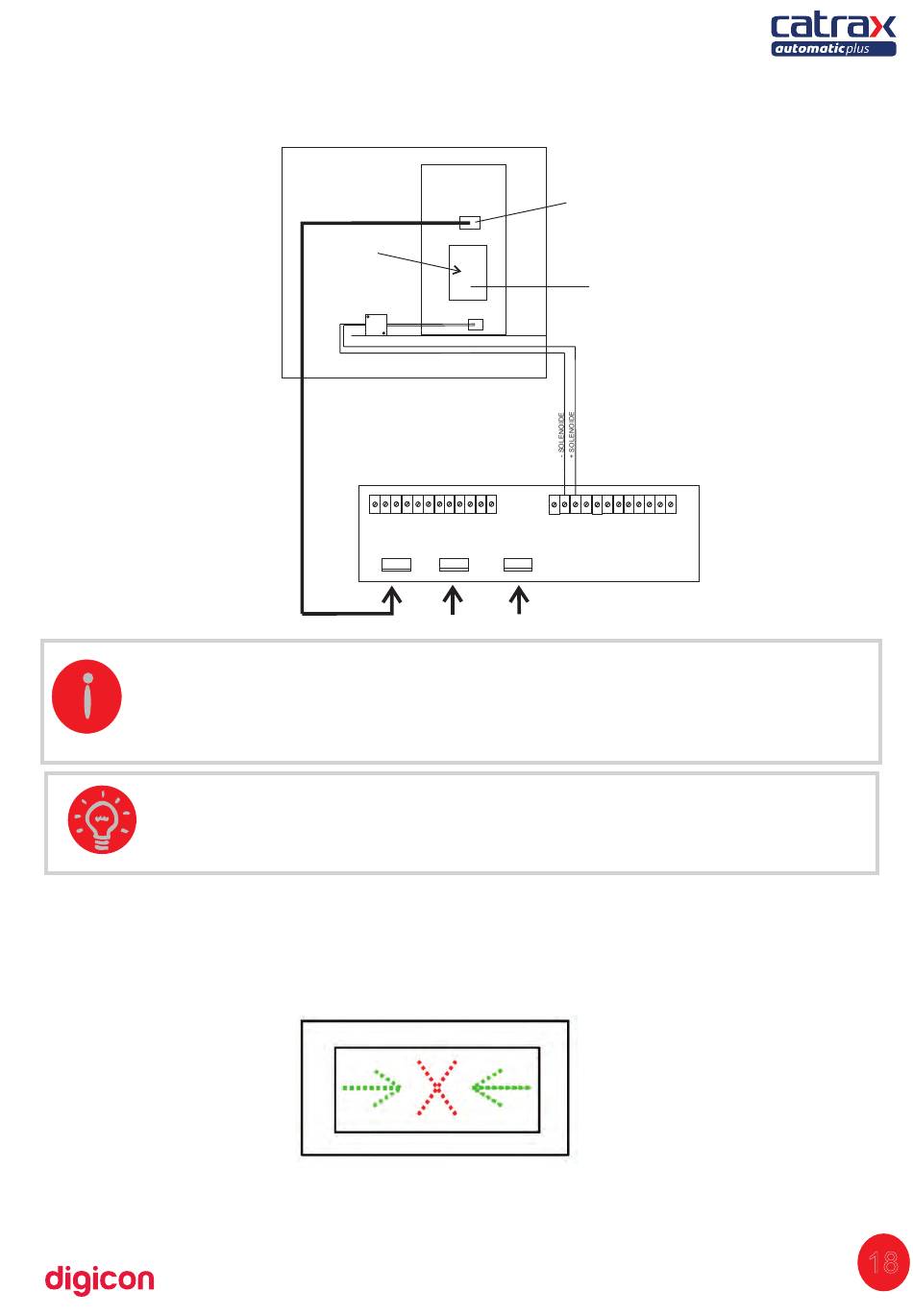

6.1.1 Connection of collecting kit to control board
INFORMATION:
-The box for cards is part of the kit and is positioned under the collecting kit.
- The badge reader is not part of the kit
TIP:
To obtain information on the configuration of the collecting kit, see item
6.5 Control board.
6.2 Pictograma Kit
The pictogram kit visually signals the direction of passage (green arrows) or the
blocking (red X).
To see the items that accompany the pictogram kit and details about its assembly, see
the product guide.
Your card reader (not
included in the kit)
SOLENOIDE
12 11 10 9 8 7 6 5 4 3 2 1
INPUTS CN8
DIGICON CONTROL BOARD
BOX SENSOR
ELECTROMAGNETS
Sensor used for
collecting the card after
1.5 seconds
For access
control board
12 11 10 9 8 7 6 5 4 3 2 1
OUTPUTS CN9
TURNSTILE SENSORS
