5.Installing/Assembling Catrax Automatic
Plus

5.1. Unboxing

As the items inside the package can vary (depending on the client's requests), it is
important to perform a cautious visual inspection before installing and assembling the
turnstile. A checklist that works as a guide during inspection accompanies all Digicon
packages.
ATTENTION: To avoid losses, the screws and the wrenches used for
assembling the CATRAX Automatic Plus are attached to the box containing
the arms. Before discarding the packing materials (cardboard and plastics),
make sure all the items in the checklist are accounted for.

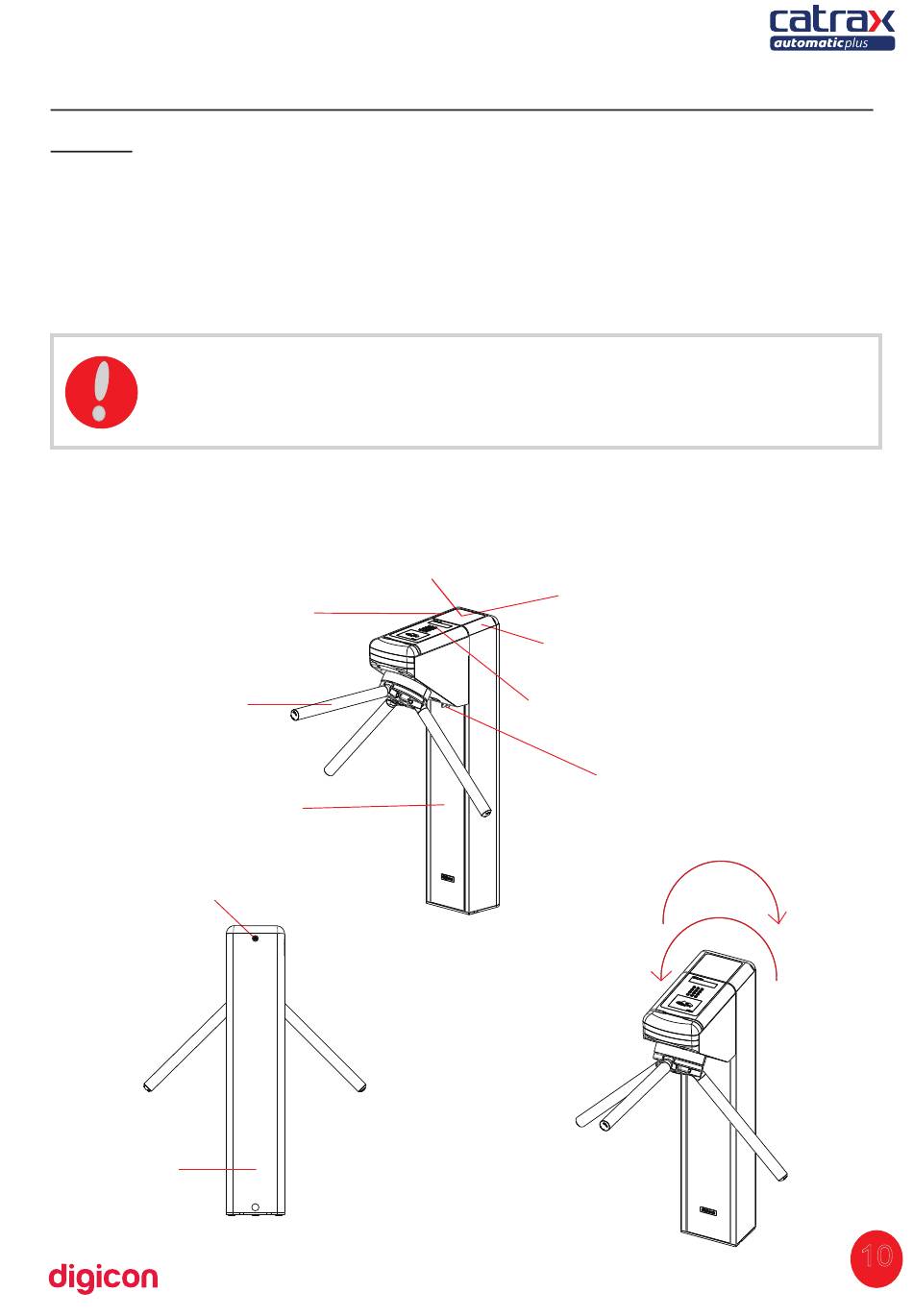

See below the parts that can compose CATRAX Automatic Plus:
Stainless steel
sheet (rear cover)
Column door
Lock to access
the column's rack
Lock to access the
cover for the pasage
of cables
Upper pictogram
kit (optional)
Arm
Collecting box
kit (optional)
Plastic cover kit
Stainless steel
sheet (front cover)
Lock to access the column
Bidirectional arms:
- From left right
- From right to left
