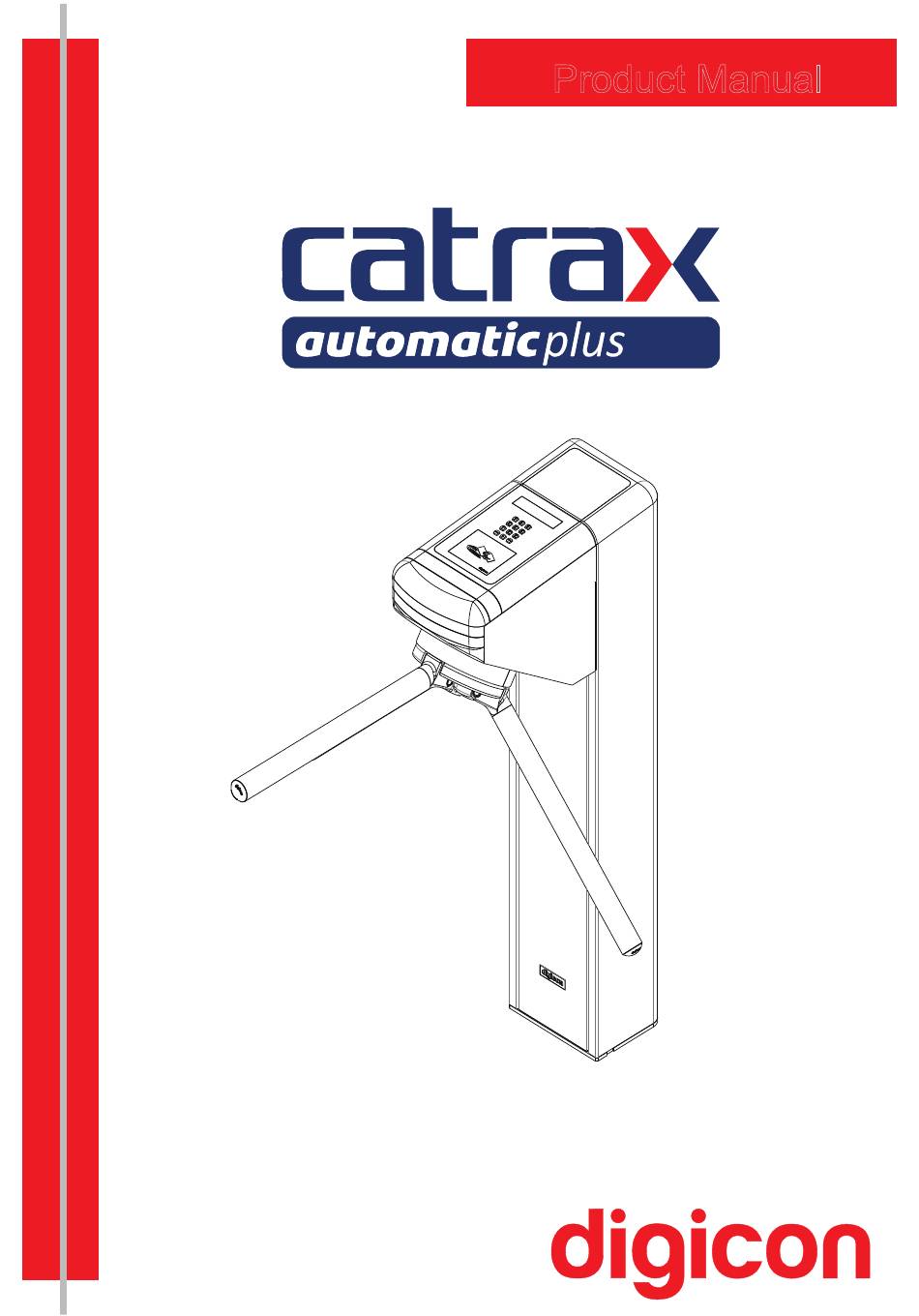

- Page 1 Product Manual...
- Page 3 Digicon S.A. Manual code: 069.31.237 English - Revision: 03 This manual was elaborated by: Digicon S.A. Controle Eletrônico para Mecânica Documentation Sector - EDS...
-
Page 4: Table Of Contents
5.1. Unboxing ..................5.2. floor drilling ..................5.3. Column fixation ................. 5.4. Assembling the arms ................. 5.5. Access to Catrax Automatic Plus after assembly ........5.5.1. Rear cover ..................5.5.2. Front cover ..................5.5.3. Column cover ................. 5.6. Connection to power network .............. -
Page 5: Important Instructions
You can see, below, the symbols that will appear in this manual, signaling important moments. It is essential to pay attention to them. TIP: Indicates something Digicon considers important. CAUTION: Indicates a moment of extreme caution when handling the equipment/product ATTENTION: Indicates a moment when your observation skills should be extremely productive. -
Page 6: Orientations
Keep this manual for future consultations. Ÿ Digicon reserves its right to alter its products at any moment to adapt them to more Ÿ recent technical advancements. Digicon maintains its right to alter the information contained in this manual without Ÿ... -
Page 7: Features Of Catrax Automatic Plus
4. Features of Automatic Master CATRAX Automatic Plus, an access controller in the model mini turnstile (column type), presents three bidirectional, equidistant arms at 120 degrees with brushed stainless steel (AISI 304) finishing. The column can present external finishing in brushed stainless steel (AISI 304) or 1020 carbon steel with electrostatic painting in black epoxy powder. - Page 8 Contactless card reader Card reader with slot for barcode Besides compatibility with most available technologies, Digicon can provide the following optional items: collecting kit with box, counter kit, power supply, MCA board, and display kit TIP: To see details about the components' dimensions, see 8. Technical...
-
Page 9: Catrax Automatic Plus Operation
If this signal is recognized, the equipment will allow the turning of the arm of CATRAX Automatic Plus. After half of the turning is complete (60 degrees), a 400 milliseconds returning signal will be sent, informing the passage direction. -
Page 10: Installing/Assembling Catrax Automatic Plus
As the items inside the package can vary (depending on the client's requests), it is important to perform a cautious visual inspection before installing and assembling the turnstile. A checklist that works as a guide during inspection accompanies all Digicon packages. -
Page 11: Floor Drilling
Automatic Plus column and the wall. This space is important in order to provide access to the upper panel and plug's locks for the cables passage. 5. If there will be enough space for the arms after CATRAX Automatic Plus is assembled. -
Page 12: Assembling The Arms
5.4 Montagem dos braços e tampas: After drilling the floor and assembling the column, it is possible to assemble the arms and plastic covers. The image below shows the specific parts of CATRAX Automatic Plus's arms and upper frontal cover with assembling instructions. Screw M3x8... - Page 13 Then, assemble the upper panel's rear cover. The image below shows the parts corresponding to each phase. Front Cover: Frontal plastic cover set Flat washer M3, spring washer M3 and hex nut M3 Front stainless steel sheet Rear cover: Rear stainless steel cover Collecting box’s socket kit Pictogram's acrylic...
-
Page 14: Access To Catrax Automatic Plus After Assembly
5.5 Access to Catrax Automatic Plus after assembly: After CATRAX Automatic Plus is installed and assembled, access to the interior of the equipment can be done with the key that accompanies the equipment, in three ways: 5.5.1 Rear cover 1º Open the lock with the smaller key (clockwise) 2º... -
Page 15: Column Cover
5.5.3 Column door 1º Open the lock with the smaller key (clockwise) 2º Pull the cover forward 3º The cover will be loose As shown below:... -
Page 16: Connection To Power Network
5.6 Connecting to power and data networks: The Turnstile is powered by a 24 Vcc supply (located inside the turnstile). The ower supply can be of 100 to 240 Vca. Digicon recommends the regulation NBR 5410 as reference to the equipment's electrical connections. -
Page 17: Installing/Assembling Optional Items
6.Installing/assembling optional tems CATRAX Automatic Plus is compatible with most access control technologies in the market today; however, Digicon offers a range of optional items that allow enhancing and matching the equipment's performance to the client's needs. See the description... -
Page 18: Connection Of Collecting Box Kit To Control Board
SOLENOIDE 12 11 10 9 8 7 6 5 4 3 2 1 12 11 10 9 8 7 6 5 4 3 2 1 OUTPUTS CN9 INPUTS CN8 DIGICON CONTROL BOARD TURNSTILE SENSORS BOX SENSOR ELECTROMAGNETS INFORMATION: -The box for cards is part of the kit and is positioned under the collecting kit. -
Page 19: Power Supply
6.3 Power Supply: Among the main advantages of this optional item, is its adaptation capability to the voltage variations often found in installation sites – the input voltage can vary between 100 and 240 Vca. The supply's specific technical features, protections and dimensions were carefully tested and approved in hostile temperature and environmental conditions, which ensures the adequate power supply to the equipment's performance. -
Page 20: Control Board
CATRAX Automatic Plus's control board was designed to meet most technologies of access control terminals in the market. The controller have mechanical features and layout perfectly suited for the CATRAX Automatic Plus's needs and it is one of the best options for the equipment's operation. - Page 21 Si nal /Descri ption BOX SENSOR LED anode Box signal JTAG - Inner use SERIAL RS - 232 2 TX 3 RX 5 GND ENGINE 1 DAT + 2 DAT - 3 GND_485 4 (+) 24V_EXT 5 GND POWER - POWER INPUT 1 (+) 24Vcc 2 GND 3 (+) 24Vcc...
- Page 22 ( ) ele ctromagnet 2 INFORMATION: - The engine (CN4) and electromagnets (CN18) cables are provided alongside CATRAX Automatic Plus. The following sections concern important aspects of CATRAX Automatic Plus's control board configuration and connections of CATRAX Automatic Plus.
-
Page 23: Inputs
6.5.1 Inputs The input signals or passage clearance (HAB1 and HAB2) or anti-panic (BQC) can be originated by a relay contact, pushbutton contact, tension from 5 to 24 Vca/cc, from 110 to 220 Vca/cc. To enable passage through relay contact or pushbutton, make the connection as shown below: NO or NC contact... -
Page 24: Outputs
6.5.2 Outputs CATRAX Automatic Plus's board has outputs for return signals, electromagnets, pictogram, collecting box, and sound alarm. 6.5.2.1 Return signals The control board has 4 return signals, two to indicate the moment, one to bob the turnstile, and one to indicate the anti-panic system's status. All signals are originated via relay –... -
Page 25: Sound Alarm
6.5.2.3 Sound alarm The sound alarm output is activated by a NPN transistor (maximum 500 mA) every time that CATRAX Automatic Plus: -receives a clearance signal (two short rings) -is not cleared and is forced during 1 second (1-second rings) -
Page 26: Pictogram
12 11 10 9 8 7 6 5 4 3 2 1 12 11 10 9 8 7 6 5 4 3 2 1 INPUTS CN8 OUTPUTS CN9 DIGICON CONTROL BOARD BOX SENSOR TURNSTILE SENSORS ELECTROMAGNETS 6.5.3.Configuration of control board - Switch Ds1 and Ds2... - Page 27 DIP SWITCH DS1 Habilita Sinal Sonoro Desabilita Sinal Sonoro Entradas NA Entradas NF Habilitação por Borda Habilitação por Nivel Trancada nos dois sentidos ON ON Trancada no sentido direita para esquerda OFF ON Trancada no sentido esquerda para direita ON OFF Liberada em ambos sentidos OFF OFF Habilita Sinal Sonoro na metada do giro...
-
Page 28: Anti-Panic System
6.6 Anti-panic system CATRAX Automatic Plus has an electromechanical device for anti-panic system (also called drop-arm device). The mechanism is composed by a mechanical set activated by high-performance solenoid, maintaining the arm raised during normal operation. In case of power outage (when the installation has no no-break), or through a... -
Page 29: Assembling The Arms
Repeat this operation in the three arms and make sure all of them are well fixed. INFORMATION: - The cover for accessing the screws is fitted into place for pening/closing - To assemble the arms of CATRAX Automatic Plus, use an Allen n.8 wrench. -
Page 30: Maintenance Test
Thus, as a preventive measure, we recommend regular tests and inspections in this device (at least once a month). If the mechanism presents any defect, request maintenance to a Digicon technician or a qualified company. Each inspection should carry out the following operational sequence for each of the three arms: set the arm on the horizontal position;... -
Page 31: Maintenance
2. if you see a gap between the sprocket and the axis/keyway set, replace the sprocket or the keyway (to replace the sprocket, use a pulley puller) ATTENTION: Preventive and corrective maintenance must be performed by a professional trained/qualified by Digicon S.A... -
Page 32: Defects And Possible Causes
7.2 Defects and possible causes Defect Possible causes Action · The power supply’ input cable is not connected · Check the cables and the fuse. Catrax Plus will not · properly; turn on · The circuit breaker is off. Catrax Plus is ·... -
Page 33: Technical Characteristics
8 Technical characteristics Dimensions: Catrax digicon www.catrax.com.br 1042 (41,023") (9,566") (17,440") - Page 34 INFORMATION: The measures in the images are given in milimeters Other informations: Gross weight: Approx. 40kg (package included) 120 degress Distance between arms Electromagnet’s power 24 V Input : 100 V a 240 V Power supply Output : 24,0 V cc +/- 5% 4,5 A Operational...
-
Page 35: Warranty And Technical Assistance
9 Warranty and technical assistance Digicon is responsible for the project, skilled labor, and quality of the materials used in the manufacturing of our products, ensuring that the equipment and all parts are free of manufacturing defects or problems. Digicon commits itself to replace or repair, as we choose, any part or equipment presenting manufacturing defects without any costs to the buyer, in our factory in Gravataí... - Page 37 Rua Nissin Castiel, 640 - Distrito Industrial. Gravataí/RS CEP 94045-420 Vendas: (0xx51) 3489.8700 / 3489.8745 Assistência técnica: (0xx51) 3489.8903 E-mail: vendas.acesso@digicon.com.br Filial/ SP Desenvolvimento, Assistência Técnica e Vendas Rua São Paulo, 82 - Alphaville. Barueri/SP CEP 06465-130 Fone: (0xx11) 3738.3500 E-mail: vendas.acesso@digicon.com.br Home page: www.digicon.com.br...
