6.5.2.5 Pictogram

The pictogram's outputs are activated by NPN transistors (maximum 500 mA) at
the moment of activation, the GND is sent through a corresponding output..

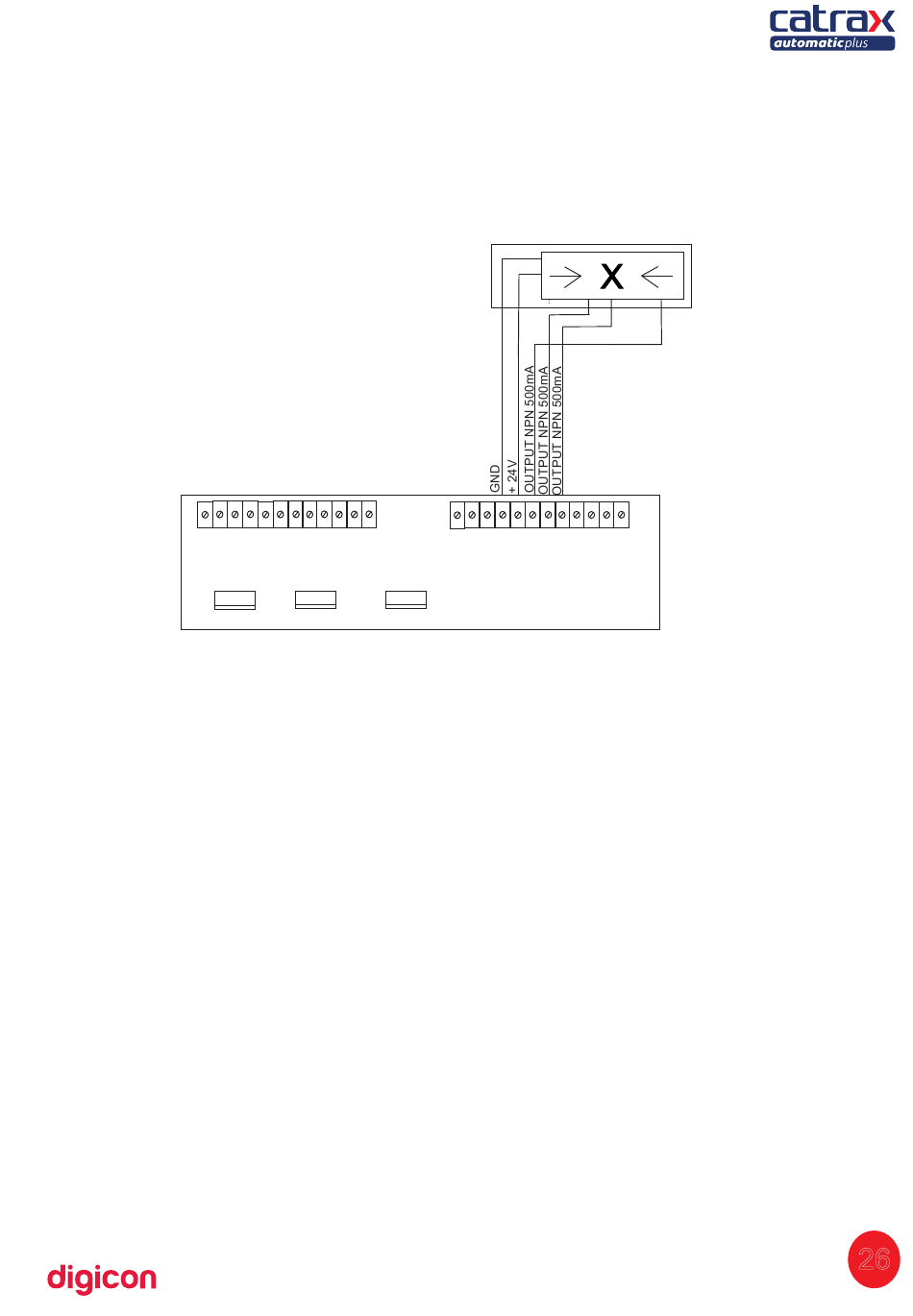

6.5.2.6 Pictogram's connections

PT
VM
AZ
LR
VD
12 11 10 9 8 7 6 5 4 3 2 1
12 11 10 9 8 7 6 5 4 3 2 1
INPUTS CN8 OUTPUTS CN9
DIGICON CONTROL BOARD
BOX SENSOR TURNSTILE SENSORS
ELECTROMAGNETS
6.5.3.Configuration of control board - Switch Ds1 and Ds2
The switch (or dipswitch) DS1 allows programming the following actions:
-passage direction
-Maximum time for turns
-NO inputs (relay or pushbutton contact normally open and without input voltage),
enabling passage in face of these signals; or NC inputs (relay or pushbutton contact
usually closed and with input voltage), enabling passage in the absence of these
signals.
-enabling of a signal for a sound alarm if the access control remains at mid turn for
more than 5 seconds.
To program DS1, put each pin in the desired position, according to the table below:
