6.5.2 Outputs

CATRAX Automatic Plus's board has outputs for return signals, electromagnets,
pictogram, collecting box, and sound alarm.
6.5.2.1 Return signals
The control board has 4 return signals, two to indicate the moment, one to bob the
turnstile, and one to indicate the anti-panic system's status. All signals are originated

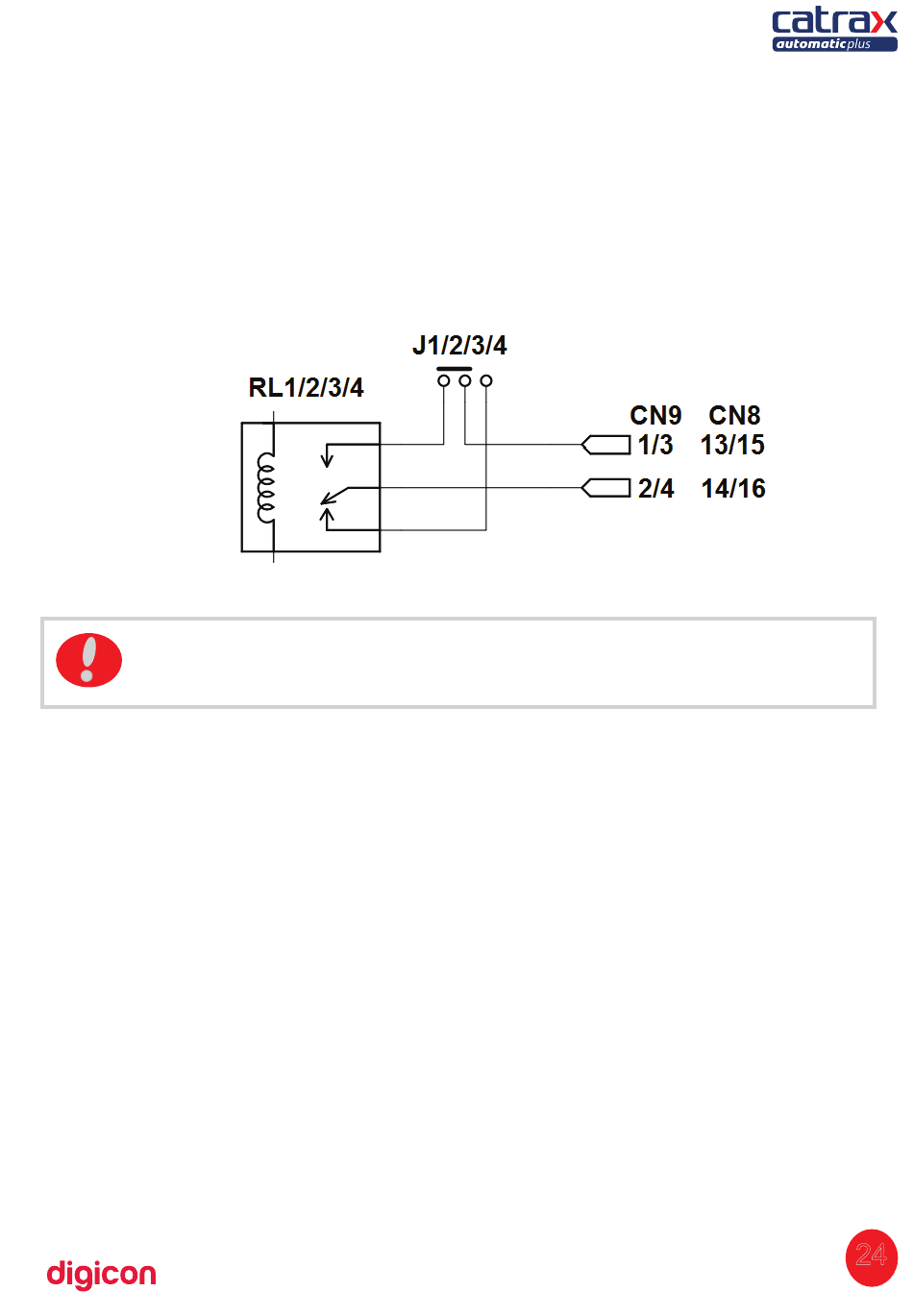

via relay – normally open contact (NO) or normally closed contact (NC). Connect the
outputs according to the image below:
ATTENTION: The relay contacts have maximum capacity of 1A 125 Vca

6.5.2.2 Electromagnets

Electromagnets are activated for blocking the turnstile. Opposite to the traditional
solenoids, electromagnets do not cause abrasion between the coil and the locking
device, avoiding malfunctions. Moreover, the activation is done through a transistor,
and not a relay, avoiding the electromagnet to be blown due to the "contact wielding"
(there is no mechanical wear).
