FT-70 Fill Level Inspector Service Manual

Aligning the Down Can Sensor

No.
1
2
3
4
4-14
The Down Can Sensor is mounted on separate brackets that are
attached on the bottom of the inspection head and aligned to the
head centerline.
Description
Sensor beam
Sensor Emitter
Sensor Receiver
Container Travel

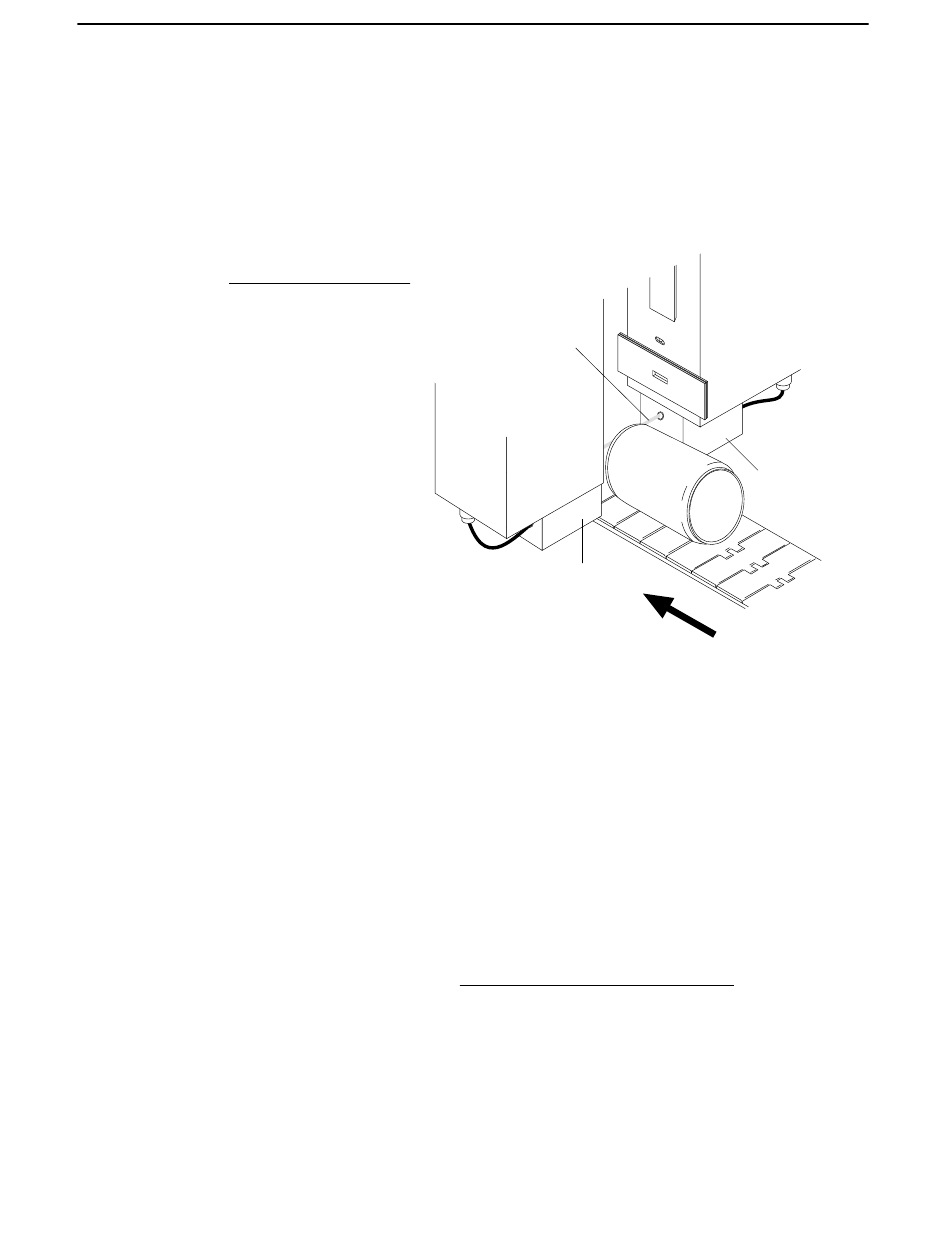

Figure 4-7. Aligning the Down Can Sensor.
1. The mounting brackets themselves are not adjustable, however
the sensor height can be adjusted by positioning it in the
proper mounting hole within the block.
2. To determine the proper sensor height, align fill level inpection
beam first (and perform Fill Level Optimization if needed) and
then refer to the
Drawing Pack
information in the drawing to determine the proper position for o
the sensor.
3. If you will not be performing further alignment procedures,
turn on the Safety Interlock Switch to reactivte the X-ray
Generator. See Chapter 5: The Safety Interlock Switch.
1
3
FT-50 and FT-70 Installation and Service
to locate the drawing of your bracket. Use the
Drawing Can Sizes
26796 8, 12, 16 oz.
32293 8 , 10,12, 16, 24 oz.
Industrial Dynamics Company, Ltd. © 40256-0600
2
4
